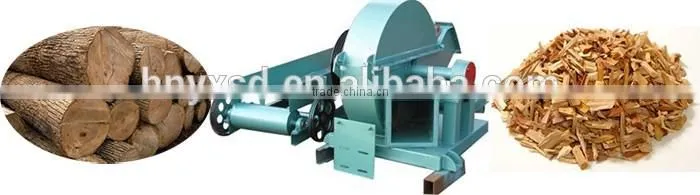

New type electric sawdust wood chipper price
Introduction:
The Wood Chipper is used to cut trees, wood material or other wood material to small chips for further using.It is mainly used for processing pine, hardwood, poplar, fir, raw bamboo, branches, grass, straw and other fibrous materials. Widely used in papermaking, MDF, fiberboard, particle board, sawdust board, mushroom, cultivation, wood particles, the mechanism of charcoal, boiler gas furnace combustion, etc...
SD500 Specification :
Model |
500 |
600 |
700 |
800 |
900 |
1000 |
Cutter diameter(mm) |
450 |
600 |
650 |
750 |
850 |
950 |
Blade number(pcs) |
4 |
4 |
4-6 |
4-6 |
4-6 |
4-6 |
Blade length(mm) |
100 |
150 |
200 |
230 |
260 |
300 |
Input sizer(mm) |
180×200 |
200×200 |
200x250 |
250x300 |
300x400 |
400x500 |
Spindle speed(r/min) |
2600 |
2500 |
2500 |
2300 |
2000 |
2000 |
Motor power(kw) |
7.5 |
11 |
15 |
22 |
37 |
45 |
Diesel (horsepower) |
15 |
20 |
28 |
32 |
45 |
55 |
Capacity(t/h) |
0.3-0.6 |
0.6-0.8 |
0.8-1.5 |
1.5-3 |
3-4 |
4-8 |
output size(mm) |
14-20 |
14-20 |
14-20 |
14-20 |
14-20 |
14-20 |
Weight(t) |
0.8 |
1.2 |
2 |
2.8 |
3.5 |
4.5 |
Working Principle of wood chipper machine:
The Wood Chipper uses the blade cutting and high-speed airflow impact, collision and double crushing function in a body, and can finish the material sorting processing operations at the same time. It has the screen mesh in the bottom, mesh size can be adjusted according to user requirements to change the final output size.
Raw material of wood chipper machine:
small diameter wood,timber harvesting(such as branches,twigs,etc.), processing residues(such as branches,twigs,planks,log cores,waste veneer,etc.), it can also be used for cutting non-wood materials(such as sugar cane,reed,bamboo,etc.)
Main features of wood chipper machine:
1.Flexible adaptability
The design of wood chipper machine avoids the application fluctuating. It is suitable for many different conditions, will not be influenced by weather and other external conditions.
2.Time saving
The drum wood chipper machine can be put into production directly, which will save much time.
3.Cost saving
The wood chipper machine has large capacity and works reliably, just need one or two persons to operate the machine.
4.Good chipping effect
It can be used to chip many different kinds of raw materials, meanwhile the output wood chips can be adjustable.
The whole set of drum chipper mainly is composed of three parts: wood log feeding structure, wood chipper machine, and wood chips discharging structure.
Application of wood chips:
mulch, composting material, fuel, walkways, decor, play area surface, erosion control......
Introduction:
Henan Yuxinsenda Heavy industry Machinery Co.,Ltd. is an international enterprise which experts on manufacturer, R&D and sales of stone crusher, power making machine, tile making machine, brick making machine, ore beneficiation machines and other machines. We have achieved CE& ISO9001:2008 Quality Management Certificate and obtained import and export rights since our foundation. Our products have been exported to more than 60 countries, such as Sigapore, Canada, Vietnam, north Korea, Middle east, afric, etc. And they earned a good reputation among our customers.
Workshop:
Customer Visit:
We are manufacturer and can design machines according to your requirements.
Welcome to visit our factory !Welcome to inquiry !
The products should be processed to be rustproof delivery. After package, the goods are suitable for land and sea transportation.
1. Are you a factory?
Yes, we are a professional manufacture to supply you kinds of machinery. Such as:stone crusher,tile making machine, brick making machine, food making machine, and so on.
2. How long of the warranty?
100% brand new when leaving the factory. The seller guarantee quality of the machines for a period of one year from the date of trial run finish, but not to exceed 13 months from date of Bill of Lading.
3. Do you have any engineers oversea available?
Once we make the order successfully, we will send our engineers to help you installation and debug if the customer need.
