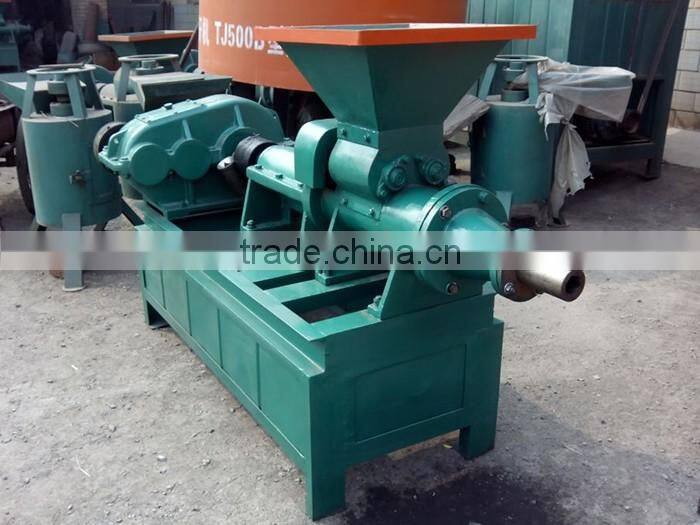

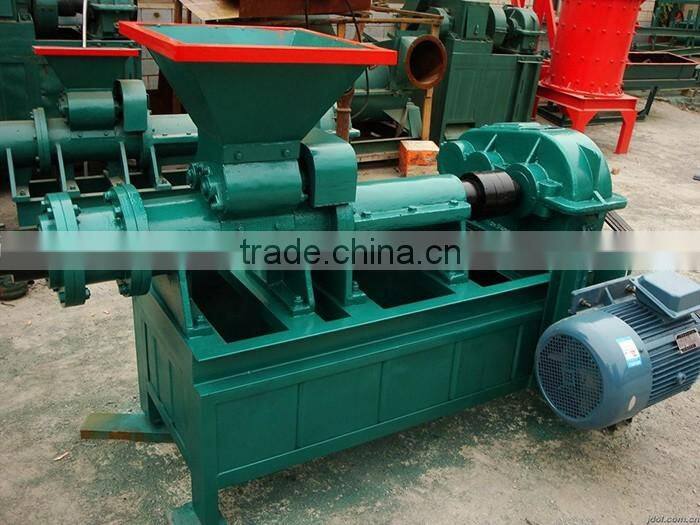

Best sell wood charcoal briquette making machine
Introduction of briquette machine
This SD-100 briquette machine is also called coal charcoal extruder machine and coal bar briquette machine, using extruding method to process the coal powder and charcoal powder into stick or bar and ball shape briquettes. If you use this machine to make charcoal briquettes, the best way is to carbonize the biomass materials first, and then crushing and mixing the charcoal powder with binder, and put the mixed powder into our this charcoal machine. The outlet briquettes can be used for BBQ, cooking, shisha smoking,burning for stove, etc.
Specification of briquette machine:
Model |
Power |
Inlet size |
Capacity |
Outlet diameter |
Dimension |
SD-50 |
15 kw |
≤ 5mm |
180-220 kg/h |
50-80mm |
1700x660x1500mm |
SD-80 |
18.5 kw |
≤ 5mm |
280-350 kg/h |
50-80mm |
1700x800x1300mm |
SD-100 |
22 kw |
≤ 5mm |
350-400 kg/h |
50-80mm |
1800x700x1500mm |
Working principle of briquette machine:
This series of SD-100briquette machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll, Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball or bar.
Features
1. Products are widely used
The outlet briquettes has the features of high density, small volume, good flammability, which can take place of fuel wood and coal.
2.Various Products Shape

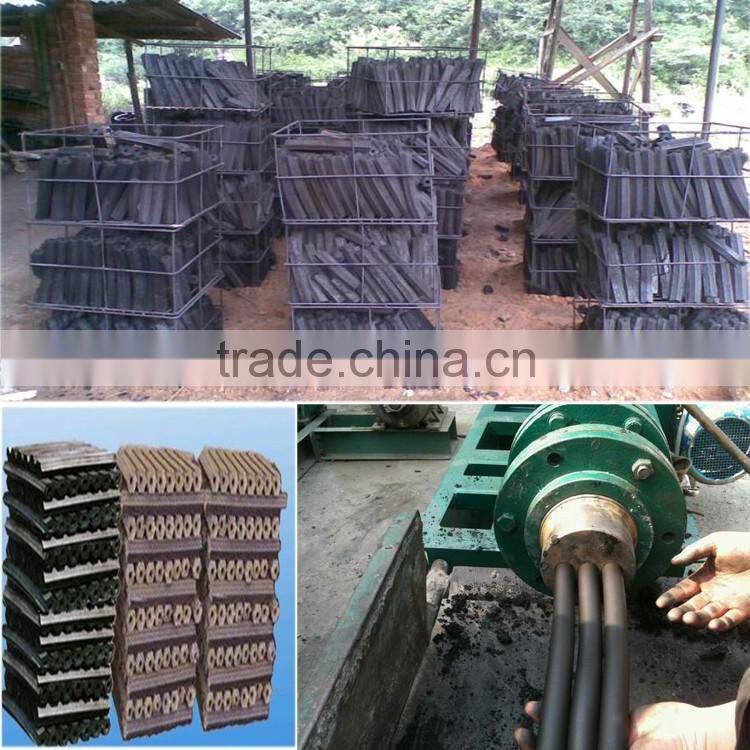

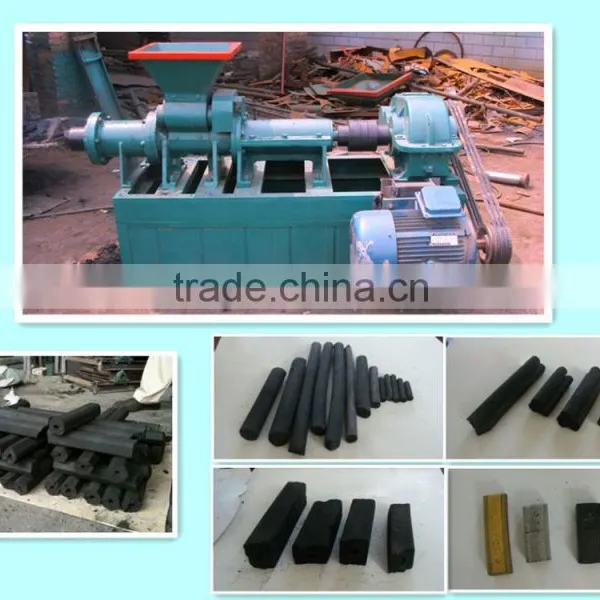

The common diameter of sawdust briquettes is 50-80mm, and the length can be 15-80cm.The shape can be square, rectangular, round with a hole in the center.
3. Spare Parts Durable
The spare parts of our sawdust briquette machine have been improved quality which are durable and long time using.
4. High capacity
The machine is high capacity, low energy consumption, compact and durable.
The process for producing charcoal briquette
1. Crush the raw material into small pieces (diameter is about 3-5mm)
2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3. Put the material into feed of briquette machine
4. Produce the briquette stick from biomass material without any additive
4. Carbonized the briquette stick
The products should be processed to be rustproof delivery.
After package, the goods are suitable for land and sea transportation.
1. Pre-sale support
We can enable them to get rich and generous returns on their investments:
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients.
2.Services during the sale
We respect clients and always devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
clients to draft solving plans.
3.After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
4.Technological support
Our company insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance. Our company is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support.
Introduction:
Henan Yuxinsenda Heavy industry Machinery Co.,Ltd. is an international enterprise which experts on manufacturer, R&D and sales of stone crusher, power making machine, tile making machine, brick making machine, ore beneficiation machines and other machines. We have achieved CE& ISO9001:2008 Quality Management Certificate and obtained import and export rights since our foundation. Our products have been exported to more than 60 countries, such as Sigapore, Canada, Vietnam, north Korea, Middle east, afric, etc. And they earned a good reputation among our customers.
Workshop:
Customer Visit:
We are manufacturer and can design machines according to your requirements.
Welcome to visit our factory !Welcome to inquiry !
1. Are you a factory?
Yes, we are a professional manufacture to supply you kinds of machinery. Such as:stone crusher,tile making machine, brick making machine, food making machine, and so on.
2. How long the warranty is?
100% brand new product when leaving the factory. The seller guarantee is one year from the date of trial run finish, but not to exceed 13 months from date of Bill of Lading.
3. Do you have any engineers oversea available?
Once we make the order successfully, we send our engineers to help you installation and debug if needed.
