Multifuctional Forage Cutters/ Multifunctional Forage Choppers Multifunctional Silage Crop Cutters Multifunctional Hay Cutters Multifunctional Slage Harvesters Multi Crop Mechanical Threshers, Millet Thresher, Sorghum Thresher,Napier Grass Chopper
The FC series fodder chopper is a result of agricultural mechanization with many years of experience in chopping and ensiling process. It is well-know for high safety protection, superior steel structure, multi-choice on power supply, reliable performance and favorable price.
Before the fodder chopper is delivered to customer we put different warning stickers on fodder chopper’s in order to protect the operator, and the safety running rules are remarked in the manual.
Main Characteristic
1.Entire steel structure, small & light, easy portable
2.Special device to ensure the safety on operating
3.The grass roller adopts cross shaft, has the advantage of compact structure, running agility, simple installing
4.Multi-choice on power, motor, diesel engine and tractor are ok. It especial suit for the electric scarce area
5.The blade adopts high quality steel, through special technology processing, it is Super Wear-Resistant and fixed by high strength bolt to ensure the safety when running
6.High performance-cost ratio
Application
alfalfa, oats, wheat, cotton stalk, bark, straw wheat, barley, jowar, elephant grass, napier grass, meker grass, carter grass, forage, hay, straw, squeezed sugar cane and beet top

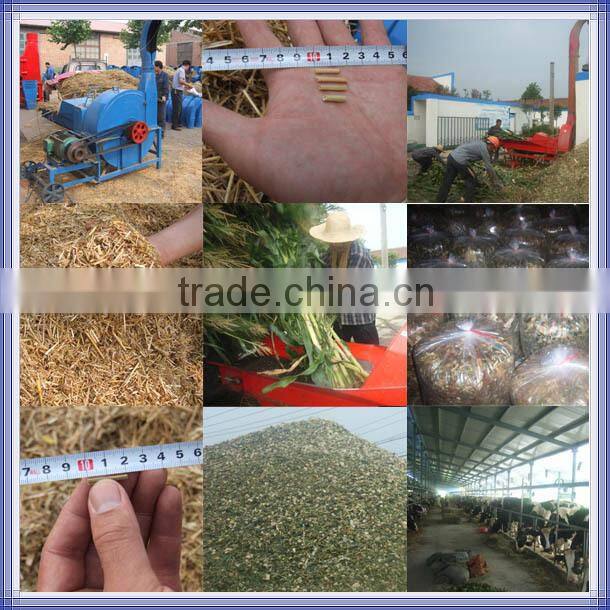

Chopping Scene
Multi-optional Drive Method
To satisfy rural area farmers, we provide multi-choice on power supply, electrical motor, diesel engine and PTO shaft. Customer should notice the power supply type when ordering our machine, the PTO shaft user should tell us the number of spline.
Technical Data
Model FC-0.4 forage chopper
Power:1.5kw/220AC/50HZ/1 Phase/ 2900rpm
Capacity: 0.4-1.3T/hr
Shaft speed: 1250rpm
Weight: 75kgs
Packing size: 953×344×800mm
Configuration for Each Model
|
Model Specification |
FC-0.4 |
FC-2.5 |
FC-4C |
FC-6A |
FC-9A |
Capacity(TPH) |
0.4 |
1-4 |
2-8 |
3-15 |
3-20 |
Motor(KW) |
4 |
4 |
5.5 |
7.5 |
15 |
Diesel(HP) |
≥8 |
≥8 |
≥12 |
≥15 |
≥28 |
Size(MM) |
1150×1230×1695 |
1150×1230×1695 |
1020×1520×2756 |
1968×2147×2756 |
2620×2140×3390 |
Weight(KG) |
165 |
165 |
310 |
450 |
910 |
Chain conveyer |
× |
× |
√ |
√ |
√ |
Feed rollers |
× |
× |
√ |
√ |
√ |
Tractor linkage device |
√ |
√ |
× |
× |
× |
Diesel mounting |
∞ |
∞ |
∞ |
∞ |
∞ |
Pneumatic tire |
× |
× |
× |
∞ |
∞ |
√: standard device ∞: optional device ×:unavailable device | |||||
Manufacturing Scene
Customer Visiting
Shipping
