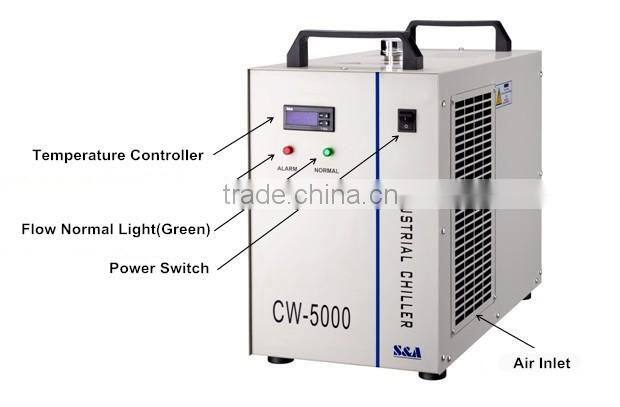

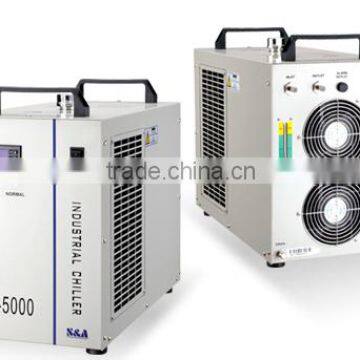

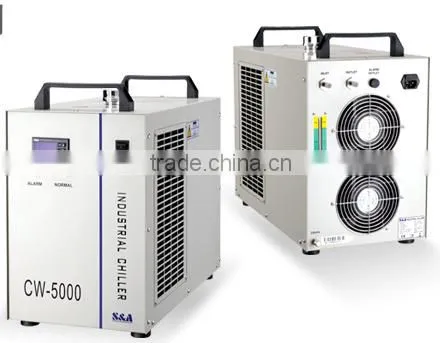

A&S CW5000 chiller for high power laser tube cooling
Voltage |
220V |
Frequency |
50Hz |
Current |
1.4~2.1A |
Compressor power |
0.295KW |
0.40HP | |
Refrigeration capacity |
2361Btu/h |
0.692KW | |
595Kcal/h | |
Refrigerant |
R-134a |
Refrigerant charge |
300g |
Precision |
±0.3℃ |
Reducer |
Capillary |
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
Pump power |
0.03KW |
Tank capacity |
6L |
Inlet and outlet |
External Ø 10mm brass connector |
Max. lift |
10 M |
Max. flow |
10 L/min |
N.W |
24 Kgs |
G.W |
27 Kgs |
Dimension |
58 x 29 x 47 cm (L x W x H) |
Package dimension |
70 x 43 x 58 cm (L x W x H) |
Features
1. 800W cooling capacity; use environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.3℃ precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied
occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection,
water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE approval;RoHS approval.
Carton for one set, plywood box for quantity
