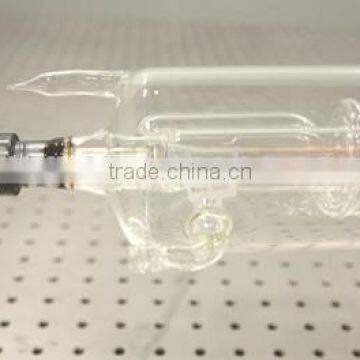

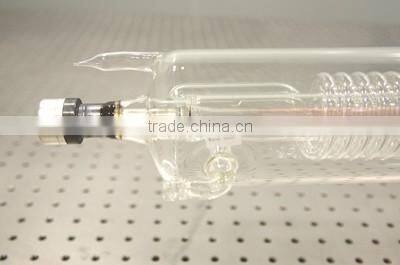

RECI S4 100W glass Co2 laser tube price
Model |
Rated power |
Max power |
Length mm |
Ø mm |
Catalyze |
Life span (h) |
Warranty |
S4 |
100W |
130W |
1400 |
80 |
YES |
10,000 |
10 Months |
DESCRIPBTION |
N.W. |
G.W. |
PACKAGE/UNIT |
C.W. |
S4 |
4KG |
7KG |
1550*340*350 mm |
36.9KG |
1.Operation conditions
Water cooling: using purified water; 3 to 5 liter/minute; water temperature: 10℃-40℃.
The operating environment: temperature 2-40℃; humidity 10-60%.
The working current: test current is 30mA. Maximum working current is 30mA. The running current must be kept below 28mA. The life span can reach 10,000 hours if the current is kept below 26mA.
The ammeter must be connected to the negative electrode of laser tube.When it is working under over-high current for long term, the negative pole will appear brown yellow and the life span will be shortened
rapidly.To protect dust from going into the insulation sheath, please wrap it with plastic film.
2.Working Performance
Cutting function.Engraving function: Very good. When the working current is 4mA and the tube is in the state of preionization, the laser can be used for high-frequency impulse engraving.
Pour out cooling fluid in the event of storage and transportation, and cover the output terminal with a dust-proof plastic bag. The storage environment is 2-40℃, and the requested humidity is 10-60%.
Pack the laser as in the original way.
It's use adhesive tape to cement the sponge together with laser tube to prevent the tube from vertically
sliding during transportation. The sponge in the side of output mirror must be 70 mm beyond it, and the
sponge in the side of reflecting mirror must be 50 mm wider.
Working Life: 10,000 hours
Warranty: 10 months
