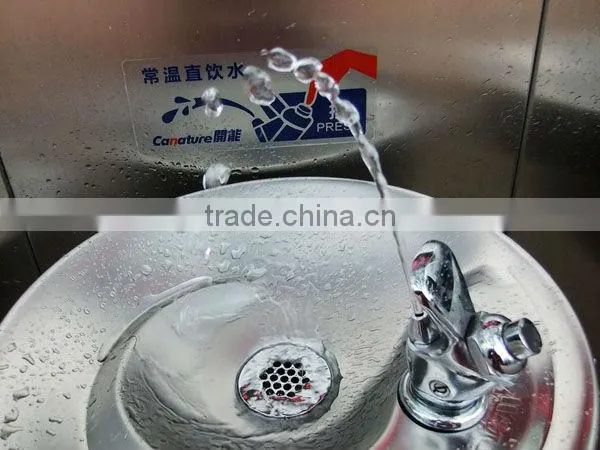

BUBBLER VALVE/table top fountain

FEATURES & BENEFITS

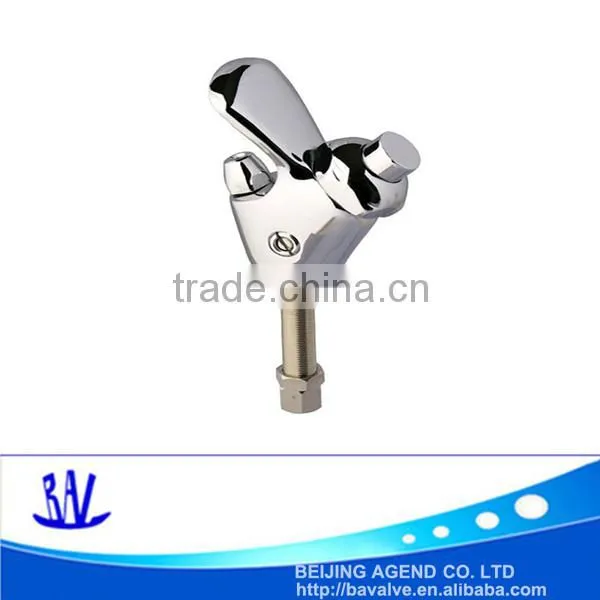

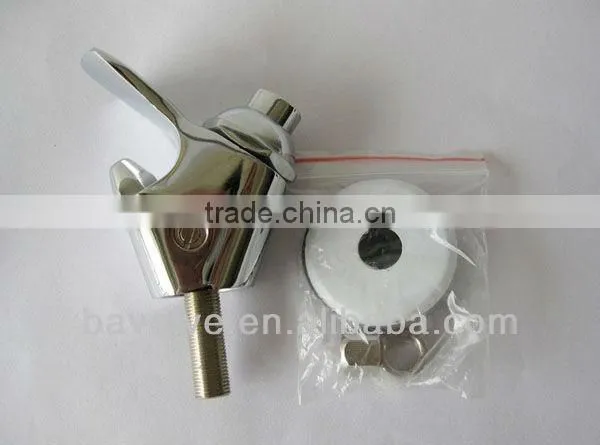

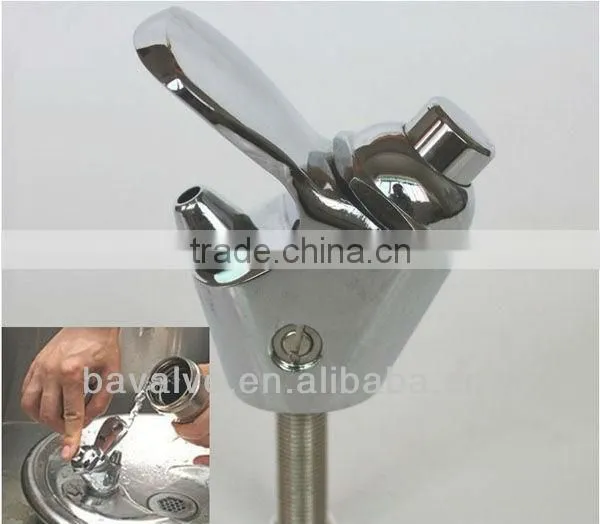

BUBBLER VALVE
Polished stainless steel cartridge valve which allows for top access stream adjustment as well as cartridge and strainer access,

and is designed with a shielded, anti-squirt orifice that provides a steady sanitary source of water.

SPECIFICATIONS
Model 5010SS is a polished stainless steel push button bubbler valve with pressure compensating adjustable stream regulation and shielded sanitary nozzle design.

APPLICATIONS

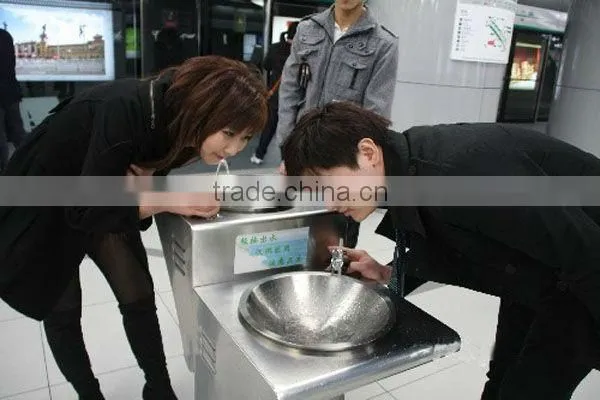

Perfect for either public or private indoor settings, the valve is a great fit in areas where a sink is present. Specifically,this type of vertically mounted drinking faucet may be placed in settings such as: school classrooms, laboratories, and other facilities where the need for a deck mounted sink/faucet is present. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, NSF/ANSI 372,California Proposition 65,and the Federal Safe Drinking Water Act.

NOTES:

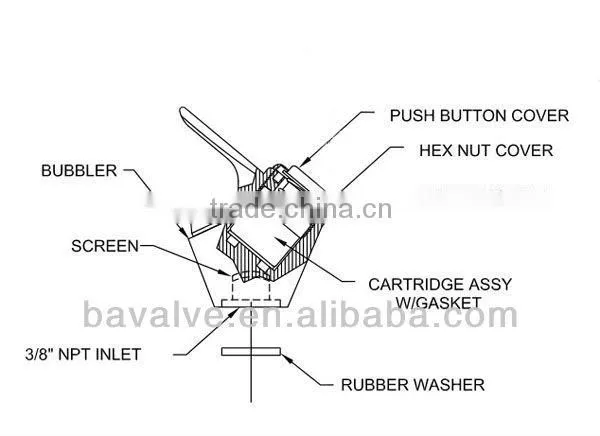

TO ADJUST FLOW:
1.REMOVE HEX NUT COVER AND PUSH BUTTON COVER.
2.ADJUST WITH SCREWDRIVER:CLOCKWISE TO INCREASE FLOW&COUNTER-CLOCK WISE TO DECREASE FLOW.
3.IF DESIRED FLOW IS NOT OBTAINED,CLEAN SCREEN AT INLET.
4.REPLACE PUSH BUTTON COVER AND HEX NUT COVER.
