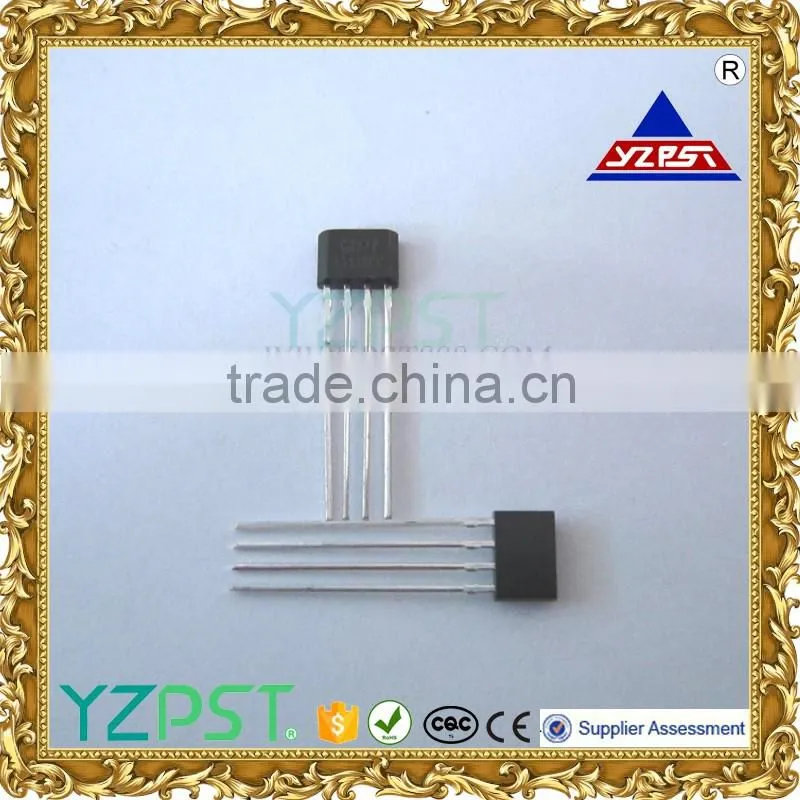

CR277 2PHASE DC MOTOR DRIVER
CR277
1.GeneralDescription
CR277 are integrated Hall sensors with output drivers, mainly designed for electronic commutation of brush-less DC Fan. This IC internally includes the regulator, protecting diode, Hall plate, amplifier, comparator, and a pair of complementary open-collector outputs (DO, DOB).

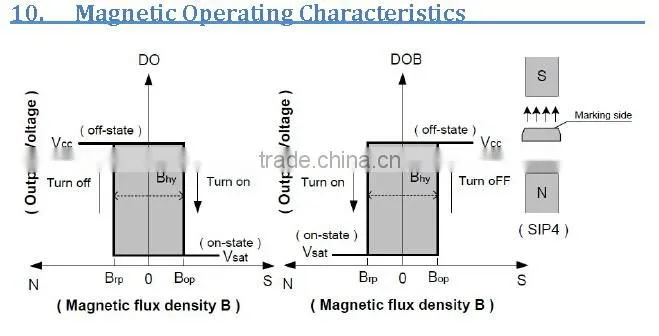

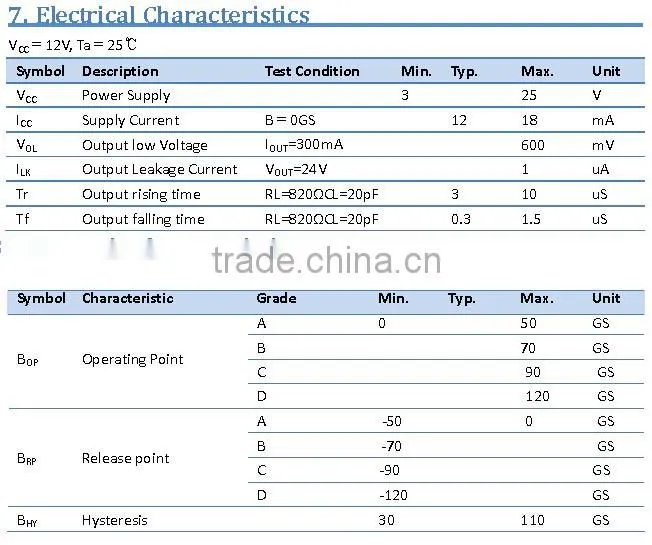

While the magnetic flux density (B) is larger than operate point (Bop), DO will turn on (low), and meanwhile DOB will turn off (high). Each output is latched until B is
lower than release point(Brp), and then DO,DOBtransfer each state. For DC fan
application, sometimes need to test power reverse connection condition. Internal diode only protects chip-side but not for coil-side. If necessary, add one external diode to block the reverse current from coil-side.

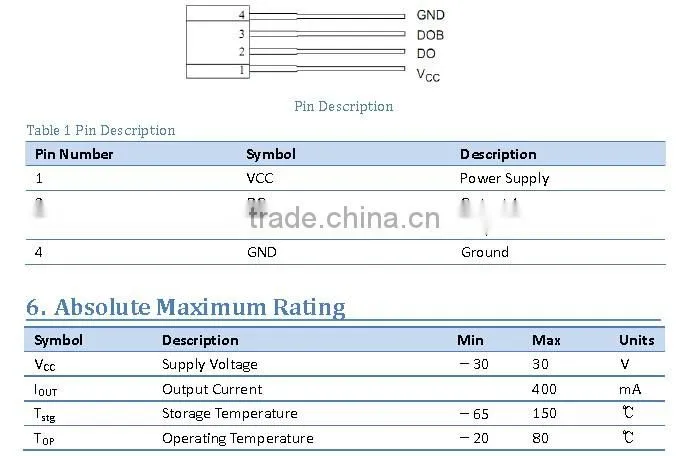

2.Features
„ On-chip Hall sensor with two different sensitivity and hysteresis settings
„ 3.5V to 20Voperating voltage
„ -20℃ to 85℃ operating temperature
„ Build-in protecting diode only for chip reverse power connecting
„ 300mA (avg) output sink current

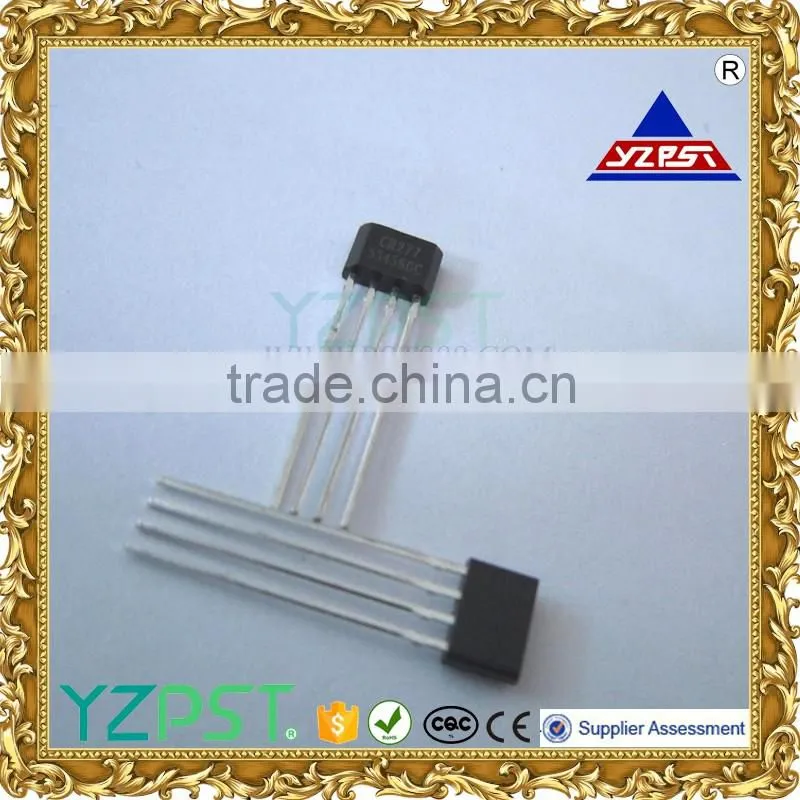

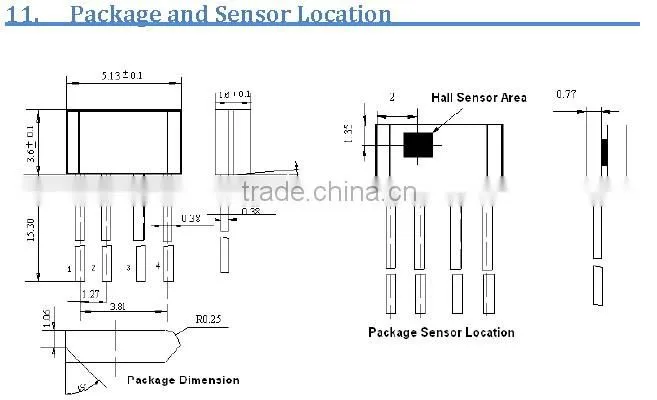

„ Low profile 4 pin SIP package
3.Applications
„ Dual-coil Brush-less DC Motor
„ Dual-coil Brush-less DC Fan
„ Revolution Counting
„ Speed Measurement
