Home > Electrical & Electronics > Electronic Tube & Transistor > Rectifier Diode > All Diffused Structure Thyristor KP1000A1800V

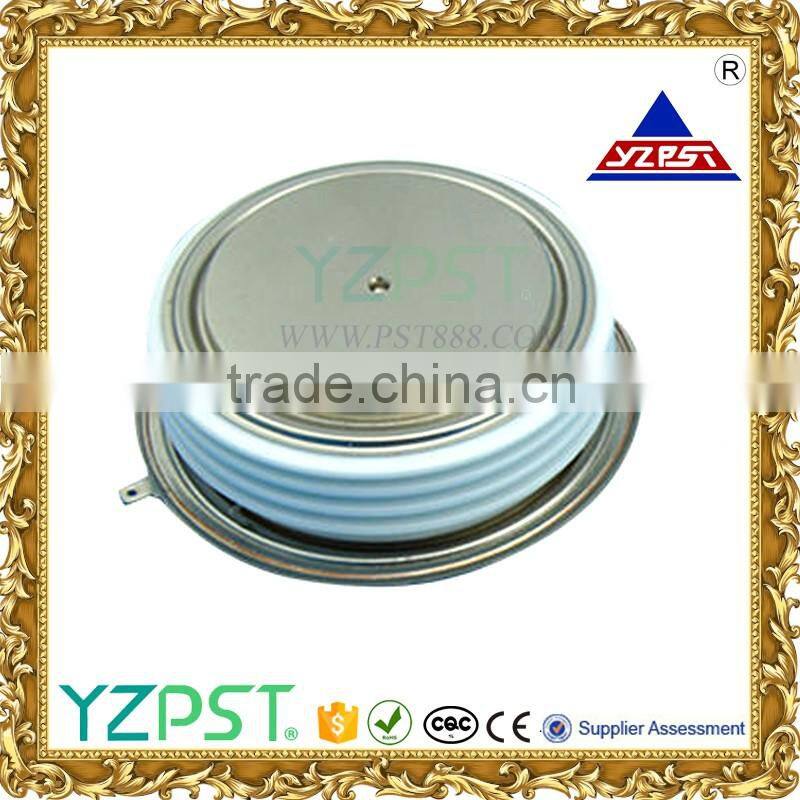

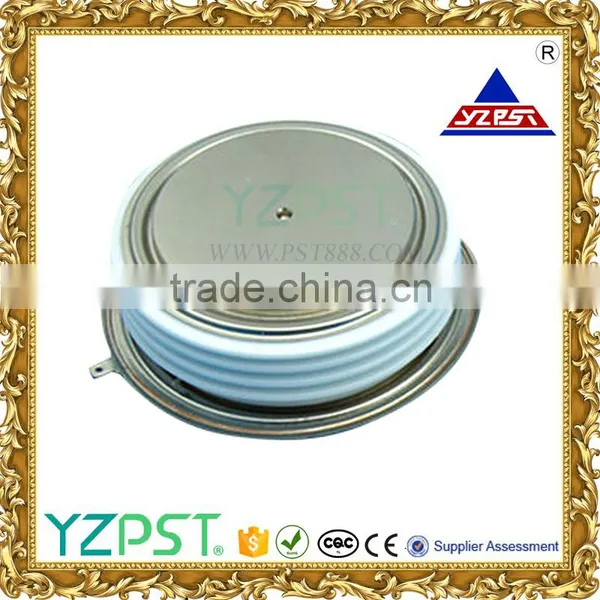

All Diffused Structure Thyristor KP1000A1800V

Name: All Diffused Structure Thyristor KP1000A1800V
Brand: YZPST
SKU: 117324601
Availability: InStock

All Diffused Structure Thyristor KP1000A1800V thumbnail-1

All Diffused Structure Thyristor KP1000A1800V photo-1

US$ 66 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

YZPST

Model Number:

KP1000A1800V/3

Contact Supplier Request Quote Chat Now

Yangzhou Positioning Tech. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name YZPST

Model Number KP1000A1800V/3

Phase Control Thyristors

KP1000A1800V

Product Description

Symbol	Definition	Conditions		min.	typ.	max.	Unit
V	max. non-repetitive reverse/forward blocking voltage		T_J = 25°C			1900	V
V	max. repetitive reverse/forward blocking voltage		T_J = 25°C			1800	V
V_T	On-state voltage	I_T=2200 A	T_J = 25°C			1.85	V
I_T(AV)	average forward current	T_C=25°C				1000	A
I_T(RMS)	RMS forward current	180° sine				2300	A
R_thJC	thermal resistance junction to case						K/W
R_thCH	thermal resistance case to heatsink						K/W
R_thJK	thermal resistance junction to heatsink					0.024	K/W
I_TSM	max. forward surge current	t = 10 ms; (50 Hz), sine	T_J = 25°C			12.1	kA
I²t	value for fusing	t = 10 ms; (50 Hz), sine	T_J = 25°C			732	kA²s
di/dt	Rate of rise of on-state current	T_J = 125°C; f = 50 Hz t_P=200µs;di_G/dt=0.15A/µs; I_G=0.15A;V_D= 2/3 V_DRM	repetitive			200	A/µs
di/dt	Rate of rise of on-state current		non-repet			400	A/µs
dv/dt	Maximum linear rate of rise of off-state voltage	V_D= 2/3V_DRM R_GK =∞; method 1 (linear voltage rise)	T_J = 125°C			200	V/µs
V_GT	gate trigger voltage	V_D = 6V	T_J = 25°C			3.0	V
I_GT	gate trigger current	V_D = 6V	T_J = 25°C			300	mA
I_L	latching current		T_J = 25°C				A
I_H	holding current		T_J = 25°C			500	mA
t_gd	gate controlled delay time		T_J= 25°C		1.0	1.5	µs
t_q	Turn-off time	V_R=10 V; I_T=20A; V_D= 2/3 V_DRM	T_J = 150°C		600	650	µs
T_stg	storage temperature			-40		125	°C
T_J	virtual junction temperature			-40		125	°C
W_t	Weight						g
F	mounting force			19		29	kN

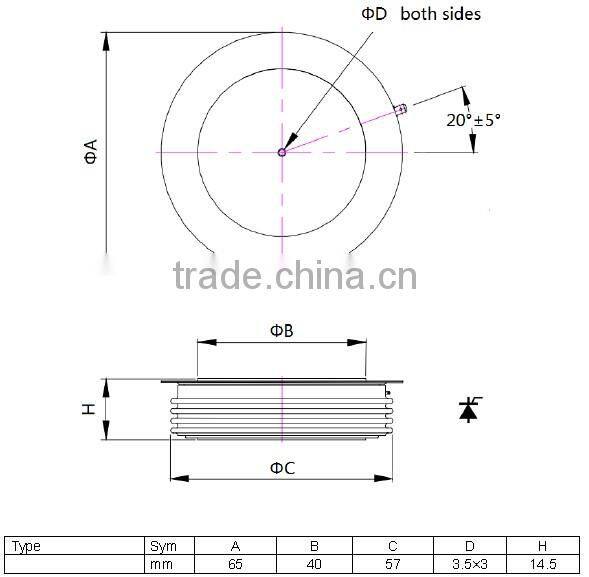

Outline Drawing
