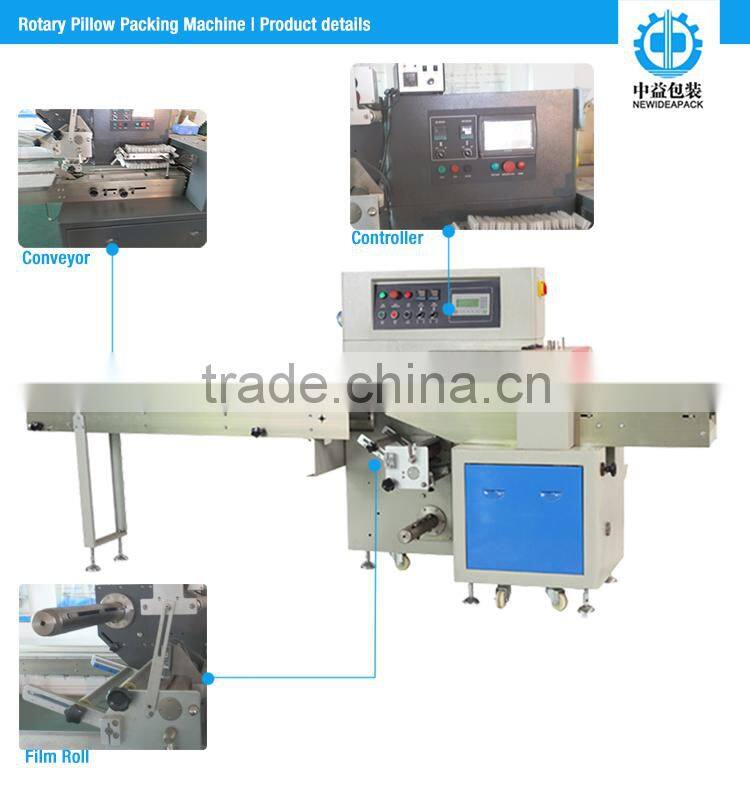

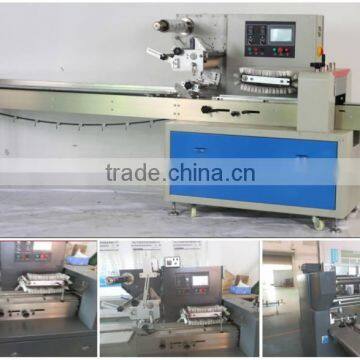

Factory ND-250X/350X/450X horizontal cup packing machine
Main feature:
1.Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting position for estra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function adjusting and technical upgrade.
Technical paratemer:
Model |
ND-250X |
ND-350X |
ND-450X |
Film width |
Max.250mm |
Max.350mm |
Max.450mm |
Bag length |
65-190mm 120-280mm |
90-220mm 150-330mm |
90-220mm 150-330mm |
Bag width |
30-110mm |
30-160mm |
MAX210mm |
Product height |
Max.40mm |
Max.70mm |
Max.70mm |
Film roll diameter |
Max.320mm |
Max.320mm |
Max.320mm |
Packaging rate |
40-230 bags/min |
40-230 bags/min |
40-230 bags/min |
Power |
220V,50/60Hz,2.4Kw |
220V,50/60Hz,2.4Kw |
220V,50/60Hz,2.4Kw |
|
Machine size(L*W*H) |
3770*670*1320mm |
3770*670*1320mm |
3770*670*1320mm |
Machine weight |
480Kg |
550Kg |
680Kg |
Application:
Packaging various kings of reguar objects like biscuits, pies, chocolates, bread, instant noodles, moon-cakes, drugs, daily appliances, industrial parts, paper boxes, plates, lollipop,etc.
Bag sealing type and bag sample:
back sealing,vertical sealing.
Optional fiting components:
| Code printer | Bag former | Vaccum feeder | Z shape bucket elevator | Single bucket elevator | Slantingl elevator |
| Screw elevator | Finished products conveyor | Continous bag equipment | Preheat double layer hopper | Stirrer | Inflation valve device |
| Hole punching device | Air expeller | Oscillator | Rotating disk | Metal detector | Weight checker |

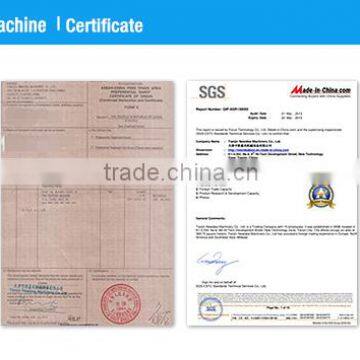

Certifications:

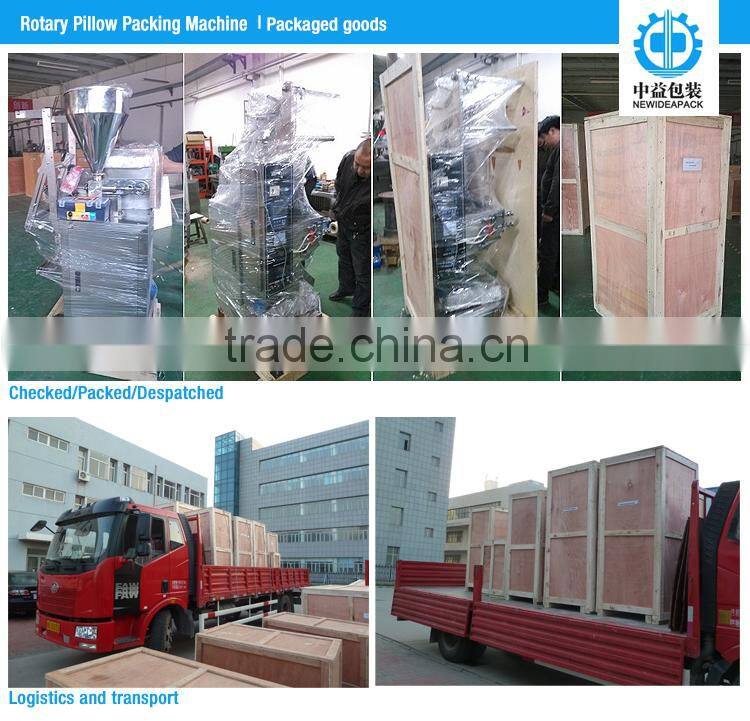

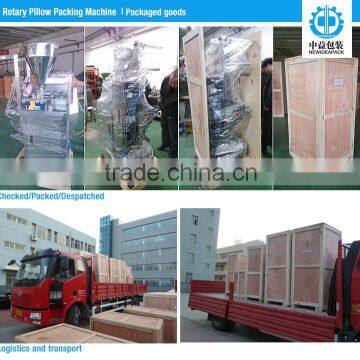

Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Transportation solutions
Air freight, Ocean freight, land freight and other ways.
1. 9 years manufacture experience,strong R&D department. Overseas engineer services available.
2. One year guarantee time,lifelong free service,24 hours online service.
3. We promise machine keep working over 10 years in good working condition.Few easy broken parts,easy to change.
4. Intelligent PLC control system,easy operate,more humanization.
5. Exported to more than 1000 customers from more than 50 countries.
6. OEM,ODM and customized service.
7. CE, ISO, SASO, SGS, CIQ certificates.
8. We guarantee the quality for one year, Lifetime free service, 24-hour online service.
.
Newidea is still developing, and the products are also being innovated. Welcome our old and new customers to visit our factory and make the consultation.We will provide professional packaging solutions for you.
Technological process:
2. Before we deliver machine, we have set all information according to your bag information, and we do the fatigue tests two days, in this time, we open the machine for testing all the time to make sure our machine is perfect.
3. If you still don't know how to do, you can contact me at any time, we have 24-hours after-services for our all customers.
4. We can arrange our engineer to your compony to teach your works if you need, we have eight USA customers, we can be the way to visit our these old customers
How to choose most suitble machine?
In order to offer you most suitble packing machine and reasonable price, I need confirm below bag information to choose mahcine size, and offer you our experience to help you expanding your market:
1. What material do you pack, granule, powder, paste, liquid, or tea?
2. Bag weight(grams or milliliter)?
3. Bag length and bag width?
4. Bag sealing type---4 sides sealing, 3 sides sealing, back/pillow sealing type or vertical bag ?
1. for changing bag length, you just need adjust length value on the machine controller
2. for changing bag width, you need change another set bag former. one kind bag width correspond one bag former mode.
If you want to change bag weight?
Generally, one set machine can pack bags of different weight, but the changed weight at a certain weight range. If out of this range, then need change another set measuring systerm (such as volumetric cup, screw/auger feeder, piston pump and liquid pump), of course except multihead electric weigher.
