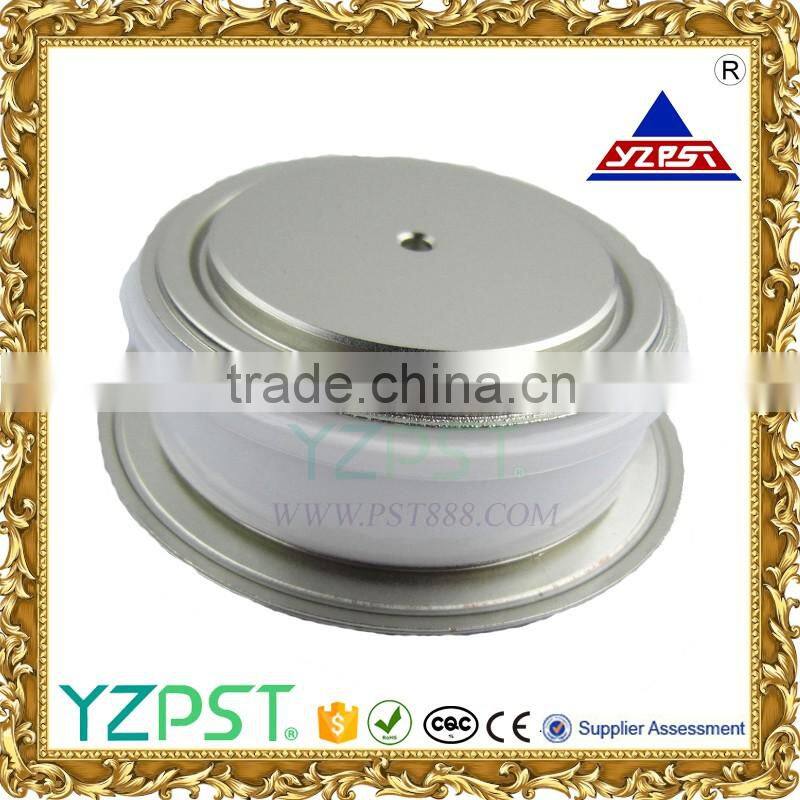

voltage rectifier 2700V PSTA801
- 100 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | YZPST | |
Model Number | PSTA801/2 | Type | Other, Standard Rectifier | |
Application | Inverter / Converter | Package Type | Surface Mount | |
Peak Repetitive Reverse Voltage | 2700V-3200V | Peak Non-Repetitive Reverse Voltage | 2800V-3300V | |
Dimensions | 109*98*73*35 mm |
Product Description

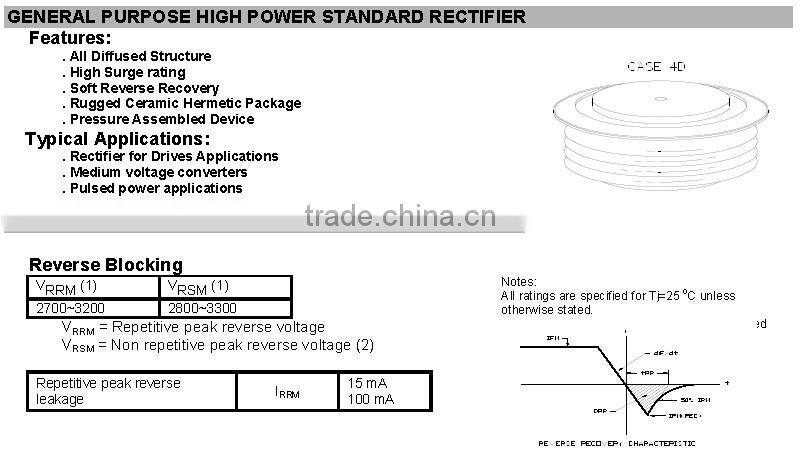

Standard Rectifier
PSTA801
Conducting - on state
Parameter | Symbol | Min | Max. | Typ | Units | Conditions |
Max. Average value of on-state current | IF(AV)M |
| 3900 |
| A | Sinewave,180oconduction,Tc=100oC |
RMS value of on-state current | IFRMS |
| 6100 |
| A | Nominal value |
Peak one cycle surge (non repetitive) current | IFSM |
| 60 |
| kA | Tj=160°C, VR=0,8VRRM, tp=10ms |
I square t | I2t |
| 14.9x103 |
| kA2s | 10 msec |
Peak on-state voltage | VFM |
| 1.05 |
| V | IFM = 2000 A; Tj = 160 oC |
Reverse Recovery Current (4) | IRM(REC) |
| 310 |
| A | IFM = 1000 A; dIF/dt = 10 A/ms, Tj = 160 oC |
Reverse Recovery Charge (4) | Qrr |
| - |
| mC |
|
Reverse Recovery Time (4) | tRR |
| - |
| ms |
|
* For guaranteed maximum values, contact factory
THERMAL AND MECHANICAL CHARACTERISTICS
Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
Operating temperature | Tj | -40 | +175 |
| oC |
|
Storage temperature | Tstg | -40 | +175 |
| oC |
|
Thermal resistance - junction to case | RQ (j-c) |
| 12 24 |
| oC/kW | Double sided cooled Single sided cooled |
Thermal resistance - case to sink | RQ (c-s) |
| 2 4 |
| oC/kW | Double sided cooled Single sided cooled |
Mounting force | P | 31 | 40 | - | kN |
|
Weight | W |
|
| 1.6 | kg | About |
* Mounting surfaces smooth, flat and greased

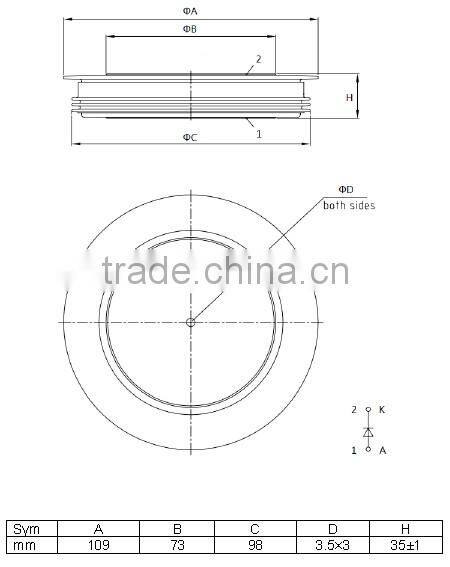

CASE OUTLINE AND DIMENSIONS
