Feature
*The third quadrant sensitine trigger structure ,
The best match for commutating ability and gate sensitivity .
*Diffusion and glass passivated technology.
Ensure specification reliability and uniformity.
*Match the appropriate gate specification as high temperature requirement.
Main application
*Washing machine vacuum cleaner dimmer. remote switch .
*AC motor control equipment.
*Switching inductive load.

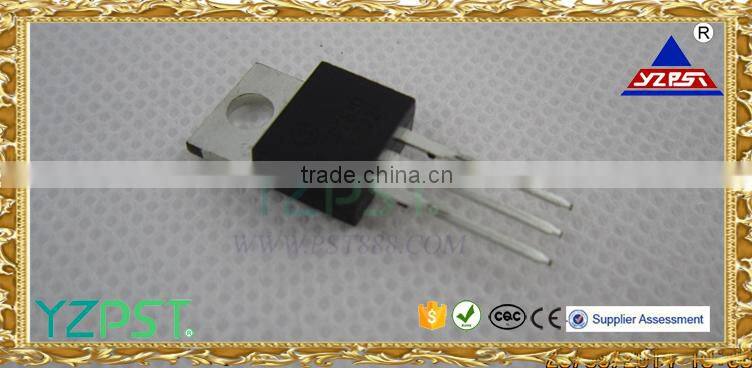

Outline and pin array
TO-220
Rate value (unless special shows , Tj=25℃)
Description | symbol | value | unit |
Repetitive peak off-state voltage (Tj= −40 ~125℃) Half sine wave 50Hz, gate open
04-600 04-800 | VDRM VRRM |
600 800 | V |
Nominal RMS on-state current Full sine wave 50 Hz | IT(RMS) | 4 | A |
Non-repetitive peak surge current (junction temperature Tj =25℃) One cycle 50 Hz | ITSM | 35 | A |
Fuse current (t = 8.3 ms) | I2t | 6 | A2s |
Gate average power (TC = 80℃, t = 8.3 ms) | PG(AV) | 0.5 | W |
Gate peak current (t≤2.0μs) | IGM | 4 | A |
Work junction temperature | TJ | -40~125 | ℃ |
Storage temperature | Tstg | -40~150 | ℃ |
Thermal characteristics
Description | Symbol | Max | Unit |
Thermal resistance ( junction to around ) | Rj A | 75 | °C/W |
