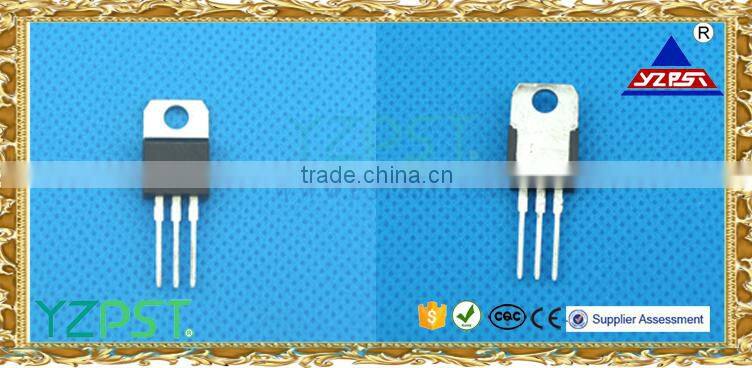

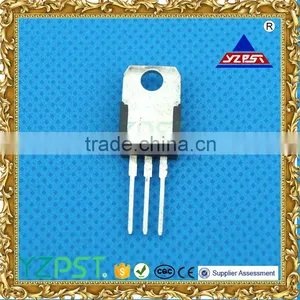

25A Triac BTA24-600C
Product specification
25A TRIACS BTA/BTB24-600C
GENERAL DESCRIPTION
Available either in through-hole or surface-mount packages, the BTA/BTB24 - 600C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or forphase control operation in light dimmers, motor speed controllers, ...
The snubberless versions (BTA/BTB...W series) are specially recommended for use on
inductive loads, thanks to their high commutation performances. By using an internal ceramic pad,
the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards.
ABSOLUTE MAXIMUM RATINGS ( Ta = 25 OC)
PARAMETER | Symbol | Value | Unit |
Repetitive peak off-state voltages |
VDRM |
600 |
V |
peak off-state reverse voltages |
VRRM |
600 |
V |
RMS on-state current | IT |
25.0 |
A |
Non-repetitive peak on-state current |
ITSM |
260 |
A |
Max. Operating Junction Temperature | Tj |
110 |
℃ |
Storage Temperature | Tstg |
-45~150 |
℃ |
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items are defective, please notify us within 3 days of delivery.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. We can ship to you by FedEx/UPS/DHL/TNT/EMS/HK Post. Please contact us directly and we will use your preferred ways.
5. We are not responsible for any accidents, delays or other issues caused by the forwarder.
6. Any import fees or charges are on the buyer's account
1. With regard to your inquiry and quotation of products, we will give you the detailed reply within 24 hours.
2.we provide warranty for all the goods from us.
3. We're in this field more than 13 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
4. We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
5. The price of sending samples is the same. We quate FOB price. You need to bear the freight after it boarded the ship freight.
NAME :John Chang AND Sam Zhou
SKYPE: yzforever0313
TEL: 0086-514-87782298 87782296
FAX: 0086-514-87782297
URL:WWW.YZPST. CC/ WWW.PST888.COM
ADD: Room303 Weiheng Building NO.184 Wangyue RD Yangzhou Jiangsu, China
All emails will be replied within 24 hours. Please leave a message in the Trade Manager. Thank you for ordering and hope you enjoy your purchase here. You commen ts are always welcomed and very important in our long-term business corporation.
We sincerely hope to cooperate with you.For more details, please contact me!
