Help CenterThyristor Module 3600V
Related Products
THYRISTOR-THYRISTOR MODULE
MTC500A-3600V
Feature : Typical application:
* Chip and backplane electrical insulation * Inverter welding machine
* over-current capability * DC power supplier
* Standard package * soft starting capacitor
Datasheet:
TYPE |
CONDITION |
VALUE |
UNIT |
VDRM |
VDSM= VDRM+100V |
3600 |
V |
VRRM |
VRSM= VRRM+100V |
3600 |
V |
IDRM |
125℃, VDM=VDRM |
300 |
mA |
IRRM |
125℃, VRM=VRRM |
300 |
mA |
IT(AV) |
180°,half sin wave,50Hz,TC=75℃ |
500 |
A |
VTM |
25℃,ITM=1500A |
2.9 |
V |
IGT |
25℃,VA=12V,IA=1A |
≤300 |
mA |
VGT |
25℃,VA=12V,IA=1A |
≤3.0 |
V |
VISO |
25℃ |
4200 |
V |
Tjm |
|
125 |
℃ |
Tstg |
|
-40~125 |
℃ |

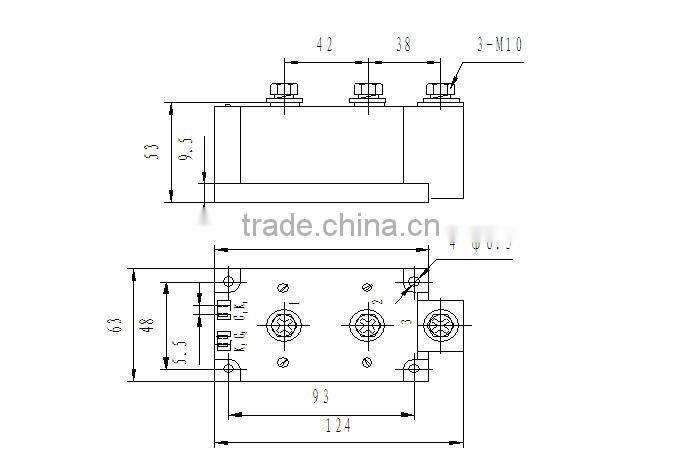

Outline:
CIRCUIT CONFIGUATION:
