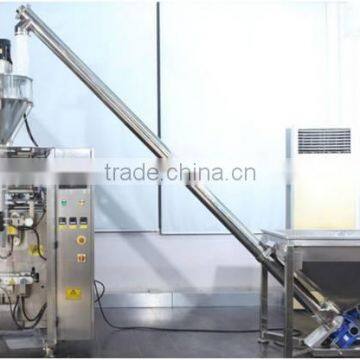

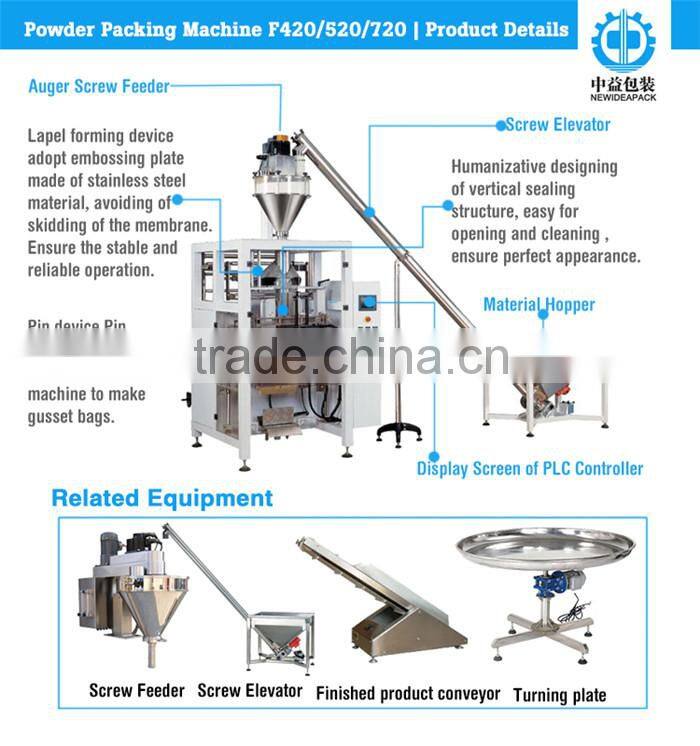

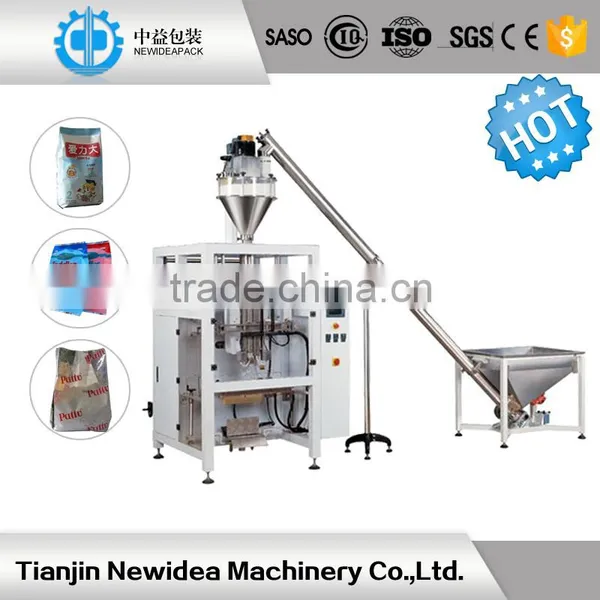

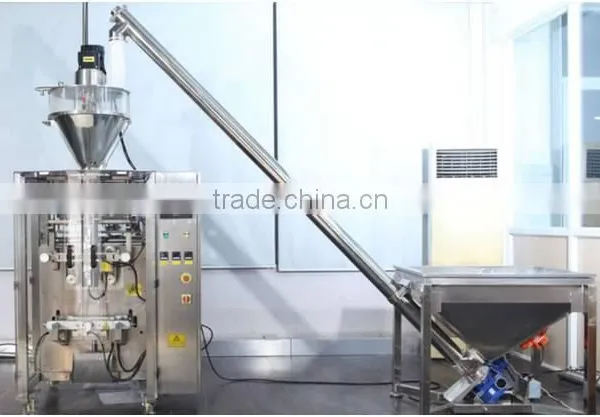

ND-F420 powder thermal flexible packaging printing machine
Main feature:
1. Siemens PLC control with stable and reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, and finished in one operation.
2. Separate circuit boxes for pneumatic control and power control.Noise is low,and the circuit is more stable
3. Filmpulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance; belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicety.
5. External film releasing mechanism: simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple.
7. Close down type mechanism, defending powder into inside of machine.
8. The machine adopt servo motor control, screw measuring , precision 1%.
9. Adjustment product weight without any tools.
10. Filling head can be changed, suitable for mix film and PE film.
Technical paratemer:
Type | ND-F420 |
Bag length | 50-300mm |
Bag width | 50-200mm |
Max width of roll film | 420mm |
Packing speed | 5-70bags/min |
Measuring range | 100-1200ml |
Air consumption | 0.65mpa |
Gas consumption | 0.3m³/min |
Power voltage | 220V/50/60HZ |
Power | 2.2KW |
Dimension | 1470×1160×1450mm |
Machine weight | 500Kg |
Application:
It is suitable for widely suitable for food, medicine, chemical industry, such as food additive, milk powder, bean powder, coffee powder, tea powder, instant powder, flour powder, starch, medical powder, and cosmetic powder etc.

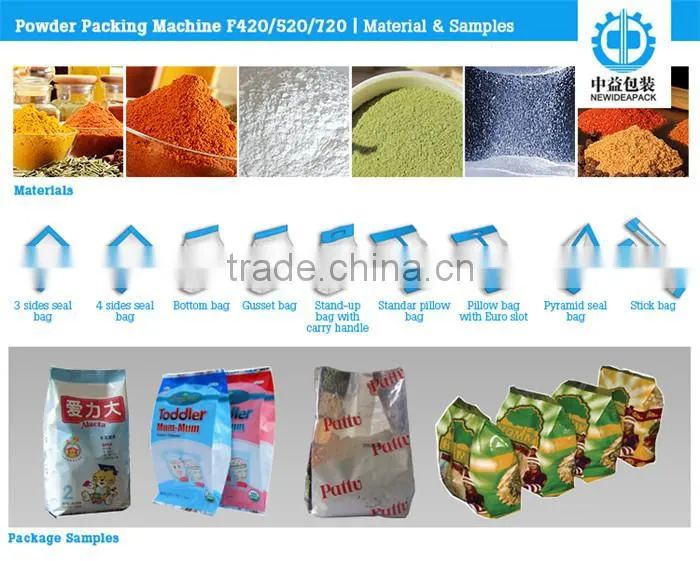

Bag sealing type and bag sample:
back sealing bag, pillow bag,pouch bag.
Optional fiting components:
| Code printer | Bag former | Vaccum feeder | Z shape bucket elevator | Single bucket elevator | Slantingl elevator |
| Screw elevator | Finished products conveyor | Continous bag equipment | Preheat double layer hopper | Stirrer | Inflation valve device |
| Hole punching device | Air expeller | Oscillator | Rotating disk | Metal detector | Weight checker |
Certifications:

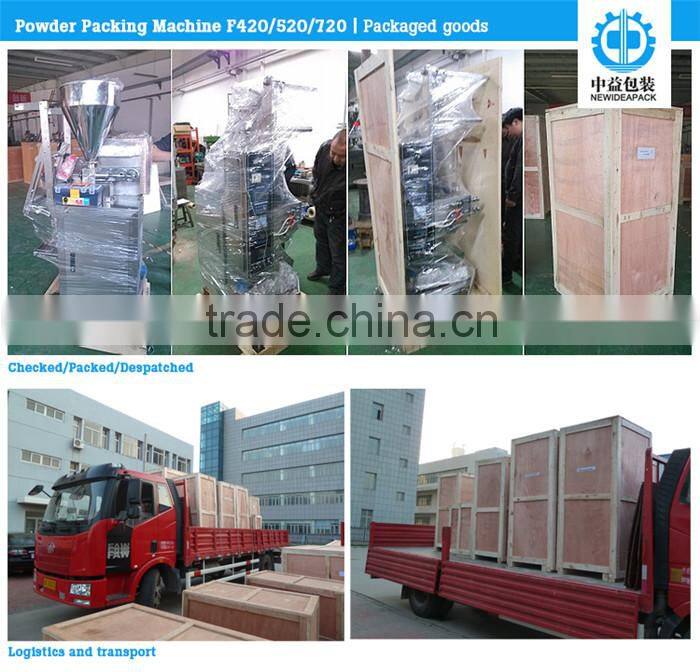

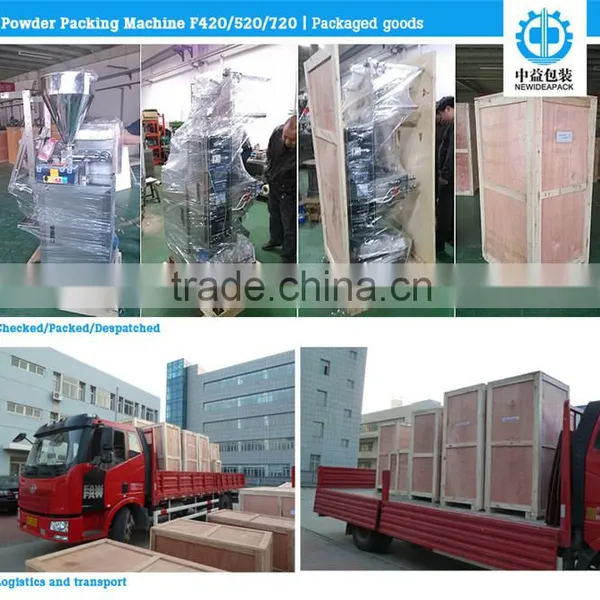

Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Transportation solutions
Air freight, Ocean freight, land freight and other ways.
1. 9 years manufacture experience,strong R&D department. Overseas engineer services available.
2. One year guarantee time,lifelong free service,24 hours online service.
3. We promise machine keep working over 10 years in good working condition.Few easy broken parts,easy to change.
4. Intelligent PLC control system,easy operate,more humanization.
5. Exported to more than 1000 customers from more than 50 countries.
6. OEM,ODM and customized service.
7. CE, ISO, SASO, SGS, CIQ certificates.
8. We guarantee the quality for one year, Lifetime free service, 24-hour online service.
.
Newidea is still developing, and the products are also being innovated. Welcome our old and new customers to visit our factory and make the consultation.We will provide professional packaging solutions for you.
Technological process:
2. Before we deliver machine, we have set all information according to your bag information, and we do the fatigue tests two days, in this time, we open the machine for testing all the time to make sure our machine is perfect.
3. If you still don't know how to do, you can contact me at any time, we have 24-hours after-services for our all customers.
4. We can arrange our engineer to your compony to teach your works if you need, we have eight USA customers, we can be the way to visit our these old customers
How to choose most suitble machine?
In order to offer you most suitble packing machine and reasonable price, I need confirm below bag information to choose mahcine size, and offer you our experience to help you expanding your market:
1. What material do you pack, granule, powder, paste, liquid, or tea?
2. Bag weight(grams or milliliter)?
3. Bag length and bag width?
4. Bag sealing type---4 sides sealing, 3 sides sealing, back/pillow sealing type or vertical bag ?
1. for changing bag length, you just need adjust length value on the machine controller
2. for changing bag width, you need change another set bag former. one kind bag width correspond one bag former mode.
If you want to change bag weight?
Generally, one set machine can pack bags of different weight, but the changed weight at a certain weight range. If out of this range, then need change another set measuring systerm (such as volumetric cup, screw/auger feeder, piston pump and liquid pump), of course except multihead electric weigher.
