Home > Electrical & Electronics > Electronic Tube & Transistor > Rectifier Diode > Ceramic Bolt Alloy Diode m7

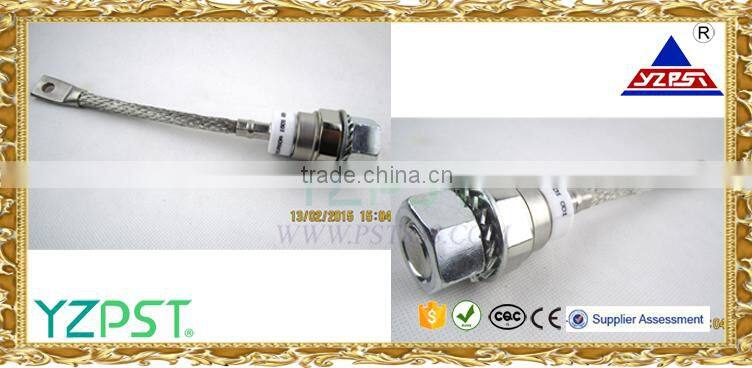

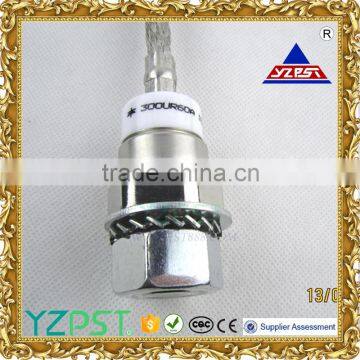

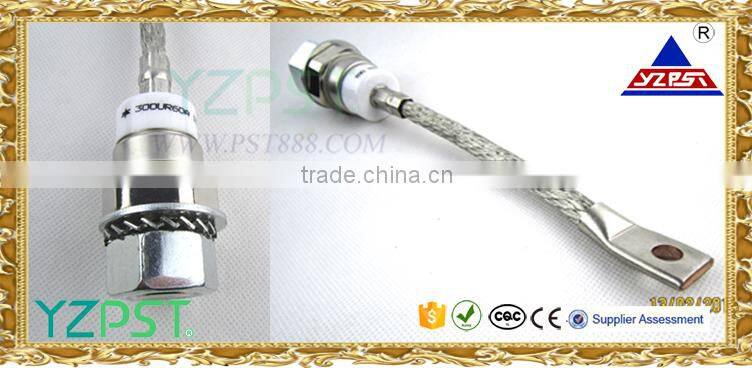

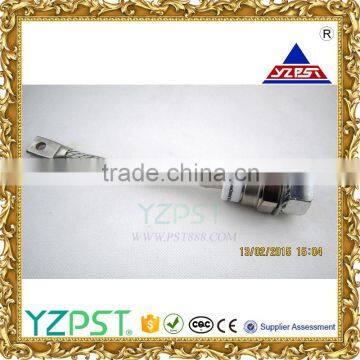

Ceramic Bolt Alloy Diode m7

Name: Ceramic Bolt Alloy Diode m7
Brand: YZPST
SKU: 117315111
Availability: InStock

Yangzhou Positioning Tech. Co., Ltd.

US$ 6 - 8 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

YZPST

Model Number:

300U(R)60A

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name YZPST

Model Number 300U(R)60A

Type Other, stud diode

Package Type Surface Mount

Max. Forward Current 300A

STANDARD RECOVERY DIODES STUD

300U(R)60A

Product Description

STANDARD RECOVERY DIODES STUD 300U(R)60A

Features

* Alloy diode

* High voltage ratings up to 1000V

* High surge current capabilities

* Capacity of supporting high surge current

* Threaded studs 3/4 - 16UNF2A or M20x1.5

* Stud cathode and stud anode version

Typical Applications

* AC/DC converters

* DC power supplies

* Machine tool controls

Forward Conduction

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Repetitive peak reverse voltage	V_RRM			600	V
Non repetitive peak reverse voltage	V_RSM			700	V
Max. average forward current	I_F_(AV)			300	A	Sinewave,180^o conduction,T_c=130^oC
Max. RMS forward current	I_F(_RMS₎			-	A	Nominal value
Max. peak, one-cycle forward, non-repetitive surge current	I_F_SM			6550	A	10.0 msec (50Hz), halfsinewave, T_j = 125 ^oC, V_RM = 0.6V_RRM
Maximum I²t for fusing	I²t			214	kA²s
Max. forward voltage drop	V_F_M			1.40	V	I_TM = 942A
Threshold voltage	V_F0			0.61	V

Thermal and Mechanical Specifications

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Operating temperature	T_j	-40	+180		^oC
Storage temperature	T_stg	-40	+180		^oC
Reverse recovery charge	Q_r_r			-	μc
Thermal resistance - junction to case	R_Q_(j-c)		- -	0.18	K/W
Thermal resistamce - case to heatsink	R_Q_(c-s)		- -	0.08	K/W
Mounting force	P			28	Nm	±20%
Weight	W	-	-	-	g
Case style				DO-9		See Outline Table

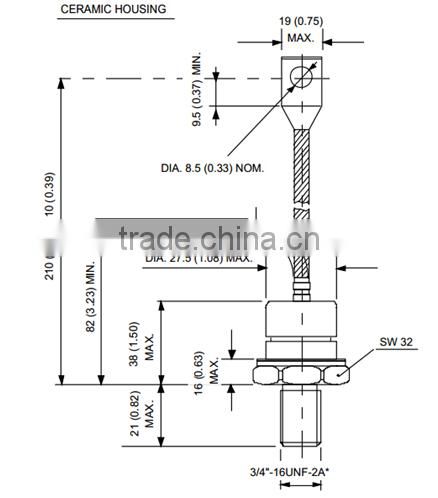

CASE OUTLINE AND DIMENSIONS

Company Information

Production status

Quality And Honor

Packaging & Shipping

1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).

2. If the items are defective, please notify us within 3 days of delivery.

3. Any items must be returned in their original condition to qualify for a refund or replacement.

4. We can ship to you by FedEx/UPS/DHL/TNT/EMS/HK Post. Please contact us directly and we will use your preferred ways.

5. We are not responsible for any accidents, delays or other issues caused by the forwarder.

6. Any import fees or charges are on the buyer's account

Our Services

1. With regard to your inquiry and quotation of products, we will give you the detailed reply within 24 hours.
2.we provide warranty for all the goods from us.

3. We're in this field more than 13 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.

4. We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.

5. The price of sending samples is the same. We quate FOB price. You need to bear the freight after it boarded the ship freight.
