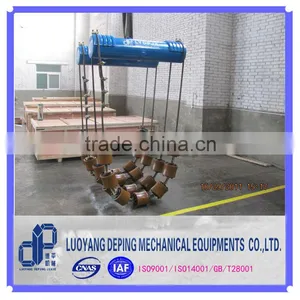

Help CenterSideboom Tools Chain Hoist
Related Products
-
Lifting Tools Hoister for Hoisting PipelinesUS$ 100 - 5,200MOQ: 1 Unit -
Lifting Tools Hoister for Hoisting PipelinesUS$ 100 - 5,200MOQ: 1 Unit
-
Lifting Tools Hoister for Hoisting PipelinesUS$ 100 - 5,200MOQ: 1 Unit
-
Pipe Lifting Slings for Pipeline Lowering inUS$ 200 - 20,000MOQ: 1 Set
-
Pipe Layer Tractors With Hositing ToolsUS$ 100 - 5,200MOQ: 1 Unit
Specifications
1.pipeline sideboom tool chain hoist stay keep best performance at -40~+100degree2.roller material:Vulkollan
3.roller coaster
Sideboom tools chain hoist features:
Supper strong elastomer material of sideboom tools chain hoist in the world: Vulkollan from Bayer(German), high load-bearing capacity, strong abrasive resistance
Temperature range: -40~+100 degree, material performance remain unchanged in so high temperature range
Example: wheel of roller coaster
Name |
Type |
Applicable range |
Roller number( sets) |
Maximum lifting capacity (Kg) |
Weight (Kg) |
Pipe roller cradle |
DL0612 |
6-12(168mm~324mm)
|
2 x 4 |
10,000 |
153 |
Pipe roller cradle |
DL1224 |
12-24(324mm~610mm)
|
4 x 6 |
15,000 |
750 |
Pipe roller cradle |
DL2436 |
24-36(610mm~914mm)
|
4 x 7 |
40,000 |
1,700 |
Pipe roller cradle |
DL3648 |
36-48(914mm~1219mm)
|
4 x 9 |
60,000 |
2,300 |
Pipe roller cradle |
DL4860 |
48-60(1219mm~1524mm)
|
4 x 11 |
90,000 |
3,100 |
Sideboom tools chain hoist is our hot-selling product which have exported to Argentina, Dubai, Turkmenistan and gains very good reputation, the roller supplier is also the top one for FAW-Volkswagen, so if you have any enquiries, please do not hesitate to contact us with below further information!
