Home > Electrical & Electronics > Electronic Tube & Transistor > Rectifier Diode > 1200V Standard Stud Diode

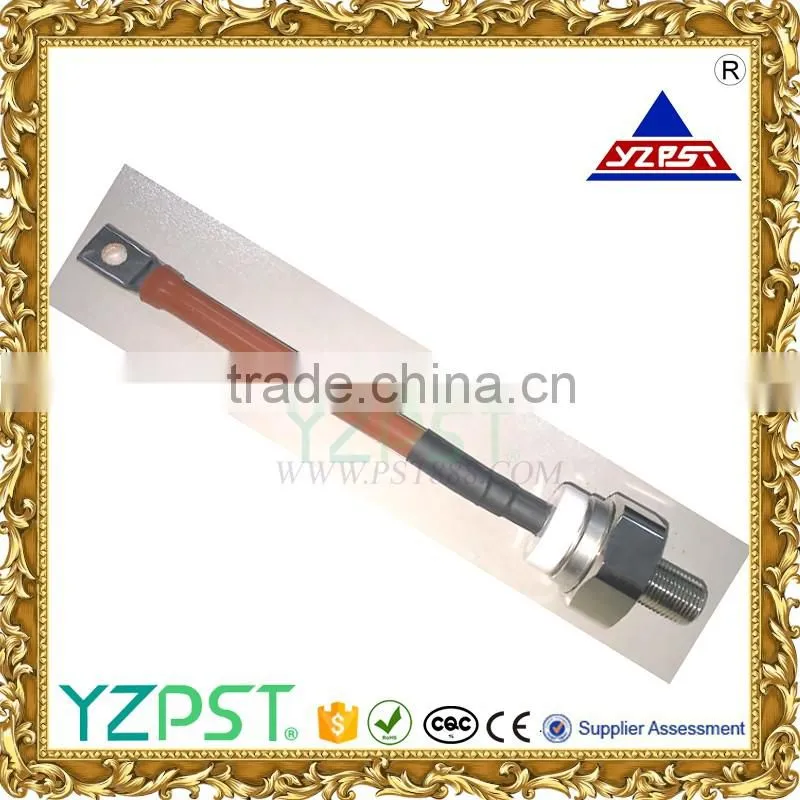

1200V Standard Stud Diode

Name: 1200V Standard Stud Diode
Brand: YZPST
SKU: 117313985
Availability: InStock

US$ 35 - 55 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

YZPST

Model Number:

R7001255/1

Contact Supplier Request Quote Chat Now

Yangzhou Positioning Tech. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name YZPST

Model Number R7001255/1

Type Other, STANDARD RECOVERY DIODES

Package Type Through Hole

STANDARD RECOVERY DIODE

R7001255

Product Description

Forward Conduction

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Repetitive peak reverse voltage	V_RRM			1200	V
Non repetitive peak reverse voltage	V_RSM			1300	V
Max. average forward current	I_F_(AV)			550	A	Sinewave,180^o conduction,T_c=100^oC
Max. RMS forward current	I_F(_RMS₎			700	A	Nominal value
Max. peak, one-cycle forward, non-repetitive surge current	I_F_SM			12.2	kA	10.0 msec (50Hz), halfsinewave, T_j = T_j MAX
Maximum I²t for fusing	I²t			812	kA²s	10.0 msec (50Hz), halfsinewave, T_j = T_j MAX
Max. forward voltage drop	V_F			1.5	V	I_F = 1500A; T_j = T_j MAX
Threshold voltage	V_F0			0.78	V	T_j = T_j MAX
Slope resistance	r_f			0.4	mΩ	T_j = T_j MAX

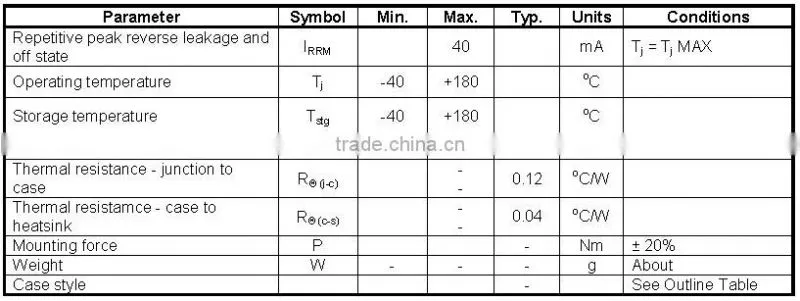

Thermal and Mechanical Specifications

CASE OUTLINE AND DIMENSIONS
