Help CenterLifting Roller Cradle
Related Products
Specifications
1.polyurethane roller2.light weight
3.strong hoist
4.high abrasive resistance
Specifications
1.polyurethane roller
2.light weight
3.strong hoist
4.high abrasive resistance

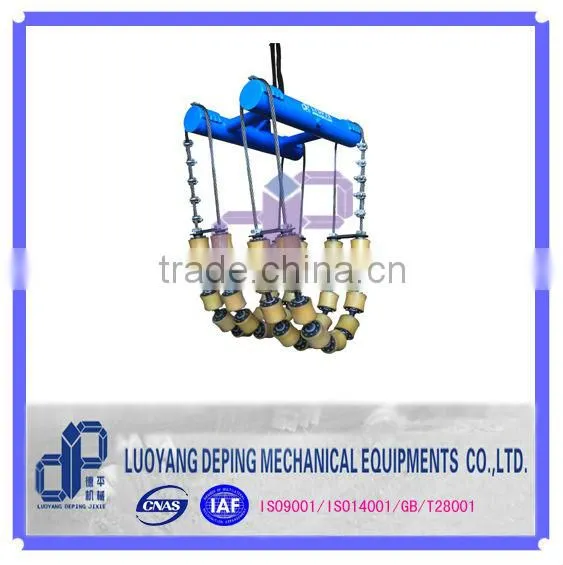

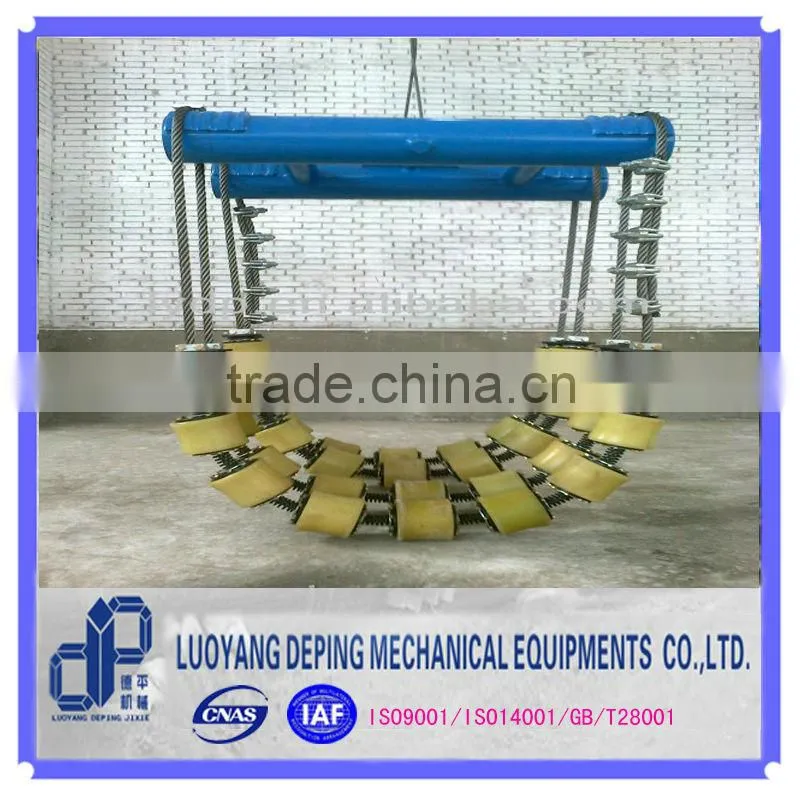

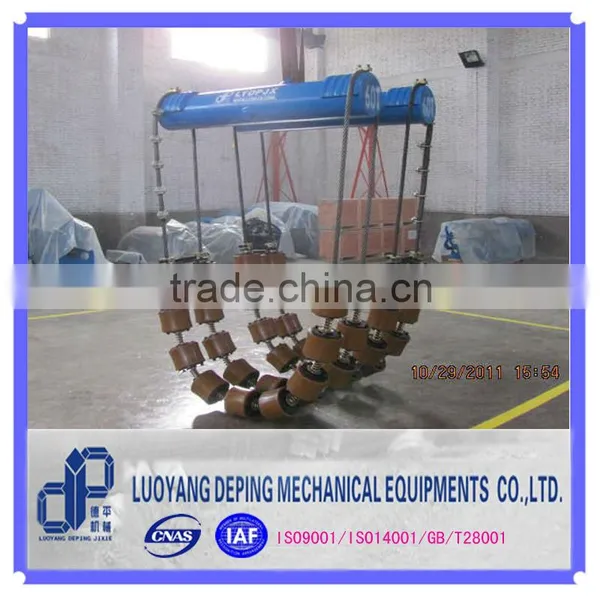

1. Pipe line specialf Lifting Roller Cradle for pipe hyposuloulu after weldings. It is a special Lifting Roller Cradle hoist and travel equipment. Usually, 4-6 units are regarded as one group and it matches with pipe layer for work;
2. DL series pipe line special cradle with reasonable design, light weight, strong hoist power, safe and reliable;
3. It is made by special polyurethane roller with good gluing properties, high abrasive ressitance.
Name |
Roller cradle |
|||||||
Model |
DL1224 |
DL2436 |
DL3648 |
DL4860 |
||||
Applicable pipeline diameter |
IN |
12”-24” |
IN |
24”-36” |
IN |
36”-48” |
IN |
48"-60" |
mm |
305-610 |
mm |
610-914 |
mm |
914-1219 |
mm |
1219-1524 |
|
Roller number assembly |
28 |
32 |
36 |
36 |
||||
Maximum hoisting up weigh |
15,000kg |
40,000 kg |
60,000 kg |
90,000kg |
||||
Weight |
600 kg |
1500 |
2000 |
25,00kg |
||||
Dimension(L W H) |
900×800×1,500 |
1200×900×2000 |
1500×1000×2200 |
1800X1500X3000 |
||||
We are offering our client an excellent quality range of Lifting Roller Cradle. These Lifting Roller Cradle are made from very high quality raw material which ensures high durability at its user end. These Lifting Roller Cradle are in high demand in the market. Different sizes and designs are easily available in the market. Our Lifting Roller Cradle are available at industrial leading prices.
Model: DL1224 DL2436 DL3648 DL4860
Applicable pipeline diameter: IN 12-24,IN 24-36,IN 36-48,IN 48-60
Maximum working load:10,000kg ,15,000kg, 40,000 kg, 60,000 kg, 90,000 kg
William wang
Sales Manager of the International Trade Department
Luoyang Deping Mechanical Equipments Co., Ltd.
South of Sunxin Road ,Luoyang Hi-Tech Development Zone, Luoyang, P.R.of China
web:
Tel: 0086-379-64281526(direct line)
Fax: 0086-379-64281526
