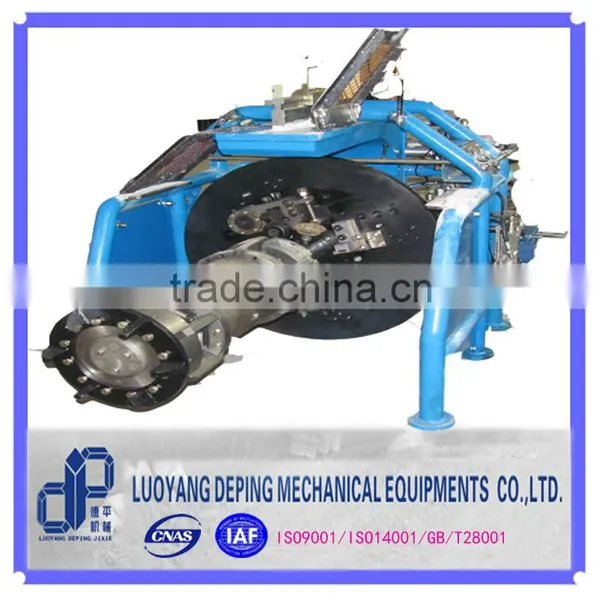

Help CenterInternal Expand Pipe Beveling Welding Machine
Related Products
-
Internal Clamp Pipe Beveling Welding MachineUS$ 10,500 - 185,000MOQ: 1 Unit -
Oil and Gas Pipe BevelerUS$ 300 - 60,000MOQ: 1 Unit
-
Pipe Facing Machine for Offshore Laying BargeUS$ 100 - 2,000,000MOQ: 1 Unit
-
Hydraulic Pipe Beveling Machine for Offshore Laying BargeUS$ 200 - 2,500,000MOQ: 1 Unit
-
High Speed Pipe Beveling MachineUS$ 300 - 300,000MOQ: 1 Unit
Specifications
1.internal expand pipe beveling welding machine mainly for automatic welding process2.beveling machines accuracy within 0.05mm
internal expand pipe beveling welding machine | |
| Type | PFM0612 |
| Product size(L*W*H) | 1800*890*870 |
| Weight (KG) | 595 |
| Applicable range | 6"-12" |
| Max. applicable wall thickness | 18mm |
| Clamping type | Internal centering hydraulic expanding mechanism: accurate centering, powerful clamping, safe and reliable |
| Bevel shape | V shape,U shape,mixed shap,combined innner and outer bevel shape |
| Beveling accuracy | Dimension tolerance ±0.05mm, Angle tolerance±0.5", Ra1.6 |
| Beveling efficiency (including auxiliary time) | Less than 2 mins |
| Hydraulic motor | SAUER DANFOSS |
| Cutting speed | 105m/min |
| Cutting depth | 0.2mm-0.6mm |
| Cutter | SANDVIK/WALTER |
| Operation system | Expanding/release, fast forward/fast backward, working feed, speed adjustment of working feed |
| Working pressure |
Operating pressure:10 to 12MPa; Cutting pressure:0-18MPa |
| Hydraulic power unit | Motor type/Diesel type |
We design and produce the fully internal expand pipe beveling welding machine including internal expanding type and external clamping type, it cover all sizes from pipe 6"-80"
the extreme high cutting accuracy(±0.05mm, roughness Ra1.6) and tremendous fast cutting efficiency(1~5mins) reach the top class in the world.
All configurations of our pipe beveling machine are adopted renowned world-class brands
we set demanding strict requirements on all working processes for each part/component production, only for one spindle part, there are 35 working processes! from raw maerial inspections to metallographic analysis after material heat treatment, from dimensions measurementsof each production process until to comprehensive addeddments after hard chromium plating, we strive for excellence/perfection on each production process, we devote all our loves, passions to these jobs and strong sense of responsibility to customers
We are the approved supplier of CNOOC( China National Offshore Oil Corporation), our products had been successfully applied on the offshore project of pipe laying barge" offshore oil 201"
Our internal expand pipe beveling welding machine have been sold to middle east, south korea, india, brazil, russia and other countries and enjoy high reputation in these markets
internal expand pipe beveling welding machine have been sucessfully using on pipe laying barge 201 which operating by CNOOC( China National Oil and Offshore Co.,ltd and enjoys the very good reputation, so now CNOOC ordered again several units of internal expand pipe beveling welding machine for new projects!
so if you have any further information for purchasing cutting pipe machines , please kindly contact us with follow detail information
Megan
