Specifications

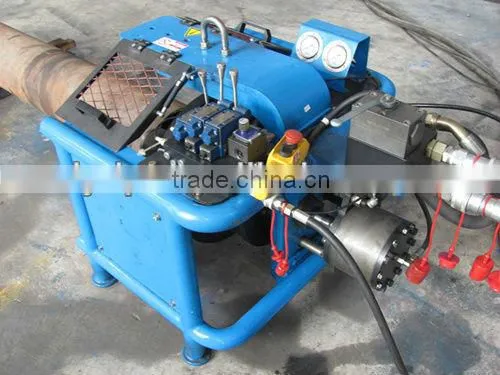

pipelay barges using cutting pipe machines1 Fast, Precision, On-site Beveling
2 Light weight and compact design
3.Ra1.6
All configurations of our pipelay barges using cutting pipe machines are adopted renowned world-class brands
We set demanding strict requirements on all working processes for each part production of carbon steel pipe cutting tools, only for one spindle part, there are 35 working processes! from raw material inspections to metallographic analysis aftr material heat treatment, from dimensions measurements of each production process until to comprehensive assessments after hard chromium plating, we strive fro exvellence/perfection on each production process, we devote all our loves, passions to these jobs and strong sense of responsibility to customers
We are the approved supplier of CNOOC(China National Offshore Oil Corporation), our products had been successfully applied on the offshore project of pipe laying barge" Offshore Oil 201"
Deatil specification please kindly refer below:
| DPFM SERIES PIPE CUTTING TOOLS | |
| Type | PFM1224 |
| Product size(L*W*H) | 2080*1050*1100 |
| Weight (KG) | 1260 |
| Applicable range | 12"-24" |
| Max. applicable wall thickness | 25mm |
| Clamping type | Internal centering hydraulic expanding mechanism: accurate centering, powerful clamping, safe and reliable |
| Bevel shape | V shape,U shape,mixed shap,combined innner and outer bevel shape |
| Beveling accuracy | Dimension tolerance ±0.05mm, Angle tolerance±0.5", Ra1.6 |
| Beveling efficiency (including auxiliary time) | Less than 2 mins |
| Hydraulic motor | SAUER DANFOSS |
| Cutting speed | 105m/min |
| Cutting depth | 0.2mm-0.6mm |
| Cutter | SANDVIK/WALTER |
| Operation system | Expanding/release, fast forward/fast backward, working feed, speed adjustment of working feed |
| Working pressure |
Operating pressure:10 to 12MPa; Cutting pressure:0-18MPa |
| Hydraulic power unit | Motor type/Diesel type |
Specifications
high speed pipe cutting tools
1Fast, Precision, On-site cutting
2Light weight and compact design
3Easy set-up & Operation
Application:
Oil & Gas pipeline
Water filed
Power filed
High speed pipe cutting tools have been sucessfully using on pipe laying barge 201 which operating by CNOOC( China National Oil and Offshore Co.,ltd and enjoys the very good reputation, so now CNOOC ordered again several units of carbon steel pipe beveling machine for new projects!
so if you have any further information for purchasing stainless steel pipe beveling machine, please kindly contact us with follow detail information
Megan
