Specifications
Mandrel is one of key parts of pipe bending machine,it is for purposes of preventing pipe inner wall from wrinkling,keep ovality1.Introdection of hydraulic wedge mandrel

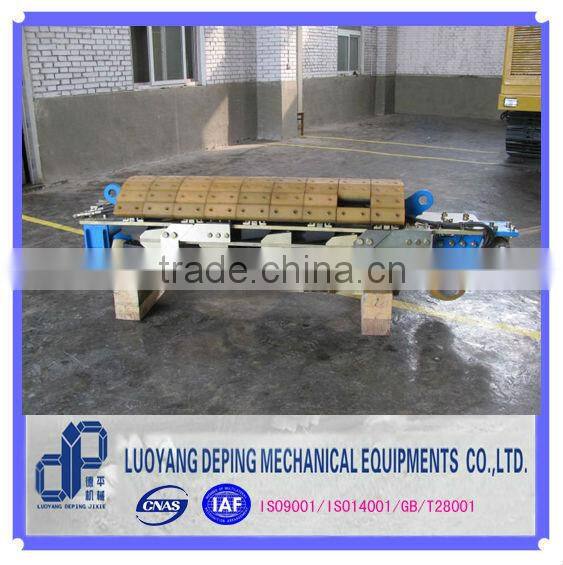

DePing series hydraulic wedge mandrel can be powered by hyduaulic and pneumatic,which we can set for you according your order.
Mandrel is one of key parts of pipe bending machine, it is for purposes of preventing pipe inner wall from wrinkling and controlling ovality during cold bending process of pipe bending machine.
2.Technical Specifications of hydraulic wedge mandrel
| Model | PBM1618 | PBM2022 | PBM2426 | PBM2830 | PBM3234 |
| Weight | 380KG | 550KG | 620KG | 750KG | 980KG |
| Applicable range | 16"-18" | 20"-22" | 24"-26" | 28"-30" | 32"-34" |
3. Moe Specifications of hydraulic wedge mandrel

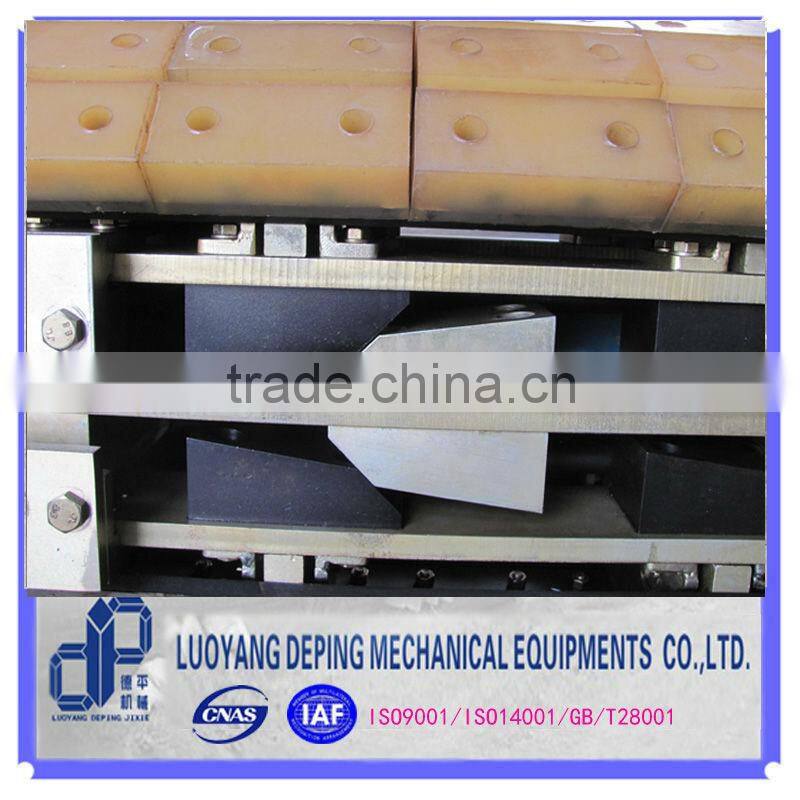

3.1.Wedge form force transmission mechanism: powerful and reasonable distributed clamping force,intense self locking function
3.2.Clam cylinder inside placed:compact and reasonable structure,powerful clamping force.
3.3.Hydraulic motor travelling setting:this setting is for walking function realization,working position can be controlled precisely by the control system.

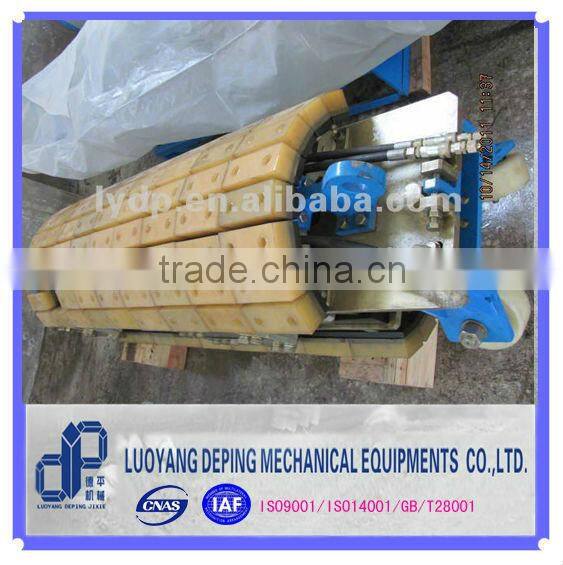

3.4.Scale polyurethane clamping shoes:reasonable design,easy for assembling and disassembling,high abrasive resistance.
4.More details of hydraulic wedge mandrel and DePing Mechanical Equipments Company.
