Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > Mobile Power Station

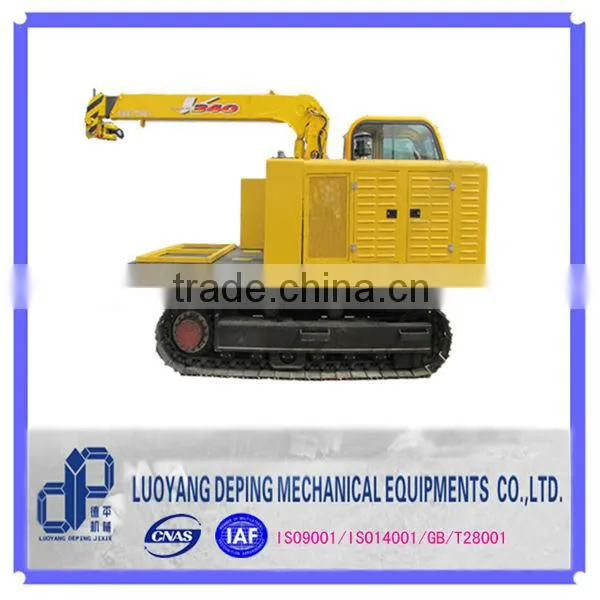

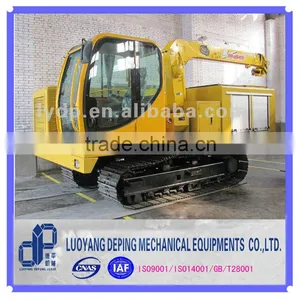

Mobile Power Station

US$ 3,000 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Model Number:

MPS-H75

Contact Supplier Request Quote Chat Now

Luoyang Deping Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name DP

Model Number MPS-H75

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Specifications

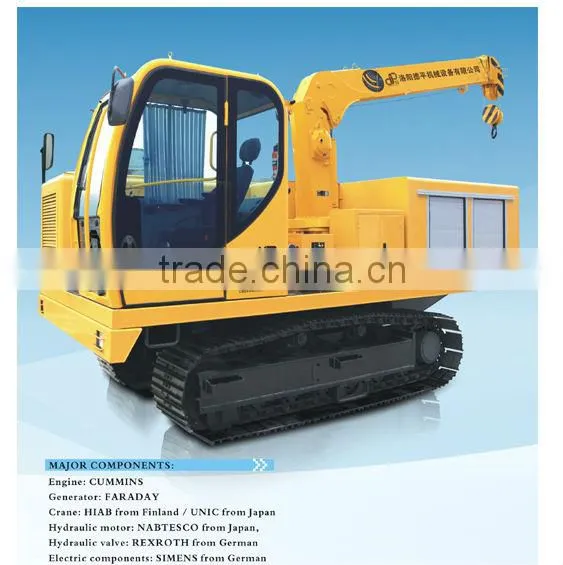

1. Cummins engine
2. Stamford generator
3. Crawler
4. All-steel ship frame chassis

PRODUCT DETAIL

We are offering our client an excellent quality range of Mobile Power Paywelder. These high quality Mobile Power Paywelder are made from high quality raw materials which ensures high durability at its user ends. Our range of pipeline welder are widely finds its valuable application in various industrial sectors.
1. Cummins engine
2. Stamford generator
3. Crawler
4. All-steel ship frame chassis

Specifications

1.pipeline welder has an 11.2% improvement in efficiency
2.Patented design of hydraulic clutch sytem

Model		MPS-H75
Operating Weight		8500kg
Overall Dimensions(LWH)		450024002950mm
Engine	Type	YTO LR4M3Z-G104NR-U2
	Power	77kw(at power generating condition:111KW/1500rpm)
	Rotating Speed	2200rpm
Generator	Type	Faraday Generator FD3A (50hz/1500rpm)
	Rated Power	30kw
	Rated Capacity	37.5kva
	Output Type	Three phases 380v
Operating Format	Pressure/ Flux	25mpa/189 L/Min
	Traveling	Indoor hand & foot synchronization joy stick
	Generating	Indoor positioning joy stick
	Lifting	Outdoor joy stick
Travel	Travel Speed(Front & reverse)	2.8/4.6km/h (two shifts ,continuously variable transmission)
	Grade ability	30°
	Ground Pressure	33/25 Kpa 39/32 Kpa
Chassis	Minimum Ground Clearance	490mm
	Track Shoe Width	500mm/600mm
Crane	Type	HIAB (Finland) or UNIC (Japan) Hydraulic 360°swing ,telescopic boom
	Max Lifting Capacity	3200kg
	Crane Radius	2100-5320mm
	Pressure /Flux	20mpa/25L/Min
Major elements	Primary hydraulic pump /valve: PARKER (U.S.A) Gear motor assemblies: NABTESTCO (JAPAN) hydraulic servo system: PARKER (U.S.A) Hydraulic hoses and fittings: GATES (U.S.A) Hydraulic valves: REXROTH (Germany) Components in Electric control cabinet: SIMENS (Germany)
Main Carrying Capacity		DC400 2 units of Lincoln welding machine;2 units of handwheel polisher these mentioned machines are not provided with paywelder MPS-H80

PRODUCT ADVANTAGES:

1. applicable pipe range: 6" ~ 80".
2. strong clamping: beyond 10% more powerful than other same type product.
3.High alignment accuracy: unfitness of butt joint is below 1mm
