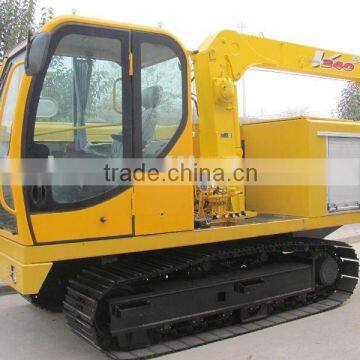

advantage of motor electric crawler mobile workstation :
1. Patented design of rigid straight connecting of engine, generator and hydraulic pump
2.Patented design of hydraulic clutch system
3.10T excavator chassis, all rigidity ship shape construction design which improving its rigidity and cross-country performance
4.With the Cummins engine, electrical system match with the military standard which for better reliability
5.Its comfortable working space, allows the operator to manipulate efficiently
Model |
MPS-H80 |
||
Operating Weight |
10300kg |
||
Overall Dimensions(L*W*H) |
5500*2600*3050mm |
||
Engine |
Type |
Cummins 6BTA5.9-C170 Turbo-charged, Water Cooling, |
|
Power |
125kw(at power generating condition:111KW/1500rpm) |
||
Rotating Speed |
2300rpm |
||
Generator |
Type |
Faraday Generator FD3A (50hz/1500rpm) |
|
Rated Power |
80kw |
||
Rated Capacity |
100kva |
||
Output Type |
Three phases 380v |
||
Operating Format |
Pressure/ Flux |
25mpa/189 L/Min |
|
Traveling |
Indoor hand & foot synchronization joy stick |
||
Generating |
Indoor positioning joy stick |
||
Lifting |
Outdoor joy stick |
|
|
Travel |
Travel Speed(Front & reverse) |
2.8/4.6km/h (two shifts ,continuously variable transmission) |
|
Grade ability |
30° |
|
|
Ground Pressure |
33/25 Kpa 39/32 Kpa |
|
|
Chassis |
Minimum Ground Clearance |
490mm |
|
Track Shoe Width |
500mm/600mm |
|
|
Crane |
Type |
HIAB (Finland) or UNIC (Japan) Hydraulic 360°swing ,telescopic boom |
|
Max Lifting Capacity |
3200kg |
|
|
Crane Radius |
2100-5320mm |
|
|
Pressure /Flux |
20mpa/25L/Min |
|
|
Major elements |
Primary hydraulic pump /valve: PARKER (U.S.A) Gear motor assemblies: NABTESTCO (JAPAN) hydraulic servo system: PARKER (U.S.A) Hydraulic hoses and fittings: GATES (U.S.A) Hydraulic valves: REXROTH (Germany) Components in Electric control cabinet: SIMENS (Germany) |
|
|
Main Carrying Capacity |
DC400 2 units of Lincoln welding machine;2 units of handwheel polisher these mentioned machines are not provided with paywelder MPS-H80 |
|
|
1. wet land full hydrauic crawler welding station MPS-H80 has power saving, high efficiency and power cross-country performance, be able to perform in severe working conditions such as the swamp, desert
2.Power cross-country performance
compared with similar products the paywelder has an 11.2% improvement in efficiency
comfortable operating space
reducing maintenance cost
convenient turning operation
3.saving energy& protect environment
high effect&realiability
match with the military standard
4. strong power
reliability and durability
work and oil saving
5. Powerful & stable traction
embedded type hook
smooth&easy operating system

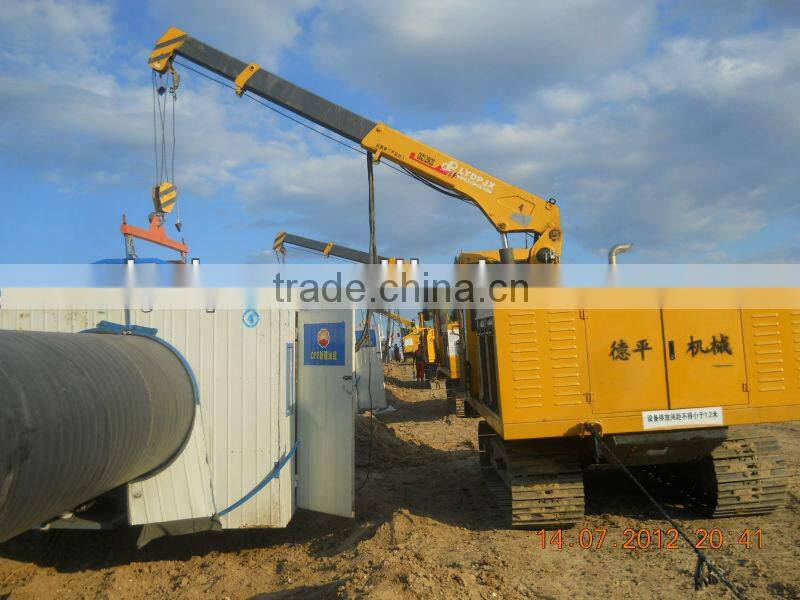

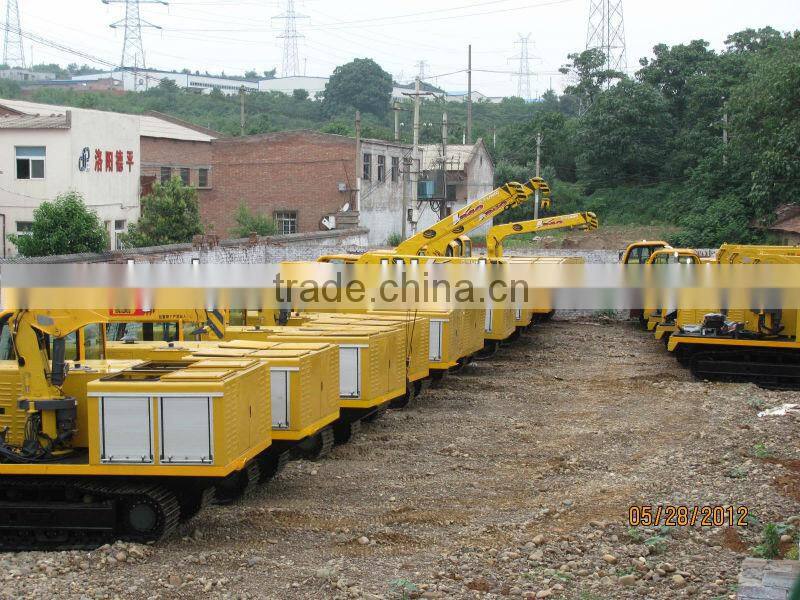

Our 16 units of welding work station has been using in Xinjiang which keeps the better performance compared with other brands, also constant redesigning welding work station structure has get a degree which have proved its best performance onsite, for more information please kindly refer below information.
Take this oppurtunity, we would like to further introduct our company:
Starting from Year 2000, Luoyang Deping Mechanical Equipment Co., Ltd specilize in research and manufacturering pipeline construction equipments, enjor high reputation in pipeline construction industry , our products include: internal pneumatic line up clamp, external line up clamp, pipe facing (beveling) machine, paywelder, roller cradle, pipe bending mandrel, ring fired heater etc.
Our products are made in China, but you can feel free to compare our products with other internation brands such CRC, PROLINE, VIETZ etc, what we can promise is that our product performance at least equal to them with much competitive price.
