Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > Glass Printing Machine UV Printer With Spt255 Head

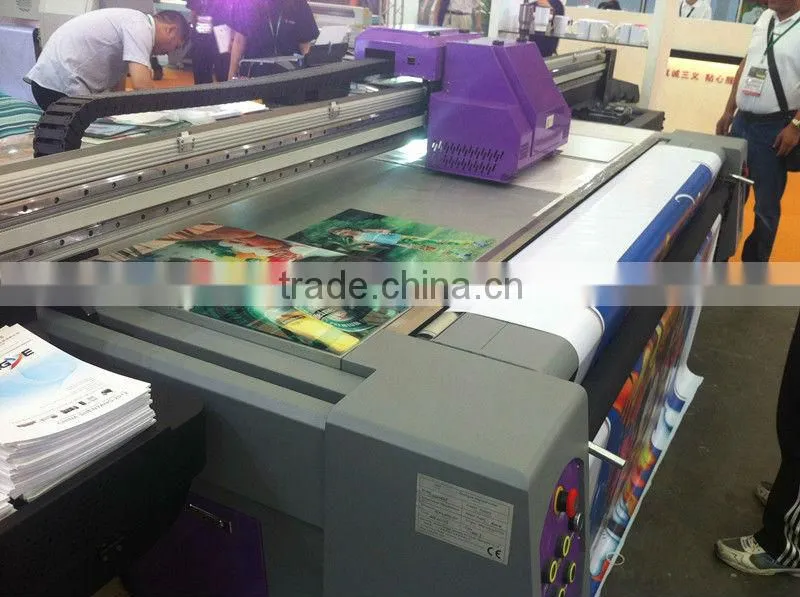

Glass Printing Machine UV Printer With Spt255 Head
US$ 35,000 - 50,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Flatbed Printer UV Inkjet Printer With UV LED Drying SystemUS$ 12,000 - 20,000MOQ: 1 Piece -
UV Flatbed PrinterUS$ 29,800 - 30,800MOQ: 1 Set
-
uv Led Flatbed Printer Machine for Roll to Roll and Sheet to SheetUS$ 20,000 - 35,000MOQ: 1 Set
-
UVC-EP0906 UV Flatbed Printer UV LED PrinterUS$ 14,000 - 16,000MOQ: 1 Set
-
Small Format UV Flatbed Printer UV LED PrinterUS$ 14,000 - 16,000MOQ: 1 Set
Condition
New
Plate Type
Letterpress
Place of Origin
China
Brand Name
ZhongYe
Model Number
UVB-SK3822
Automatic Grade
Automatic
Dimensions(L*W*H)
4.6m*2.2m*1.4m
Weight
1800Kg
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Zhongye UV series UV flatbed printer adopts Japanese SK series print heads, equipped with double servo drivers, 10cm max printing height. Realize the formless, non-contacting, and real-time printing on different kinds of sheet materials , such as KT board, PVC board, plexiglass, glass, ceramic, metal, and leather etc. It replace the roll of traditional screen printing technology, and brings to customers the individualized, small-lot, various, and multicolored products, with the output features of speediness, high efficiency and flexibility guaranteed.
After sold service
1.Anytime on line technology support
support
3.send the technician to your place for helping
Technical parameter
| Name | UV3822B |
| Class | ZY-SKUVB series |
| Print technology | Drop-on-demand Piezo electric |
| Printhead | 4/5/7/10/12/14(spt255) |
| Print width | 3.80M*2.15M |
| Print high | 10cm |
| Resolution | 1440dpi max |
| Speed | 2pass 24m/h ; 4pass 16m/h ; 6pass 8m/h |
| Locating mode | Raster /servo |
| Color | CMYK W LC LM |
| Media width | 3.80M*2.15M |
| Media handl | Sheet to sheet |
| Media types | KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and all the roll to roll material like flex banner,mesh,one way vision,vinyl etc |
| Drying system | Uv lamp |
| File format | TIFF,Postscript 3,JPEG,EPS,PDF |
| Working process | Printmon software for windows xp |
| Rip | Photoprint /maintop |
| Power supply | 50hz/60hz 220v(10%)20A |
| Operation environmeng | (Tempperature )18-26(Humidity )40%-70% |
| Dimesion | 4.6m*2.2m*1.4m |
| Weight | 1800Kg |
