Glass Flatbed Printing Machine

Glass Flatbed Printing Machine thumbnail-1
Glass Flatbed Printing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Liaoning, China
Contact Supplier Request Quote Chat Now
Liaoning Zhongye Technology And Industry Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Liaoning, China
Brand Name Zhongye
Usage Bill Printer
Automatic Grade Semi-Automatic

Specifications

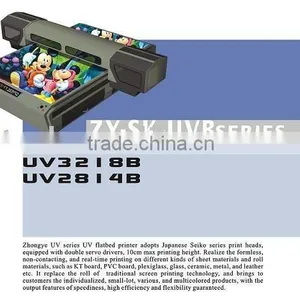

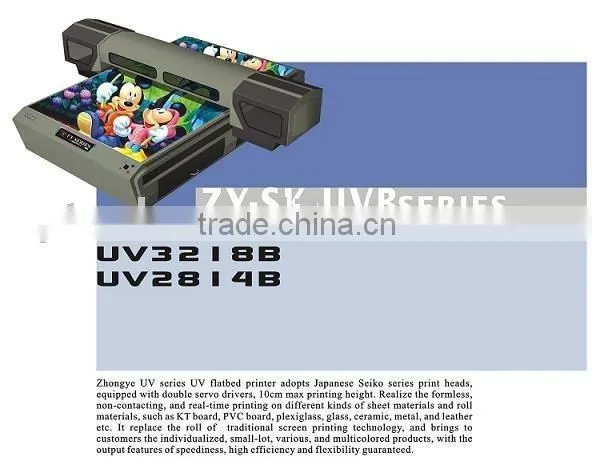

UV flatbed printer adopts seiko print heads, deluxe equipment with double servo drives& Panasonic motor, height maximum 10cm.



Name

UV3822B

Class

ZY-SKUVB series

Print technology

Drop-on-demand Piezo electric

Printhead

4/5/7/10/12/14(spt255)

Print width

3.80M*2.15M

Print high

10cm

Resolution

1440dpi max

Speed

2pass 24m/h ; 4pass 16m/h ; 6pass 8m/h

Locating mode

Raster /servo

Color

CMYK W LC LM

Media width

3.80M*2.15M

Media handl

Sheet to sheet

Media types

KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and all the roll to roll material like flex banner,mesh,one way vision,vinyl etc

Drying system

Uv lamp

File format

TIFF,Postscript 3,JPEG,EPS,PDF

Working process

Printmon software for windows xp

Rip

Photoprint /maintop

Power supply

50hz/60hz 220v(10%)20A

Operation environmeng

(Tempperature )18-26(Humidity )40%-70%

Dimesion

4.6m*2.2m*1.4m

Weight

1800Kg



Configuration below is according to different models:

Motor: Japanese Panasonic, Fuji AC servo motor;

Rail:Japanese THK,Tawinese HWIN;

Heating system:front&back double heating;

Feed-in&take-up system: infrared light controlled automatically media feed-in and take-up system

Printhead cleaning system: positive pressure, Suction double functions.

Ink system:German KNF ink supply system,Japanese negative pressure system.

Contact: Shirley DUAN

Mobile:86(0)15142089320

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Liaoning Zhongye Technology And Industry Development Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
30,000-50,000 square meters
Total Employees
201 - 300 People
