Textiles Printing Machine With (EPSONDX5)Micro Piezo Print Head,3.5PL Ink Droplet Size

Textiles Printing Machine With (EPSONDX5)Micro Piezo Print Head,3.5PL Ink Droplet Size thumbnail-1
Textiles Printing Machine With (EPSONDX5)Micro Piezo Print Head,3.5PL Ink Droplet Size thumbnail-2
Textiles Printing Machine With (EPSONDX5)Micro Piezo Print Head,3.5PL Ink Droplet Size photo-1
Textiles Printing Machine With (EPSONDX5)Micro Piezo Print Head,3.5PL Ink Droplet Size photo-2
US$ 11,000 - 19,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Screen Printer
Place of Origin:
Liaoning, China
Contact Supplier Request Quote Chat Now
Liaoning Zhongye Technology And Industry Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DaLian port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Screen Printer
Place of Origin Liaoning, China
Brand Name ZY
Model Number S3200
Usage Other, Textile, Sublimation banner cloth etc. materials.
Automatic Grade Automatic
Voltage 220~240V50/60HZ
Gross Power 1000W(maximum)300W(standard)
Dimensions(L*W*H) 4.4m*0.9m*1.25m
Weight Net weight:460KG Gross weight:640KG
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas

ZhongYe Textile Inkjet Printer: with high resolution, outdoor and indoor applied, designed especially for printing of Textile, sublimation banner cloth,etc.

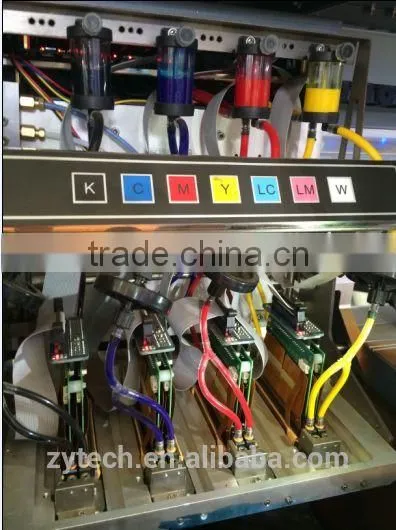

Adopts the Epson 5th Generation of Micro Piezo Technology,print head width up to 24.5 mm,each head has 1440 nozzles in 8 rows,With precise steel belt driving mode,to realize higher resolution,more stable printing, longer using life. (belt is optional for 2.5 and 3.2m models )Using the static noise guide rail in printer frame,to realize more smooth and stable running, longer life, and lower noise. Strong media feed-in system, for smooth printing on heavy materials, such as textile, sublimation banner cloth, and so on.Unique wide strong media roller, to ensure stablity of media feed-in.Independently develop intelligent print head cleaning and moisturizing device, and provide a safe and convenient print head cleaning and maintenance function.



Specifications :

Print head Micro Piezo print head,3.5PL Ink Droplet Size(EPSONDX5)1-2pieces(optional)

4 colors:C,M,Y,K

Printer Head Height :Adjustable 2~5mm

Printing resolution 1440DPI(2880DPI MAXIMUM)

Printing width 3.2m

Printing speed Draft Mode:50sqm/h

Standard Mode:26sqm/h

Quality Mode:sqm/h

Drying System Temperature digital controlling heating,front,middle and back (optional); Heating equipment.

Media Media width:3.2m

Automatic feeder,Automatic take up (optional)

Textile, Sublimation banner cloth etc. materials.

Ink: Sublimation dye

RIP MAINTOP,PHOTOPRINT,ULTRA etc

Supported Image Format:TIFF,JPEG,PDF and other common image formats

Control Software Chinese version and English version

Operating System WINDOWS XP/7

Voltage 220~240V50/60HZ

Operating Enviroment 1000W(maximum)300W(standard)

Temperature:20-25℃

Humidity:40%-70% non condensation

Dimension Machine size:4.4m*0.9m*1.25m

Net weight:460KG

Gross weight:640KG

Remark Make the above parameters is 2 heads,3.2 meter machine test standard,if there are some changes,will be not noticed.

Guarantee:

The guarantee time is 1 year, which means in the first of year, the spares (not include the print head and small spending spare parts) are free to exchange in case some faulty or out of order. For to know better about the printer, you can send an engineer to our factory for the training. The training cost are totally free. If you would like to ask our engineer to your place, we can also give you the free service or training, but the cost of transportation(air plane), living and food, and cost of applying the visa need to be borne by your side. Plus, we have strong after-sale service department with experienced English Speaking technician who can supply technical support any time by email, messager, phone and all the other available methods. The technical support is all the time.







Textiles printing machine with (EPSONDX5)Micro Piezo print head,3.5PL Ink Droplet SizeTextiles printing machine with (EPSONDX5)Micro Piezo print head,3.5PL Ink Droplet SizeTextiles printing machine with (EPSONDX5)Micro Piezo print head,3.5PL Ink Droplet SizeTextiles printing machine with (EPSONDX5)Micro Piezo print head,3.5PL Ink Droplet Size



 Thanks for visiting our printer, hope to cooperate with you sincerely !!!

 Best regards,

 Blake Tian

 cell phone: 0086-18240068853

 skype: lyyfblake
