Specifications
6.8m wide format printer, make high speed and resolution realized.seiko 510 print heads| Name | 6800(6COLORS) |
| Class | ZY-Seiko series |
| Print technology | Drop-on-demand Piezo electric |
| Printhead | 4/6(Seiko 510) |
| Print width | 6.8M |
| Resolution | 1440dpi max |
| Speed | 2pass 70m/h ;4pass 40m/h ;6pass 24m/h |
| Locating mode | Raster /servo |
| Color | CMYK LC LM |
| Media width | 6.8M |
| Media handl | Roll to roll |
| Media types | Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc |
| Ink | Solvent/two-year outdoor lifetime |
| File format | TIFF,JPEG,Postscript 3,EPS,PDF |
| Working process | Printmon software for windows xp |
| Rip | Photoprint /maintop |
| Power supply | 50hz/60hz 220v(10%)20A |
| Operation environmeng | (Tempperature )18-26(Humidity )40%-70% |
| Dimesion | 8.8m*1.4m*1.5m |
| Weight | 1800Kg/2600Kg |

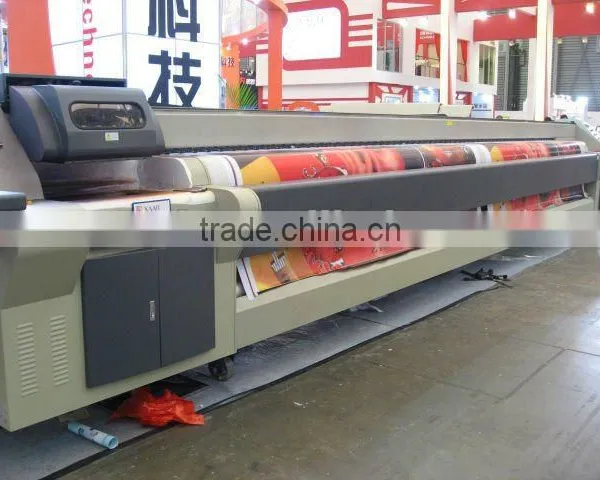

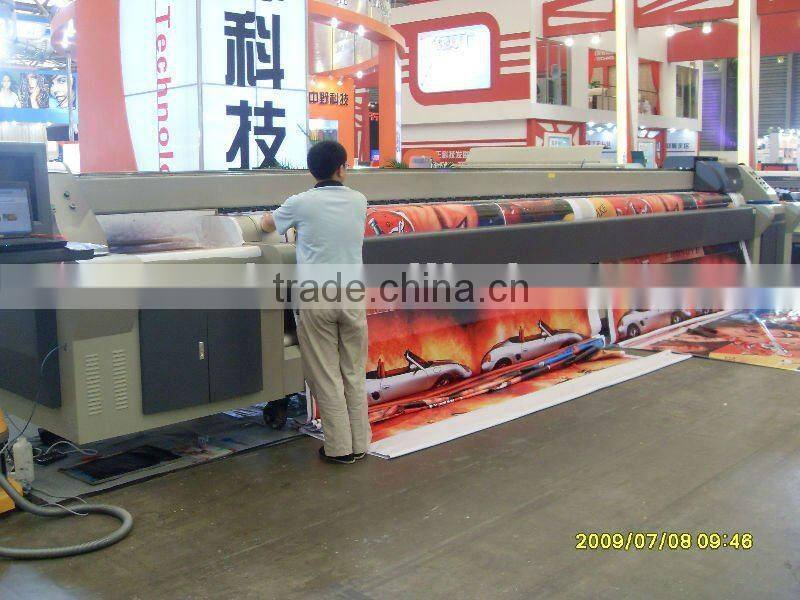

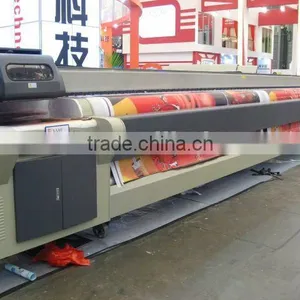

6.8m wide format printer : adopting spt and xaar print heads, souble servo driver and servo motor system, Negative ink pressure supply system imported from Japanese enable stable ink supply during printing process, widely used for giant format outdoor banner printing.
Print technology: Drop-on-demand Piezo Electric
Locating mode: Raster/Servo
Media handling: roll to roll
Media types: flex banner, vinyl sheet, one way vision, mesh, PVC fabrics, paper, etc.
File format: Tiff,JPEG, Postscript 3, EPS, PDF
Rip software: Photoprint / maintop
Working process: printmon software for windows xp
Power supply: 50hz/60hz 220V(10%)
Operation environment: (Temperature) 18-26 (Humidity) 40%-70%
Configuration below is according to different models:
Motor: Japanese Panasonic, Fuji AC servo motor
Rail: Japanese THK, Tawinese HWIN
Heating system: front&back double heating
Feed-in&take-up system: IR controlled auto feed-in&take-up system
Printhead cleaning system: positive pressure, vaccum
Ink system: German KNF ink supply system, Japanese negative pressure system.
Warranty
*1 Year Warranty ( without printheads and consumable spare parts of ink system )
*With the printer ,we send you One free spare parts kit including all the consumable spare parts ; Software CD and Demo VCD and manual freely .You can learn how to install the machine from the vedio we sent to you .
* Our engineer can go to clientsplace to install the printer as client demanding and teach the client how to operate and maintain the machine .All the service is free .The client only need to pay the air ticket and accommodation charge.
*Two of our engineers who is English-spoken & progfessional of techinical are on line 24 hours .They can offer you on-going service and solve the printer problem at anytime!
