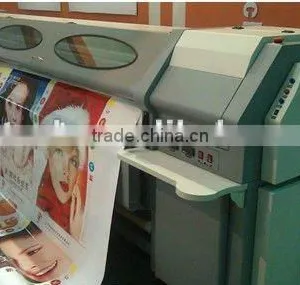

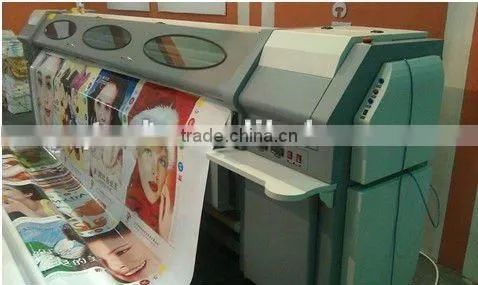

ZY-SK2000 Large Format Outdoor Printer

Name: ZY-SK2000 Large Format Outdoor Printer
Brand: ZY brand
SKU: 117293229
Availability: InStock

US$ 6,300 - 70,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Plate Type:

Other, solvent inkjet printer

Place of Origin:

Liaoning, China

Liaoning Zhongye Technology And Industry Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, solvent inkjet printer

Place of Origin Liaoning, China

Brand Name ZY brand

Model Number ZY-SK2000

Usage Bill Printer

Automatic Grade Automatic

Gross Power 500w

Dimensions(L*W*H) 2.4*1.8*1.2(m)

Specifications

Wide format outdoor printer;Adopting seiko SPT printheads. Locating mode is combined with DC motor and raster.

Model	2000 wide format outdoor printer
Print Head	8/12(spt510/255)
Print Width	2.0M
Resolution	1440dpi max
Speed	2 pass 45/h
	4 pass 28/h
	6 pass 18/h
Color	CMYK LC LM
Dimension	3.3m0.7m1.4m
Net weight/Gross weight	350/450kg
Print Technology	Drop-on-demand Piezo Electric
Locating Mode	Raster/Servo
Media Handling	Roll to Roll
Media Types	Flex Banner, vinyl sheet, one way vision, mesh, PVC fabrics, paper, etc
Ink	Solvent/two-year outdoor lifetime
Drying System	Fan plus heating system in front and forward
File Format	TIFF, JPEG, Postscript 3, EPS, PDF
Rip Software	Photoprint/maintop
Working process	Printmon software for windows xp
Operation Environment	(Temperature)18-26 (Humidity)40%-70%
Power Supply	50hz/60hz 220v(10%)20A

Configuration below is according to different models:
Motor: Japanese Panasonic, Fuji AC servo motor
Rail: Japanese THK, Tawinese HWIN
Heating sysem: front&back double heating
Feed-in&take-up system: IR controlled auto feed-in&take-up system
Printhead cleaning system: positive pressure, vaccum
Ink system: German KNF ink supply system, Japanese negative pressure system
