Specifications
(1)Epson DX5 print head(2)roo to roll and sheet to sheet
(3)lifetime maintence,24 online technic support

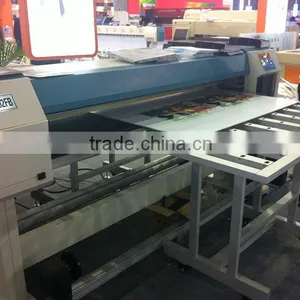

1.8m eco solvent flatbed printer machine adopt Epson DX5 printhead,steel belt DC driver,(Alternative option:Guide rail,AC Servo driver) working with normal eco solvent ink,widely used for KT board,Paper board,PS board, and many other boards after being coated&roo to roll printing materials
Print haad: Epson DX5, Print width:1.8m , Resoluyion:1440dpi
Usage:(sheet to sheet) KT board,PVC board, acrylic ,ABS board,Paper board and so on
(roll to roll) Flex banner,vinyl,one way vision and so on
The specification :
Print heads:micro piezo dot-on-demand
print head: 1 group Epson DX5 printheads(paratactic structure)(2groups optional)
4color: CMYK
Height adjustable range: 2-5mm
Resolution(Max): 1440dpi
Printing width(Max): 1.8m
Printing speed: Draft Model: 540*720dpi 28sq.m./h
Production model: 720*720dpi 16sq. m. /h
High quality model: 720*1440dpi 9sq. m./h
Heating System: Front, back heating system(middle heating system is optional), middle flatbed sucker system,
PID temperature controller
Adjustable range: room temperature-80°C
Drying system: outer fan
Media:Max width: 1.8m
Media handling system: Auto media feeding, manual media releasing, Built-in variable adsorption
Media type: Adhesive Vinyl, PVC, Mesh, Textile, Banner, Eco solvent inkjet paper etc.
Inks:Eco-solvent Inks
Ink Cartridge: 350ml, 8pieces
RIP:Maintop/Photoprint
Form: Tiff, Jpeg etc
Driver: Professional bi-language software(Chinese&English)
Working system: Windows XP
Input power: AC 220-240v 50/60 HZ
Working environment: 1000W(max. power) 300W(normal working power)
Temperature: 20-25°C
Humidity: 40-70%, non condensation
The eco solvent flatbed printer machine has the 3.2m 2.5m 1.8m
