Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > Flatbed Solvent Printer ZY-SK3200FB

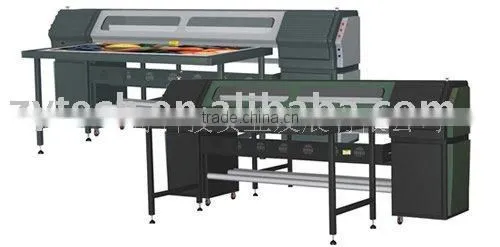

Flatbed Solvent Printer ZY-SK3200FB

Name: Flatbed Solvent Printer ZY-SK3200FB
Brand: Zhongye
SKU: 117292253

Flatbed Solvent Printer ZY-SK3200FB thumbnail-1

Flatbed Solvent Printer ZY-SK3200FB photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Plate Type:

Screen Printer

Place of Origin:

Liaoning, China

Contact Supplier Request Quote Chat Now

Liaoning Zhongye Technology And Industry Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Plate Type Screen Printer

Place of Origin Liaoning, China

Brand Name Zhongye

Model Number SK-3200FB

Usage Bill Printer

Automatic Grade Semi-Automatic

Name	3200FB
Class	ZY-SKFB series
Print technology	Drop-on-demand Piezo electric
Printhead	4/6/8/12(spt510/spt255)
Print width	3.20M
Print high	5cm
Resolution	1440dpi max
Speed	2pass 60m/h ; 4pass 45m/h ; 6pass 24m/h
Locating mode	Raster /servo
Color	CMYK W LC LM
Media width	3.2M
Media handl	Roll to roll Sheet to sheet
Media types	KT Board,PVC board,Foam board,Acrylic board and also roll to roll material like flex banner,mesh,one way vision,vinly etc.
Drying system	Solvent/two-year
File format	TIFF,Postscript 3,JPEG,EPS,PDF
Working process	Printmon software for windows xp
Rip	Photoprint /maintop
Power supply	50hz/60hz 220v(10%)20A
Operation environmeng	(Tempperature )18-26(Humidity )40%-70%
Dimesion	4.6m0.7m1.4m
Weight	600Kg/750Kg

Configuration below is according to different models:

Motor: Japanese Panasonic, Fuji AC servo motor;

Rail:Japanese THK,Tawinese HWIN;

Heating system:front&back double heating;

Feed-in&take-up system:IR controlled auto feed-in&take-up system;

Printhead cleaning system: positive pressure, vaccum

Ink system:German KNF ink supply system,Japanese negative pressure system.

Warranty

*1 Year Warranty ( without printheads and consumable spare parts of ink system )

*With the printer ,we send you One free spare parts kit including all the consumable spare parts ; Software CD and Demo VCD and manual freely .You can learn how to install the machine from the vedio we sent to you .

* Our engineer can go to clientsplace to install the printer as client demanding and teach the client how to operate and maintain the machine .All the service is free .The client only need to pay the air ticket and accommodation charge.

*Two of our engineers who is English-spoken & progfessional of techinical are on line 24 hours .They can offer you on-going service and solve the printer problem at anytime !
