GSM surveillance video MMS hunting camera digital game hunting camera

Type

Parameters

940nm

Lens

F=3.1; FOV=52°; Auto IR-Cut

Yes

IR-Flashlight

45 Feet/15 Meters

Yes

TFT Display Screen

48x35.69mm (2.36");480(RGB)*234DOT; 16.7M color

Yes

Operation Keypad

6 keys

Yes

Memory

SD Card (8MB ~16GB)

Yes

Picture Size

5MP = 2560x1920 (sensor) & 12MP 4000x3000 (interpolated)

Yes

Video Size

640x480: 20fps; 320x240: 20fps

Yes

PIR Sensitivity

PIR with 3 sensitivity levels: High/Normal/Low

Yes

     PIR Sensing Distance

65ft/20m(Below +25°C/+77°F at the Normal Level)

Yes

Preparation PIR Sensing Angle

Left and right light beams form an angle of 100°

Each lens covers 10°(Can be set Off)

Yes

      Shot PIR Sensing Angle

35°

Yes

Operation Mode

Day/Night

Yes

Trigger Time

1 Second (When using the 2G SD card)

Yes

Triggering Interval

0sec. - 60min. Programmable

Yes

Shooting Numbers

1~3

Yes

Video Length

1-60sec.  Programmable

Yes

Camera+Video

First take Picture and then take Video

Yes

Playback Zoom In

1~16 times

Yes

Time Stamp

On /Off, include serial No./ temperature and moon phase

Yes

Timer

On /Off Time Lapse Programmable

Yes

Password

4 Protection Numbers

Yes

Device Serial No.

4 Digits and 26alphabet Set by Yourself

Yes

Periodic Shot

1 Second~24Hours

Yes

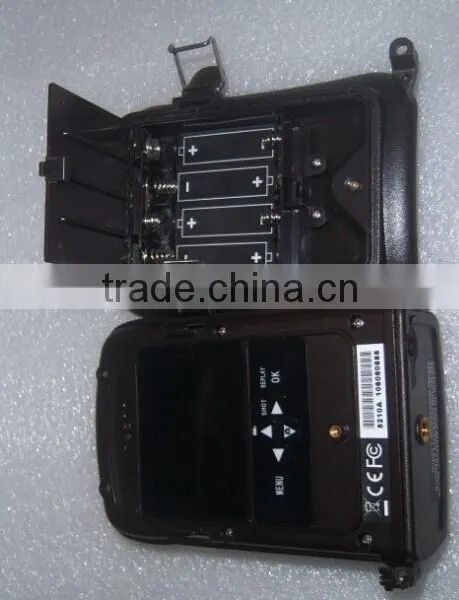

Power Supply

4xAA,Can add to 8XAA(Need the additional battery box)

Yes

Stand-by Current

 0.4mA

Yes

Stand-by Time

3~6 Months(4xAA~8XAA)

Yes

Auto Power Off

Auto power off in 2 minutes while no keypad controlling

Yes

Power Consumption

150mA (+500mA when IR LED lights up)

Yes

Low Battery Alarm

4.2~4.3V

Yes

Interface

TV out (NTSC); USB; SD Card Holder; 6V DC External

Yes

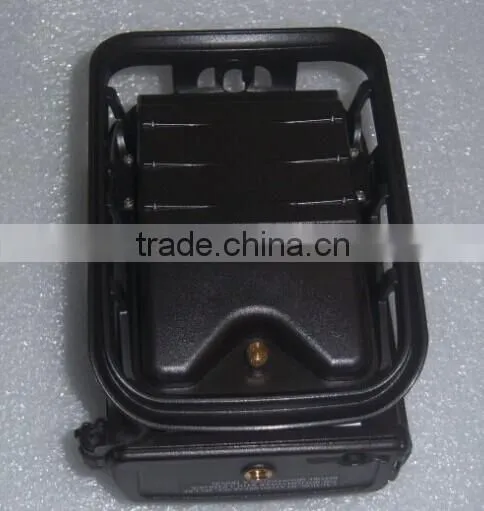

Fix Method

Belt, Tripod Nail

Yes

      Waterproof

IP54

Yes

      Operation Temperature

-30 ~+70°C/-22~+158°F

Yes

Operation Humidity

5% ~ 95%

Yes

Certificate

FCC & CE & RoHS

Yes
