Home > Products > Separator HEPA Filter > deeppleat hepa filter,separator HEPA filter

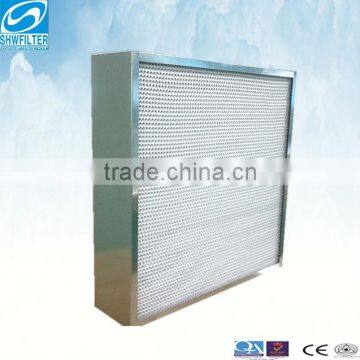

deeppleat hepa filter,separator HEPA filter
- 100 Piece / Pieces per Month
- huangpu China
- Credit Card
You May Like
Product Details
| Condition | New | Efficiency | H13 | |
| Construction | Box Filter | Filtration Grade | Hepa Filter | |
| Medium Material | Paper | Place of Origin | Guangdong, China | |
| Brand Name | SHWFILTER | Model Number | SHW-HY | |
| Dimension(L*W*H) | 610*610*150MM | Certification | CE,ISO |
Product Description
Specifications
1. end filtration of the civil or industrial cleaner places ;2.low loss;
3.high efficiency
Speciality:
Common Applications: Filtering 0.3 microns or less suspended particles in the air, it is widely used in the end filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.
Features: Adopting the superfine fiberglass filter paper or PP high efficiency filter paper as the media, separated by folded glue paperboard, aluminum foil, sealed by the new polyurethane sealant. Low loss, high efficiency, light weight, it is tested precisely one by one.
Separator: aluminum foil, glue paperboard
Frame: laminated wood, galvanized steel sheet, aluminum alloy plate
Temperature resistance: 80 °C
Specification :
Type | Dimensions W*H*D (mm) | Filter Area (m*m) | Rated Airflow (m3/h) | Initial Resistance (Pa) | Maximum Final Resistance (Pa) | Recommended Airflow (m3/h) |
SHW-HY | 305*610*150 | 4.1 | 425 | 235 | 1300 | 250-500 |
610*610*150 | 8.8 | 850 | 235 | 1300 | 500-1000 | |
320*320*220 | 5.3 | 425 | 235 | 2000 | 300-425 | |
484*484*220 | 11.7 | 1000 | 230 | 2000 | 600-1000 | |
630*630*220 | 15.6 | 1500 | 220 | 1800 | 1000-1500 | |
945*630*220 | 24.0 | 2250 | 215 | 1800 | 1500-2250 | |
1260*630*220 | 32.4 | 3000 | 215 | 1800 | 2000-3000 | |
610*610*292 | 17.6 | 1700 | 245 | 2200 | 1000-1900 | |
1220*610*292 | 33.6 | 3400 | 240 | 2200 | 2000-3800 |
1 . The wind speed of unidirectional flow clean system is generally less than 0.45m / s and the inlet side is 0.45m / s (90fpm) according to the test standard;
2 . “Recommended airflow” is only for non-unidirectional flow clean systems, such as dilution systems (also known as turbulent flow clean room)
Note: Other specifications are available on request
