Disposable and replaceable types
Goods description:
It is used as the terminal filtration of air supply system for plant of high cleanliness and clean room to ensure the flow speed and to avoid eddy current effectively.

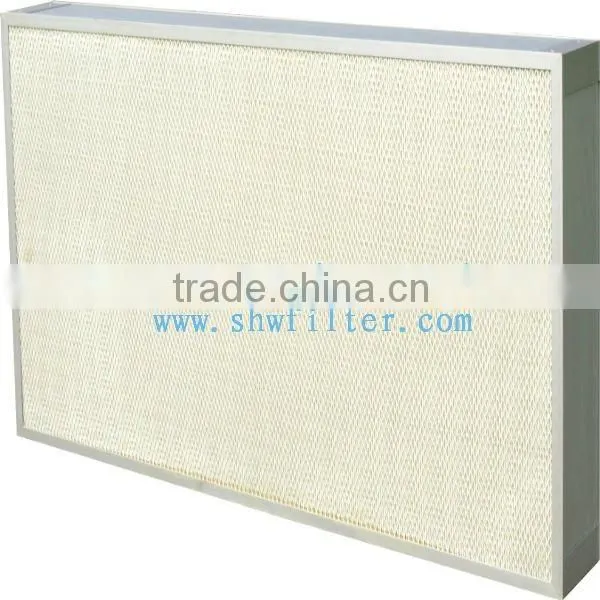

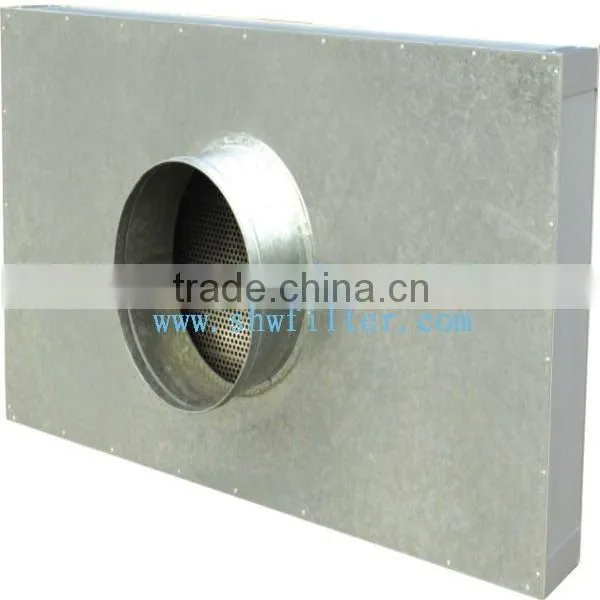

Features: The filter efficiency is over 99.99% for particles ≥0.3 micron and the cabinet is made by high-quality galvanized steel, cold-rolled steel or stainless steel plate with fireproof and insulating layer outside. Adopting folding chip without partitions or replaceable min-pleat filters built-in, superfine fiberglass filter paper, low resistance, high airflow, small volume, compact structure, simple and convenient installation and maintenance; with high-quality electrophoresis bright aluminum or stainless steel mesh panels on the outlet side, beautiful and generous and each one is tested precisely.
Type |
Cabinet Dimensions W*H*D (mm) |
Air Inlet Side Dimensions (mm) |
Initial Resistance and Airflow (Pa & m3/h) |
|||
SHW-DF |
600*600*150 |
Φ250 Φ300 Φ350
|
100 & 550 |
125 & 690 |
150 & 670 |
180 & 970 |
610*610*150 |
100 & 570 |
125 & 715 |
150 & 900 |
180 & 1000 |
||
1200*600*150 |
100 & 1100 |
125 & 1390 |
150 & 1760 |
180 & 1950 |
||
1220*610*150 |
100 & 1150 |
125 & 1440 |
150 &1 820 |
180 & 2020 |
||
Type |
Cabinet Dimensions W*H*D (mm) |
Filter Inside Dimensions (mm) |
Air Inlet Side Dimensions (mm) |
Initial Resistance and Airflow (Pa & m3/h) |
|||
SHW-GF |
600*600*180 |
560*560*69 |
Φ250 Φ300 Φ350
|
100 & 480 |
125&600 |
150&760 |
180&850 |
610*610*180 |
570*570*69 |
100 & 500 |
125&620 |
150&780 |
180&880 |
||
1200*600*180 |
1160*560*69 |
100&1000 |
125&1255 |
150&1590 |
180&1770 |
||
1220*610*180 |
1180*570*69 |
100&1040 |
125&1300 |
150&1650 |
180&1835 |
||
