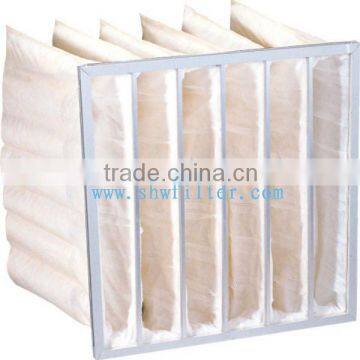

F5 medium efficiency bag air filter

Specifications

1.hot-melt technology 2.firm structure;
3.diffluent and equal airflow;
4.Long working life.









Common Applications:coarse and subtle dust filtration in air conditioning ventilation system



Features:

1.utilizing hot-melt technology, having firm structure and reducing the leaking risk;



2.adopting high-quality electrostatic nonwovens with pockets;



3.with the advantage of diffluent and equal airflow while maintaining bag shape;



ucing consumption and making full use of filter materials without the rupturing danger of old fiber glass and the condition of breeding microbe as well as the discomfort to human.



Long working life and the maximum temperature can reach 80°C



 (Specification)

Average Efficiency	Dimensions W*H*D mm	Pockets	Filter Area	Rated Airflow m3/h	Initial Resistance (Pa)	Recommended Final Resistance (Pa)
35%	595*595*600	6	4.64	4300	40	250
	495*595*600	5	3.87	3500	40	250
	295*595*600	3	2.32	2100	40	250
45%	595*595*600	6	4.64	4000	55	300
	495*595*600	5	3.87	3300	55	300
	295*595*600	3	2.32	2000	55	300
65%	595*595*600	6	4.64	3250	70	350
	495*595*600	5	3.87	2600	70	350
	295*595*600	3	2.32	1650	70	350
85%	595*595*600	6	4.64	3150	95	350
	495*595*600	5	3.87	2550	95	350
	295*595*600	3	2.32	1560	95	350
95%	595*595*600	6	4.64	2800	120	400
	495*595*600	5	3.87	2350	120	400
	295*595*600	3	2.32	1420	120	400

 Other specifications are available on request
