Help CenterFiberglass Air Filter Media
Related Products
Specifications
1 made of fiberglass2 reinforced by expanded aluminum net
3 temperature resistance can be 300 centi-degree
Common Applications: It is mainly used in high-temperature oven of hot air type in painting plant to filter tar, soot, dust and other particles to protect the surface painting.
Features: Media is made of fiberglass by the means of non-fabric superposition, reinforced by expanded aluminum net, not easy to be deformed, fine anti-chemical specialty, temperature resistance can be 300 °C.
Filter Media: fiberglass
Frame: Galvanized frame / Aluminum frame
Specification:
|
Filter Class |
Dimensions W*H*D (mm) |
Rated Airflow (m3/h) |
Average Arrestance |
Initial Resistance (Pa) |
Recommended Final Resistance (Pa) |
Frame |
G3 |
500*500*15 |
1000 |
86% |
45 |
180 |
Aluminum alloy
Galvanized sheet |
G4 |
500*500*25 |
1200 |
90% |
50 |
200 |
|
500*500*46 |
Note: Other specifications are available on request.

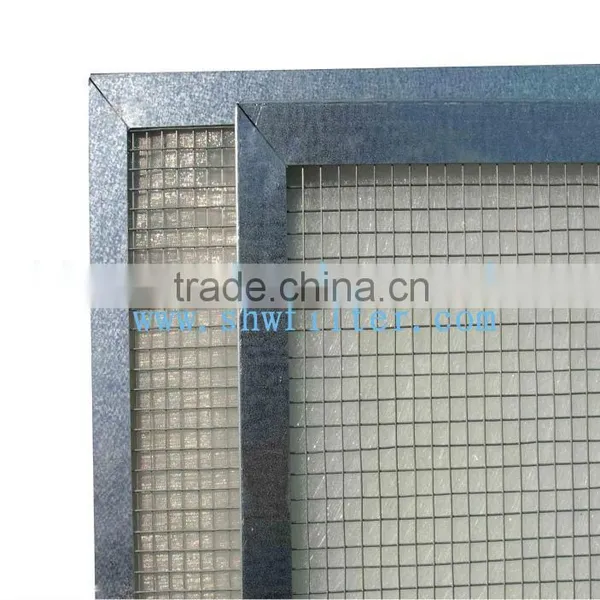

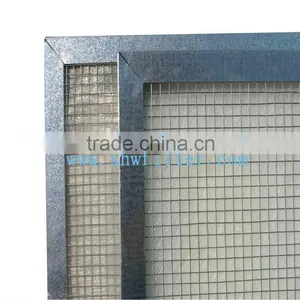

Photo:
Certificates:
