Specifications
deep-pleat structure, high temperature resistance or superfine fiberglass filter paper as the mediahigh temperature sealant
Speciality:
Common Applications: It is mainly used in the areas requiring high-temperature purification equipments and systems of automobile manufacturing, hot air filtration in high temperature spraying environment, food, pharmaceutical and other production processes or the clean oven.
Features: deep-pleat structure, high temperature resistance or superfine fiberglass filter paper as the media, high temperature sealant, special aluminum foil as the separator, special equipment for folding, stainless steel as the framework, its efficiency is up to F9-H14.
Temperature resistance: 250°C and 350°C
(Specification):
Type |
Dimensions W*H*D (mm) |
Filter Area (m2) |
Rated Airflow (m3/h) |
Initial Resistance (Pa) |
|||
H10 |
H12 |
H13 |
H14 |
||||
SHW-HG |
305*305*150 |
2.4 |
250 |
≤150 |
≤190 |
≤220 |
≤240 |
610*610*150 |
10.2 |
1000 |
|||||
1220*610*150 |
20.6 |
2000 |
|||||
320*320*220 |
4.1 |
350 |
|||||
484*484*220 |
9.6 |
1000 |
|||||
630*630*220 |
16.5 |
1500 |
|||||
305*610*292 |
10.1 |
1000 |
|||||
610*610*292 |
20.9 |
2000 |
|||||
Note: Other specifications are available on request

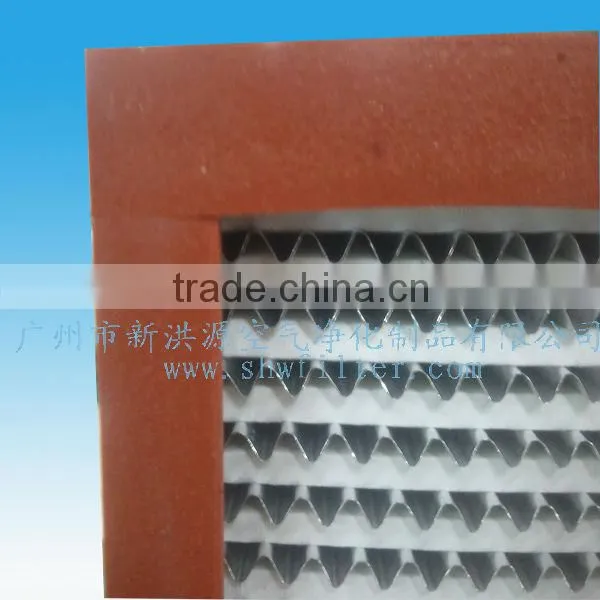

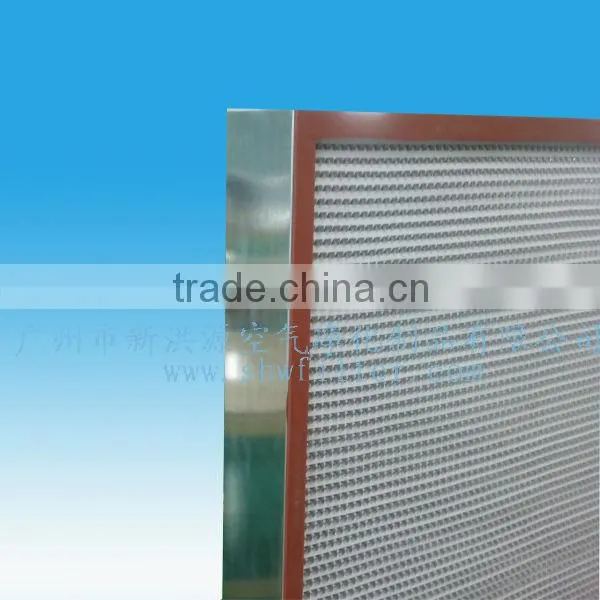

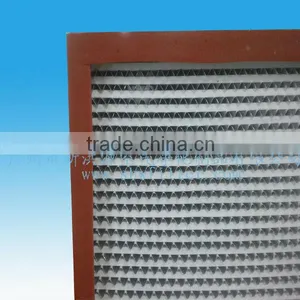

Photos:

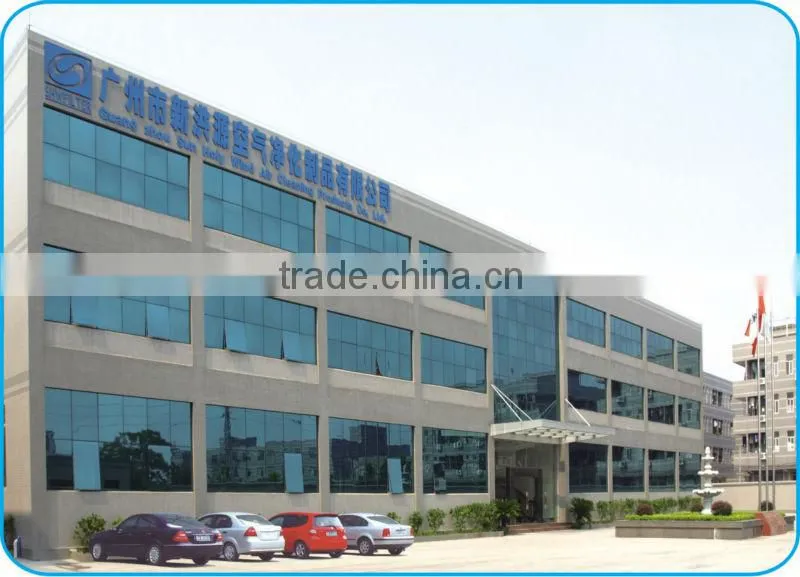

Factory:
