Help CenterPrinting Blanket Belt for Texile
Related Products
Specifications
printing blanket belt for texileHigh strength design
cmopletely enclosed two ways structure
excellent operation performance

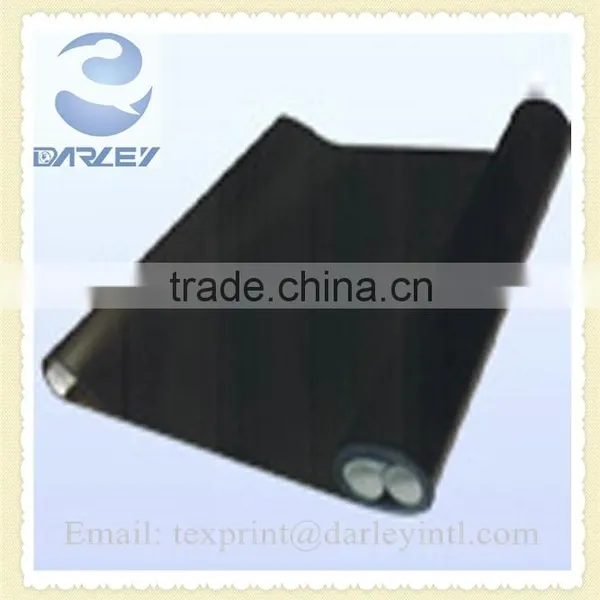

printing blanket belt for texile
The high strength design of the belt
Adopts the state-of-art high module polyester fabrics of the international market as its skeleton.The belt has very high tensile strength and very low linear tensility,and the stiffness and neatness of high width belt is better guaranteed by the stengthening filaments.
Totally-enclosed two-way structure
The printing belt is of totally-enclosed two-way structure,which can fully block the penetration of water and has two-way running function without presetting of running direction.
Distinguished pysical and chemical properties
The universal printing belt has distinguished physical and chemical properties in all respects because it is made of imported high grade synthetic rubber and auxiliative agents.It has the features such as excellent flexibity,resistance to abrasion,resistance to heat,resistance to oxidative aging,resistance to organic solvents such as acetone,ethyl acetate,etc,immiscibility with color paste,oil,and grease,good effect of anti-dirty and ciean-keeping.
High precision sueface via unique grinding process
The universal printing belt has been precisely ground and the precision has reached the world adavanced level of ± 0.05mm ; the even surface with extea-fine granule will bring.The belt can be positive-guided and accurately within very short time.
Wide-spectrum application
Fhe univeal printing belt is widely used for various rotary screen and squre screen roller printing machines, printing boards,and test dyeing machines.
| Belt | NAME |
UNIT | PARA-METER | REMARKS | |
| THICKNESS | mm | 2.6-2.8 | BLADE TYPE | ||
| THICKNESS DEVIATION AMPLITUDE | mm | ±0.05mm | |||
| WIDTH DEVIATION | mm | +2/-1mm | |||
| LENGTH DEVIATION | <20M | +100/-0mm | |||
| >20M | +100-300/0mm | ||||
| LINE STRIGHTNESS PRECISION | <20M | 1mm | |||
| CIRCUMFERENCE DEVIATION | mm | 5mm | |||
| TENSILE STRENGTH | KN/m | >150 | |||
| FIXED LOAD ELONGATION | %(245N/25mm x 4h) | 0.5 | |||
| ADHESIVE STRENGTH | KN/m | 3 | |||
| RUBBER LAYER | TENSILE STRENGTH AT BREAK | MPa | 12 | ||
| ELONGATION AT BREAK | % | 280 | |||
| BREAK RESIDUAL DEFORMATION | % | 25 | |||
| SHORE HARDNESS | degree | 82±5 | |||
| ABRASION LOSS | (1.61km),cm3 | 0.2 | |||
| AIR OVEN AGING TESTING TENSIL STRENGH RATIO AT BREAK | 100°Cx24h,% | 10 | |||
| SOLVENT | PETROL+BEZENE(3:1) | % | 20 | ROOM TEMPRATURE *24HOURS | |
| 20% H2SO4 BREAKING TENACITY RATIO CHANGE | % | 15 | |||
| RESIS-TANCE | 20% NaOH BREAKING TENACITY RATIO CHANGE | % | 15 | ||
| DIMETHYL BEZENE | % | 9.82 | SAMPLE:1cm*1cm*2mm | ||
| ETHYL ACETATE | % | 21.18 | TESTING RESULT FOR REFERENCE ONLY | ||
| TESTING | METHYL BENZENE | % | 18.5 | ||
| ACETONE | % |
23.13 |
|||
