blanket special screen
- 10000 Piece / Pieces per Month
- qingdao
- T/T D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | EURO | Model Number: | 3500*1018x80M |
Use: | Textile Dyeing Machinery | Type: | Rotary Screen |
Product Description
blanket special screen
Use:
This product is for new type rotary printing machine. After install endring on two ends and engraved designs on it, we can put the rotary screen on machine. Suitable for print cotton, silk, polyester, wall paper and etc.
Our raw material of nickel is high purity and with less sulfur. Match it with high quality pure additives. Our products has unparalleled excellence performance. Printing ink penetration uniform, Photo emulsion and Sensitizer adhesion is strong bonding, high toughness, high elasticity, good thickness and uniform open area.
Raw Material :
99.99% Purity nickle
Our rotary nickel screens are in uniform pen area, good toughness and elasticity, uniform transmission of light, Can effectively prevent the printing color difference, uniform thickness, high quality of printing. Strong elasticity make safe operation, Durability, high strength, long life of printing rotary screen mesh, uniform net hole, Precision output pigment, good penetrating quality, high bonding of photo emulsion, printing effect uniform and beautiful
•More tough and tensile, safely operation and multiple use
•orderliness and accurate screen caves, good dye output and osmotic function
•Good symmetrical, good conglutination function of photosensitive medicament
Application:
MESH | SUGGESTED LINE THICKNESS | APPLICABLE PRINTING VARIETY&CHARACTERISTICS |
60-80 | 0.3MM | OSMOTIC PRINTING NORMAL CONTOUR |
100 | 0.25MM | SURFACE PRITING ,FINE COLOR AND FINE DESIGN OF FABRIC |
125 | 0.20MM | SURFACE PRITING OSMOTIC PRINTING ,RESISIT PRINTNG DEEP AND SHALLOW TWO TONES, ETC |
155 | 0.16MM | RESIST PRINTING, HALF-TONE PRINTING &GEOMETRIC FIGURE WITH LEVEL &VERTICAL LINES, ETC |
Specification:
BLANKET SCREEN SPECIFICATION | |||
REPEAT(MM) | 1206/1450/1500/1680/2412 | ||
LENGTH(MM) | 1410-3500 | ||
MESH | THICKNESS(μm) | OPEN AREA(%) | DIAMETER(μm) |
60 | 180 | 18 | 161 |
80 | 180 | 18 | 161 |
Feature: Can replace the flat-bed printing. |

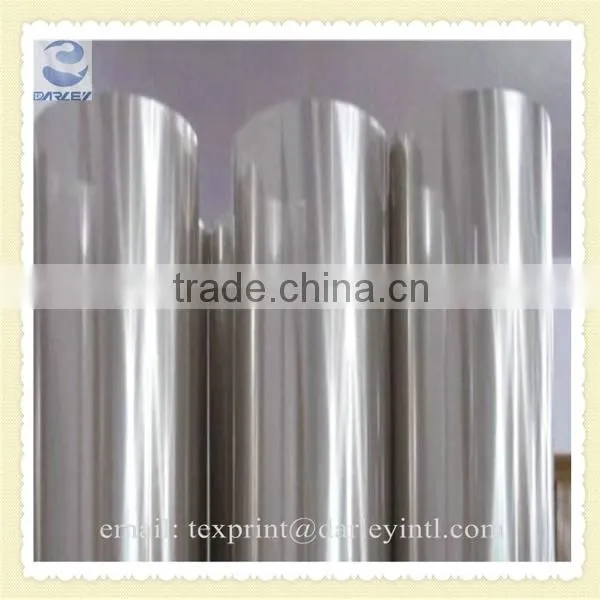

Product picture:
Factory view:
Usage:

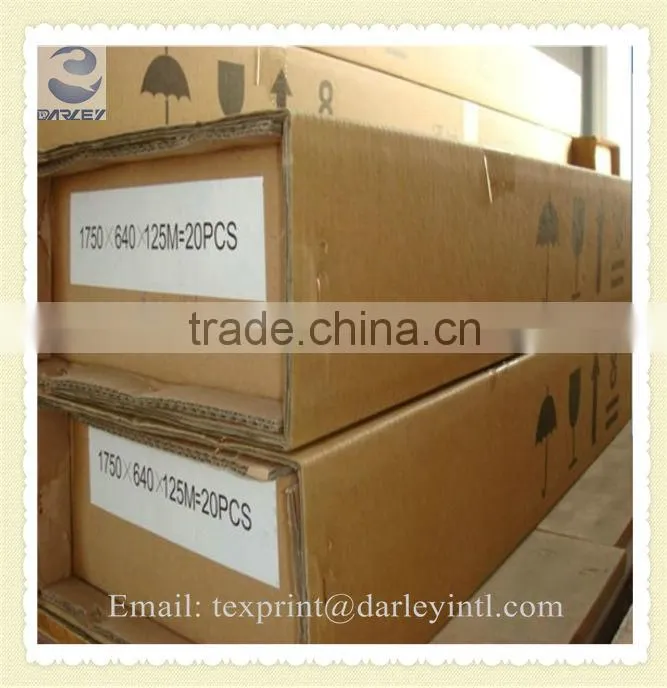

Package:
We are focus on textile printing articles, if you are interested in ,pls don't mind to contact with us.
