novascreen
- 10000 Piece / Pieces per Month
- qingdao
- T/T D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | EURO | Model Number: | 135,165,195m |
Use: | Textile Dyeing Machinery | Type: | Rotary Screen |
Product Description
nova screen
135,165,195MESH
High open area
Brittleless: None existence of brittleness of screens, during/after the rounding and polymerization. Good property of elasticity, provide convenience/ efficiency for the operators during the handling and use of screens. Avoid the screen crack and damage on the rotary printing machine when operation. Can endure 6-7 times stripping by waterjet or LEN.
Save dyestuff: High density of holes, unique involuted hole shape and minimized nickel dam, the coverage of dyestuff paste on the fabrics has largely increased. For the same amount/intensity of dyestuff deposit on surface of fabric, Less squeegee magnetic roller pressure is required. Experiments have proved that up to 19% of paste volume can be saved.
Higer open area allows smooth throughout of dyestuff paste, so that printing speed and efficiency of printing machine can be ascended.
Narrow tolerance of open area(±1%) and thickness(±3 microns) safeguard high consistency of screens, which minimizes the color difference among right, middle and left side of printing width. In addition, it's worry free to pick screens from difference batches due to high level of quality control on consistency.
Automatic screen cutter ensures uniform cutting edge and accuracy, which contribute to higher registration among printing stations for fine design printing.
Combination of extra thickness and high open area meet requirement of special printing requirement such as wax/batik and wall paper printing.
REPEAT(MM) | 640 | ||
lENGTH(MM) | 1410-3500 | ||
MESH | THICKENSS(μm) | OPEN AREA(%) | HOLE DIAMETER(μm) |
135NOVA | 120 | 22 | 88 |
165NOVA | 115 | 19 | 67 |
195NOVA | 115 | 16 | 52 |
165NOVA AND 195NOVA: For better gradation of half tones, as well as finer line width and reproduction of fine details of fabric design.
135NOVA: Hign open area(>25% if needed): For solid printing on knitted fabrics.
Can produce the screen under customer’s special requirements.

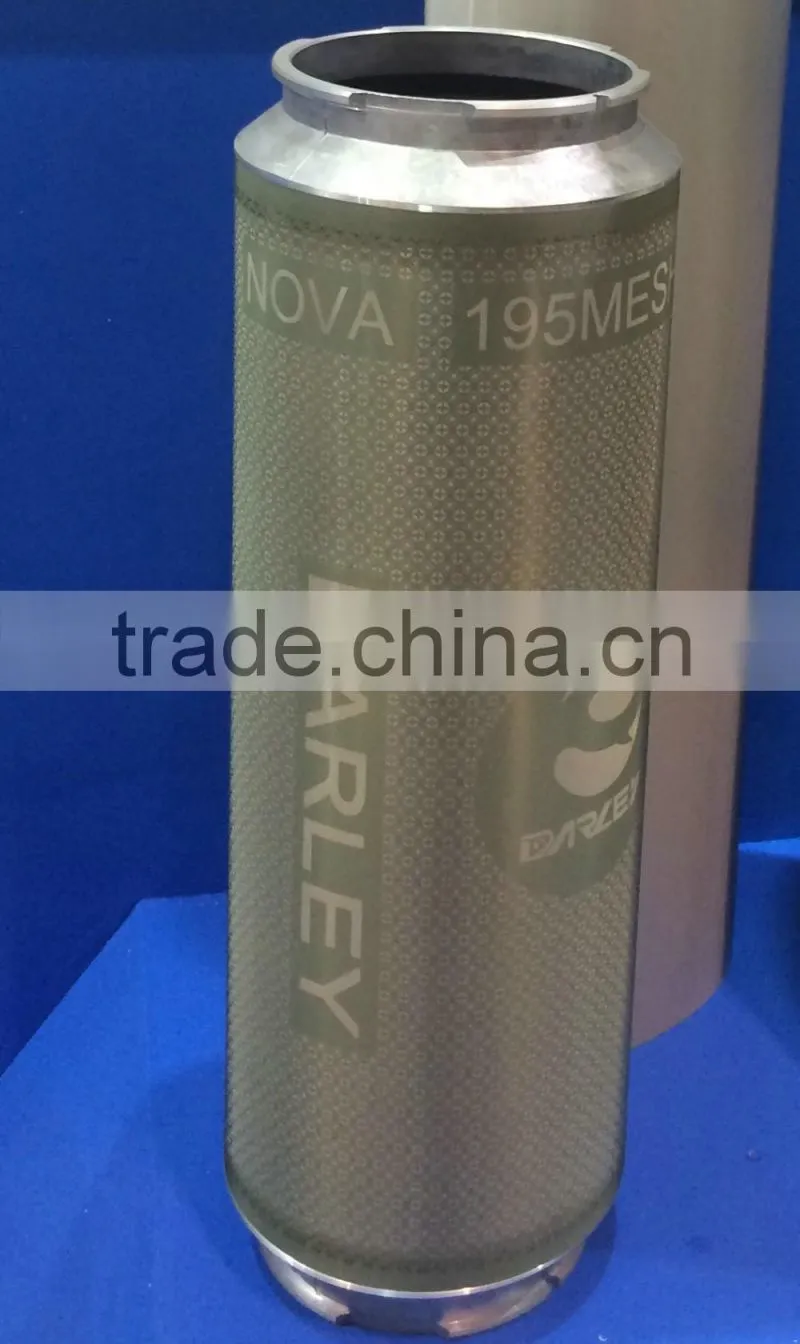

Product picture:
Factory view:
Usage:
Package:
We are focus on textile printing articles, if you are interested in ,pls don't mind to contact with us.
