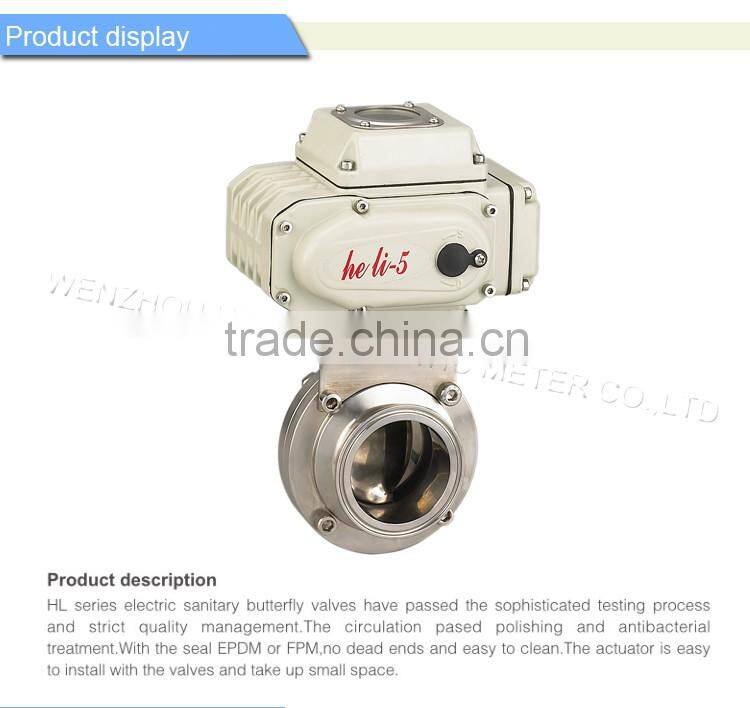

1)Motorized butterfly valve
2)Packing: expot case
3)Protection class:IP-67
4)Input signal:4~20mA,0`10VDC or 1~5VDC
5)Valve material:stainless iron
Model |
HL-05 |
||||||
Voltage |
DC12V |
DC24V |
DC220V |
AC24V |
AC110V |
AC220V |
AC380V |
Motor Power |
10W,20W |
||||||
Rated current |
3.8A |
2A |
0.21A |
2.2A |
0.48A |
0.24A |
0.15A |
Output torque |
30N.m/50N.m |
15N.m/30N.m/50N.m |
|||||
Action time |
6S/10S |
10S/20S/30S |
|||||
Rotary angle |
0~90° |
||||||
Weight |
2.2kg |
||||||
Voltage-with standing valve |
500VAC/1minute |
1500VAC/1minute |
|||||
Insulated resistance |
100 MΩ/300VDC |
100 MΩ/500VDC |
|||||
Protection Class |
IP67 |
||||||
Surrounding temperature |
-25°C~60°C(The other temperatures can be customized) |
||||||
Installation angle |
Any angle |
||||||
Case material |
Aluminium-casting components |
||||||
Optional function |
Overload protection function, Heater |
||||||
We could produce electric ball valve which are all according to the customers requests,also we could choose the best ball valve for our customers,which is the most suitable for the working environment.
