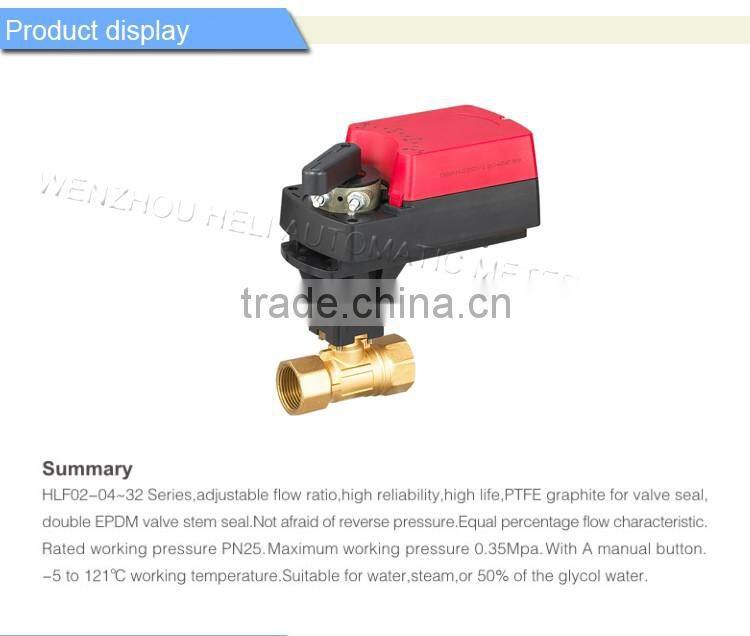

2 Way Ball Valve With Electric Actuator-AC220V

Name: 2 Way Ball Valve With Electric Actuator-AC220V
Brand: HELI
SKU: 117246125
Availability: InStock

US$ 1 - 500 MOQ: 1 Piece

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Ball

Pressure:

Low Pressure

Wenzhou Heli Automatic Meter Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO OR SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Ball

Pressure Low Pressure

Power Other, electromotion

Material Other, ABS engineering plastic

Temperature of Media Low Temperature

Media Water

Place of Origin Zhejiang, China

Model Number HLF02

Brand Name HELI

electric actuator

Model	HLF02 04D	HLF02 08D		HLF02 16D	HLF02 24D	HLF02 32D	HLF02 04A	HLF02 08A	HLF02 16A	HLF02 24A
Output Torque	4Nm	8Nm		16Nm	24Nm	32Nm	4Nm	8Nm	16Nm	24Nm
Max Baffle Plate size	1m	2m		4m	6m	6m	1m	2m	4m	6m
Time for Rotating 90°	35S	30S		80S	125S	140S	35S	30S	80S	125S
Modulating Scope	0~90° (In 5°Incerments)
Operating Voltage	24VAC/24VDC AC220V~230V 50/60Hz AC110V 50/60Hz
Power Rating	4W		3.9W/4.8W		4W	2.5W	4W/4.8W
Control Input	2/3( Flocating Points)					0~10VDC 4~20mA
Position Output						0~10VDC 4~20mA
Driving Shafts	8~32Nm Cylinder shaft size: φ20mm; Square shaft size: 16x16mm
	4Nm Cylinder shaft size: φ16mm; Square shaft size: 12x12mm
Housing	ABS engineering plastic
Ambient Temperature	Operation:-20~+50°C Storage:-40~+80°C
Relative Humidity	0~90%RH
Protection	IP54
Noise Grade	45Db (A)
Net Weight	8~32Nm: 1.1kg 4Nm :0.7kg
Certificate	CE, ISO9001
Usage life	60,000

Easy installation:
- Fix the actuator to the damper shaft by universal grip
- Various fixing support of special actuator (refer to the photo of the standard configuration of installation support) will be supplied according to the customers' requirements
- By adjusting the pot, the rotation angle of the actuator can be adjusted and the matching of working range and feedback signal will be completed automatically
Convenient function checking:
- The testing for the function of damper operation is convenient as well by pressing the manual button of the actuator, the actuator will escape from the gearing
- User can operate the damper manually by pressing the manual button without releasing operation without power is forbidden
- Good and reliable performance
- With the function of overload protecting, actuator adopts dual-rotation hysteresis Synchronous motor, unnecessary with limitation switch, the actuator will stop by clutching the actuator when running to the end
