punch for sheet with cost price
1.Application

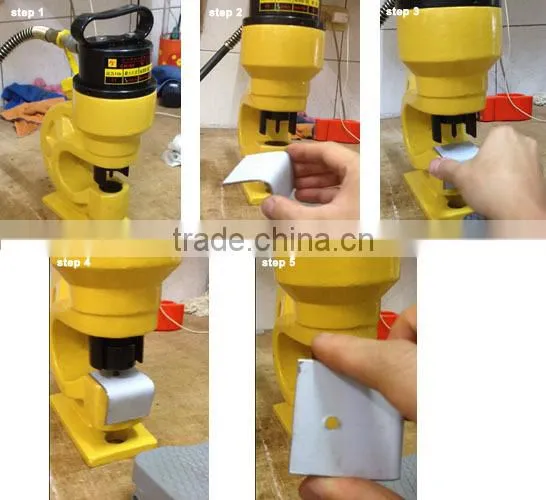

1> Suittable for pinching holes on L and H shape iron plate,copper&aluminum busbars.
2> Flat pedestal to provide steadiness in operation.
3> Punch dies made of high carbon tungsten steel and not easy to wear off.
| Model | Tonnage(T) | Aperture(inch) | Max.thickness(mm) | Stroke(mm) | Weight(kg) | Volume(cm) | |
| Iron steel | Copper busbar | ||||||
| CH-60 | 30 | Φ3/8"-Φ3/4" | 8 | 10 | 95 | 21 | 26x16x39 |
| CH-70 | 35 | Φ3/8"-Φ3/4" | 10 | 12 | 110 | 37 | 33x20x39 |
| CH-80 | 50 | Φ16-Φ25 | 16 | 20 | 125 | 42 | 37x22x39 |
| CH-80B | 50 | Φ16-Φ25 | 18 | 22 | 140 | 82 | 38x22x44 |

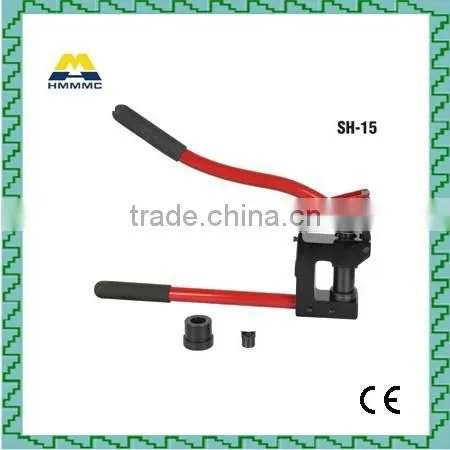

1> Aluminum head provides strength with minimun weight,reducing operator fatigue.
2>Contoured handle design gives better operator leverage and makes it possible to punch in tighe places.
3>Self-stripping design eliminates punch Hang-ups.
4>Automatically centers holes on standard studs.
| Model | Output(T) | Aperture(in) | Max.thickness(mm) | Weight(kg) | Volume(cm) |
| SH-15 | 5 | Φ22-Φ34 | 1mm | 5.2 | 50x28x8 |
1> SH-8 metal punching machine is a kind of 1.0 mm stainless steel plate under the opening of advanced manual hydralic tools.
2> The device while I was playing the sink, simple operation, energy saving, high speed, processing with smooth surface is bright and clean.
| Model | Output(T) | Aperture(in) | Max.thickness(mm) | Weight(kg) | Volume(cm) |
| SH-8 | 5 | Φ26-Φ35 | 1mm | 17.5 | 48x26x13 |
1> Universal open work for the head can be arbitrary rotation use, and don't need high pressure tubing.
2> Light weight, easy to carry, easy to use
| Model | Output | Max.stroke | Max.thickness | Punch | Standard dies(mm²) | Weight | Volume(cm) | |
| (T) | (mm) | range | (kg) | |||||
| (mm²) | ||||||||
| Stainless | Iron | |||||||
| steel | steel | |||||||
| NYK-8 | 8 | 22 | 1.6 | 3.2 | 16-60 | Φ22,Φ27,Φ34,Φ43,Φ49,Φ60 | 9 | 50x32x15 |
| NYK-8A | 8 | 20 | 1.6 | 3.2 | 16-60 | Φ22,Φ27,Φ34,Φ43,Φ49,Φ60 | 8 | 48x26x14 |
| NYK-8B | 8 | 20 | 1.6 | 3.2 | 16-60 | Φ22,Φ27,Φ34,Φ43,Φ49,Φ60 | 9 | 50x32x15 |
1> The finished distributor,on-off case and plate can change the specification at any time.It can changethe size of the mould simply, and will not destroy the sutface at all after drilling hole.
2> we can make the mould according to customer's requirment,quick delivery.
3> When order rectange and square mould,please measure the correct dimension.
| Model | Output | Max.stroke | Max.thickness | Punch | Standard dies(mm²) | Weight | Volume(cm) | |
| (T) | (mm) | range | (kg) | |||||
| (mm²) | ||||||||
| Stainless | Iron | |||||||
| steel | steel | |||||||
| SYK-8 | 8 | 16 | 1.6 | 3.2 | 16-60 | Φ22,Φ27,Φ34,Φ43,Φ49,Φ60 | 12 | 48x26x13 |
| SYK-8A | 10 | 25 | 3 | 16-51 | Φ16,Φ20,Φ26.2,Φ32.5,Φ39,Φ51 | |||
| SYK-8B | 10 | 25 | 3 | 22-60 | Φ22,Φ27.5,Φ34,Φ43,Φ49,Φ60 | |||
| SYK-8D | 8 | 22 | 1.6 | 3.2 | 16-60 | Φ22,Φ27,Φ34,Φ43,Φ49,Φ60 | 13 | 48x26x14 |
| SYK-15 | 12 | 22 | 2 | 4 | 16-114 | Φ63,Φ76,Φ80,Φ89,Φ100,Φ114 | 27 | 48x26x13 |
| SYD-35 | 12 | 10 | 1.5 | 26-35 | 12.5 | |||
Q1: What certificate do you have?
A. We have ce certificate.
