Specifications

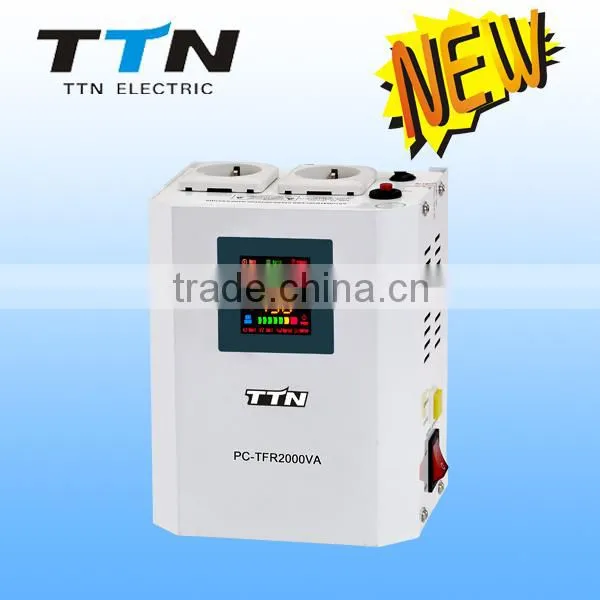

PC-TFR500VA-2000VA Wall Mount Relay Control Automatic Voltage Regulator

 1.  PC-TFR series Wall Mount Relay control voltage stabilizer has the low energy consumption,the over voltage protection,the low voltage protection,the over-current protection,the over-loading protection,the over-temperature protection and so on.It boasts for many kinds of protections,the collection energy conservation and the environmental protection ect.This is a brand-new concept product which possess many new technologies!This series products simultaneously ha applied for many technical monopolies

   We already applied many kinds of this products patent, and the technical patent NO: 200720036394.1     and Appearance paten NO: 200730025909.3

2. Use for equipment:

   Computer

   Test equipment

   Light system

   Safe alarm system

   Ray equipment

   Medical equipment

   Copy machine

   Stereo equipment

   Numerical control machine tools

   Industrial automation equipment

   Color and drying equipment

   Test equipment

   Hi-Fi equipment

3.  PERFORMANCE

MODEL	PC-TFR500VA			PC- TFR 800VA	PC- TFR 1000VA		PC- TFR 1500VA	PC- TFR2000VA
TECHNOLOGY	RELAY CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL
LED DISPLAY	INFORMATION	INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION
	PROTECTION	Over Voltage				Output Voltage≥243±4v
		Low Voltage				Output Voltage≤188v±4v
		Over Loading				More Than 120%
		Over Temperture				120°C±10°C
		Delay Time				Long time(255 seconds)/Short time(5 seconds)
		Creepage
	Language	English/Russia/Chinese
Input Voltage	AC150-270V(A TYPE);AC135-AC270V(B TYPE);AC105-AC270(C TYPE);AC80V-AC270V(DTYPE)
Output Voltage	220+/-10% adjustable
Frequency	50Hz/60Hz
Phase	Single phase
Efficency	≥90%
Ambient Temperature	-15°C-45°C
Relative humidity	<95%
Waveform distortion	No additional wave from distortion
Insulation resistance	Normally more than 2MΩ
Power	500VA		800VA		1000VA		1500VA	2000VA
Packing size(cm)	60.3*27.2*34.9		60.3*27.2*34.9		60.3*27.2*34.9		60.3*27.2*34.9	60.3*27.2*34.9
Packing (pcs)	6		6		6		6	6
G.M(KGS)	17.00		18.66		20.56		21.85	27.35
