Specifications

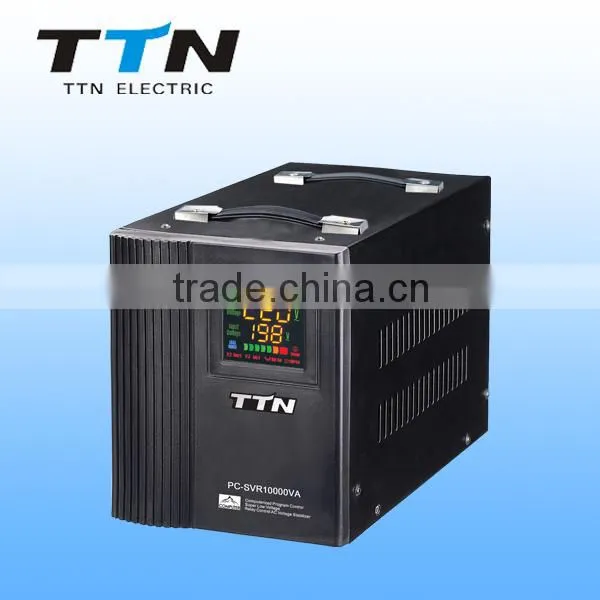

PC-SVR500VA-12KVA Relay Control Automatic Voltage Regulator1. PC-SVR series Relay control voltage stabilizer has the low energy consumption,the over voltage protection,the low voltage protection,the over-current protection,the over-loading protection,the over-temperature protection and so on.It boasts for many kinds of protections,the collection energy conservation and the environmental protection ect.This is a brand-new concept product which possess many new technologies!This series products simultaneously ha applied for many technical monopolies
We already applied many kinds of this products patent, and the technical patent NO: 200720036394.1 and Appearance paten NO: 200730025909.3
2. Use for equipment:
Computer
Test equipment
Light system
Safe alarm system
Ray equipment
Medical equipment
Copy machine
Stereo equipment
Numerical control machine tools
Industrial automation equipment
Color and drying equipment
Test equipment
Hi-Fi equipment
3. PERFORMANCE
MODEL |
PC-SVR500VA |
PC-SVR800VA |
PC-SVR1000VA |
PC-SVR1500VA |
PC-SVR2000VA |
|||
PC-SVR3000VA |
PC-SVR5000VA |
PC-SVR8000VA |
PC-SVR10000VA |
PC-SVR12000VA |
||||
TECHNOLOGY |
RELAY CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL |
|||||||
|
LED DISPLAY |
INFORMATION |
INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION |
||||||
|
PROTECTION |
Over Voltage |
Output Voltage≥243±4v |
||||||
Low Voltage |
Output Voltage≤188v±4v |
|||||||
Over Loading |
More Than 120% |
|||||||
Over Temperture |
120°C±10°C |
|||||||
Delay Time |
Long time(255 seconds)/Short time(5 seconds) |
|||||||
Creepage |
|
|||||||
Language |
English/Russia/Chinese |
|||||||
Input Voltage |
AC150-270V(A TYPE);AC135-AC270V(B TYPE);AC105-AC270(C TYPE);AC80V-AC270V(DTYPE) |
|||||||
Output Voltage |
220+/-10% adjustable |
|||||||
Frequency |
50Hz/60Hz |
|||||||
Phase |
Single phase |
|||||||
Efficency |
≥90% |
|||||||
Ambient Temperature |
-15°C-45°C |
|||||||
Relative humidity |
<95% |
|||||||
Waveform distortion |
No additional wave from distortion |
|||||||
Insulation resistance |
Normally more than 2MΩ |
|||||||
Power |
500VA |
800VA |
1000VA |
1500VA |
2000VA |
|||
Packing size(cm) |
35.8*30.3*42.3 |
35.8*30.3*42.3 |
35.8*30.3*42.3 |
35.8*30.3*42.3 |
39.6*35.3*46.7 |
|||
Packing (pcs) |
4 |
4 |
4 |
4 |
4 |
|||
G.M(KGS) |
12.33 |
13.25 |
14.51 |
15.27 |
24.66 |
|||
Power |
3000VA |
5000VA |
8000VA |
10000VA |
12000VA |
|||
Packing size(cm) |
38.6*27.7*29.8 |
38.6*27.7*29.8 |
43.3*27.7*29.8 |
44.2*30.4*37.1 |
44.2*30.4*37.1 |
|||
Packing (pcs) |
1 |
1 |
1 |
1 |
1 |
|||
G.M(KGS) |
11.66 |
16.89 |
18.75 |
25.55 |
27.85 |
|||
