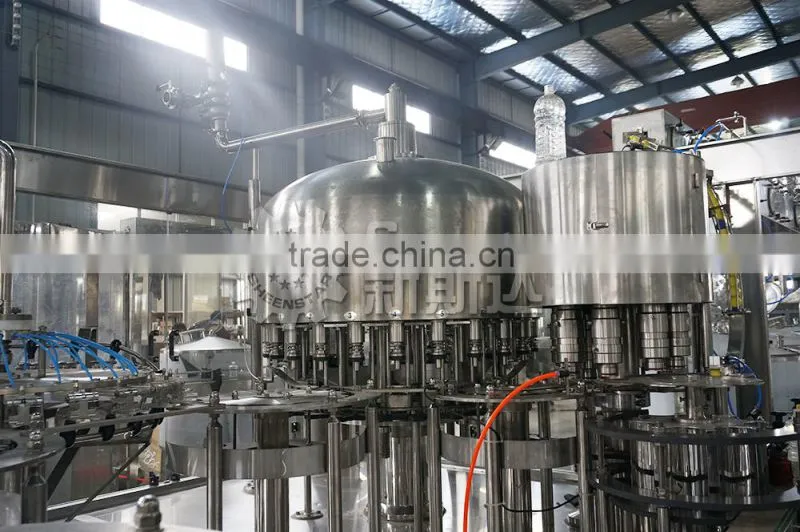

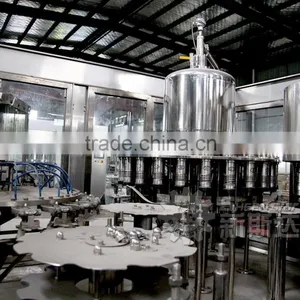

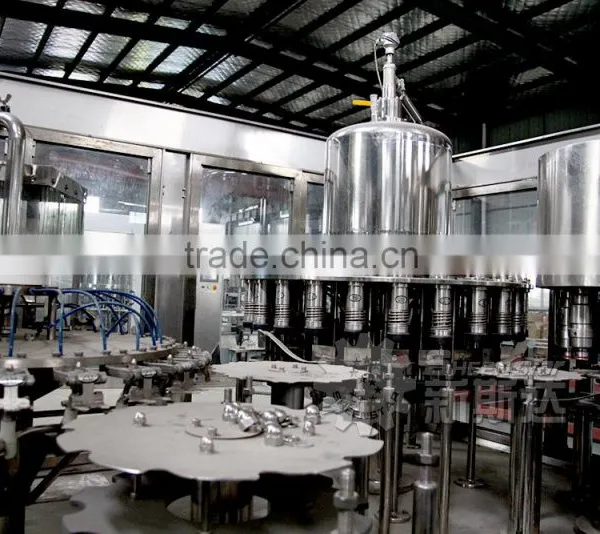

Automatic Tea beverage drink processing line
1. Using the wind sent access and thumb wheel, it is easy for customer to change the different bottle, which can keep the bottle shape and high-speed.
2. With clamp hanging the bottle neck, change bottle no need to adjust the height of the bottle, only change the guide plate which is related with the bottle body.
3. Washing bottle mouth with special designed washing manipulator, clip in the bottle neck, stable and avoid secondary pollution.

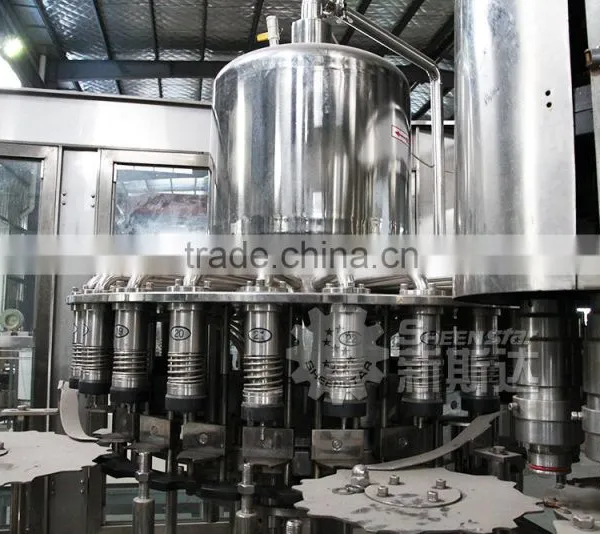

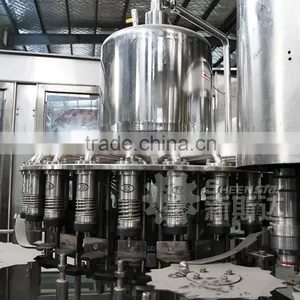

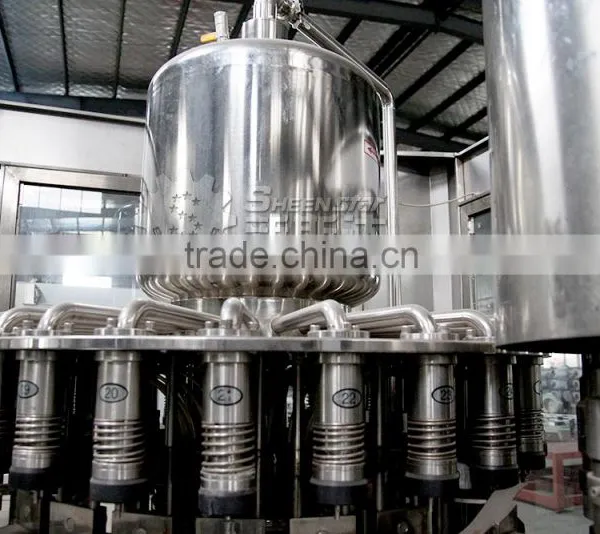

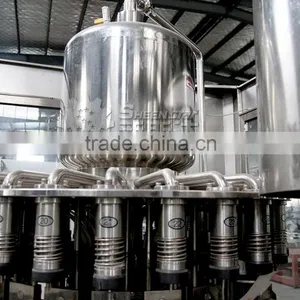

4. Filling: The clean bottle will from the washing part to the filling part, it will move up or down by the lifting structure, between this process, the bottle will top the filling valve and then start to fill, the capacity is controlled by transducer.
5. Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.
6. The cap sorting device is installed in the above of the capping part, the cap will be sorted and come into the capping part by conveying. And the cap is sent to the cap sorting device by fan.
Image show
Technical data
MODEL |
RCGF14-12-5 |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-10 |
RCGF40-40-12 |
RCGF50-50-15 |
PRODUCTION CAPACITY(500ML BPH) |
2000-2400 |
4000-6000 |
6000-10000 |
10000-15000 |
15000-20000 |
20000-24000 |
FILLING PRECISION |
LIQUID LEVEL±2MM |
|||||
BOTTLE SIZE(MM) |
DIAMETER50-100 HEIGHT 150-310 |
|||||
CAP SHAPE |
PLASTIC SCREW CAP |
|||||
WASHING WATER PRESSURE(MPA) |
0.2-0.25 |
|||||
GAS CONSUMPTION(M3/MIN) |
0.1 |
0.1 |
0.4 |
0.5 |
0.5 |
0.6 |
POWER(KW) |
3 |
4.4 |
5.2 |
6.2 |
7.8 |
10 |
WEIGHT(KG) |
2000 |
2800 |
4500 |
6000 |
7000 |
9500 |
DIMENSIONS(L*W*H MM) |
2080*1560*2130 |
2360*1830*2250 |
2900*2200*2250 |
3880*2200*2250 |
3700*3000*2350 |
4500*3500*2400 |
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
3.If we get the permission of the customers who have bought the machines from us,we can provide you their contact information and you can go and visit.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty with spare parts free
Zhangjiagang Sheenstar Technology Co., Ltd. has been specialized in the production of beverage machinery for many years. is a professional manufacturer of beverage packaging solutions. we have rich experience in manufacturing and maintenance.We supply water treatment, water filling production line, carbonated drink making filling production line, juice making filling production line, 5 gallon filling production line, labeling machine and shrink packing machine. With our machines, bottles can be plastic bottle, glass bottle barrel and cans.different sizes bottle from 100ML to 20L can be filled.
We are providing customized services to supply customers with the most suitable machine.
Cooperation Brand
To make the machine has a long life,and Reduce the maintenance,we buy the materials from famouse company,who has branch all over the world,and can quikly help you with some problems.
Ceritifications
we have been certificated by the famous cercification authority.The BV company and The alibaba can make sure that our factory can be trusted by you.
Company Management
Our company has different department to finish different things,the sales in our company has been trained about the machines ,they are professional to help you.
Production Capacity
We can produce 10 complete lines ,30 machines per month.
