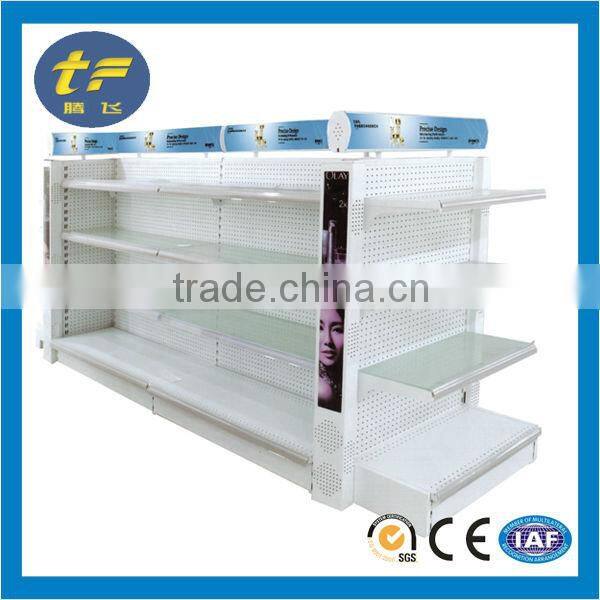

Supermarket Shelves Moden Style in China

Specifications

Product features:

(1)Resonable struction, excellent load capacity,

(2)Concise/durable/firm/beautiful appearance,

(3)Passed many types of tests, acid alkali resistance,

(4)Easy to assemble and dismantle, be freely to adjust the distance of layer boards.

Configuration of products:

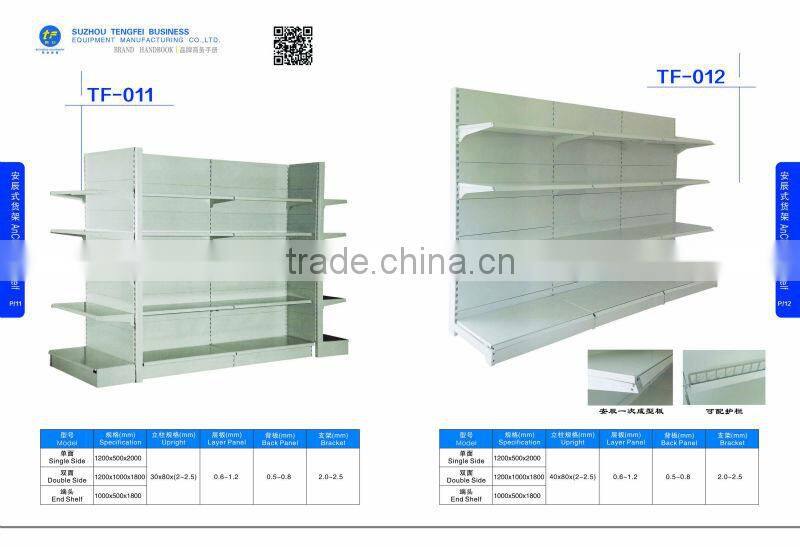

(1)Single side:1200*450*2000mm , (L*W*H) ,(Selectable configuration as customize),

(2)Double sides:1200*916*2000mm, (L*W*H),(Selectable configuration as customize),

(3)End shelf(Tip rack): 1000*450*2000mm, (L*W*H),(Selectable configuration as customize),

(4)Upright post:40*60*2000*2.0mm ,(Selectable configuration as customize),

(5)Thickness of layer board: 0.6mm,(Selectable configuration as customize),

(6)Thickness of upright post: 40*60*2.0mm ,(Selectable configuration as customize),

(7)Surface treatment: powder coating/plastic spray,

(8)Packing: layer boards in cartions and upright posts wrapped by Nylon bags.

Superiority:

(1)Accept every clients' special own designs,

(2)Excellent producing ability,

(4)High quality with reasonable price,

(5) Very good public praise  during the field of commercial equipment.

Selectable configuration:

(1)Thickness of layer board: 0.4mm/0.5mm/0.6mm/0.7mm/0.8mm/1.0mm,

(2)Thickness of upright post: 1.8mm/2.0mm/2.5mm/3.0mm/3.5mm

(3)Thickness of back panel: 0.4mm/0.5mm/0.6mm/0.7mm/0.8mm/1.0mm,

(4)Thickness of bracket: 1.5mm/1.8mm/2.0mm/2.5mm/3.0mm/3.5mm/3.8mm,

(5)Type of back panel: perforated/plain/mesh

(6)Length: 900mm/1000mm/1200mm,

(7)Width: 35mm/40mm/45mm/50mm,

(8)Height: 1200mm to 2400mm,

(9)Layer quantity: 3 to 7 pcs,

(10)Load capacity: 60kg to 120kg/per layer,

(11)Color: RAL series.
