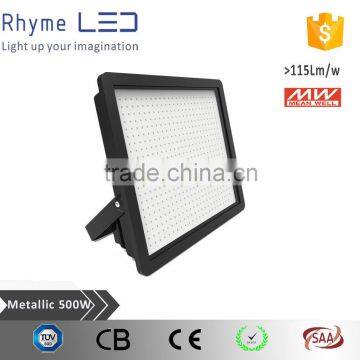

High Quality 120degree 500w Floodlight With Meanwell Drive

FOB Price

US$ 298.00 - 318.86 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Philip LUXEON 2D	Input Voltage(V)	AC100-277V
Lamp Power(W)	500	Lamp Luminous Flux(lm)	5200
Lamp Luminous Efficiency(lm/w)	105	Color Temperature(CCT)	Other, 2700K-6500K
Working Temperature(℃)	-10, 45	Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum	IP Rating	IP66
Certification	BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE	Place of Origin	Jiangsu, China
Brand Name	RhymeLED	Model Number	F3C-500

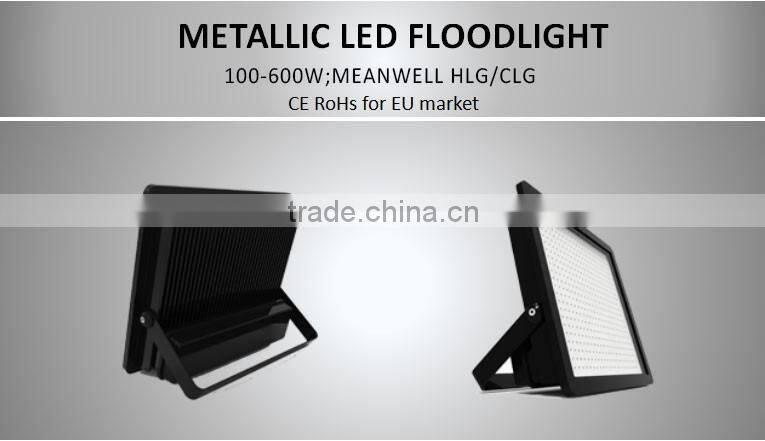

high quality 120degree 500w floodlight with Meanwell drive

1. Top quality Philip Luxeon LED, lumen efficiency of lamp fixture above 115Lm/w

2. Big aluminum PCB, lower junction temperature because of sparse lay out

3. Inside driver design and IP66 protection, safe and reliable for outdoor using

4. World famous brand power supply, 5 Years warranty and global after sales service

5. Ultra-slim sleek design and sequare die-casting radiator, better heat dissipation and stronger lamp fixture

Quick Details:

1. Item Name	high quality 120degree 500w floodlight with Meanwell drive
2. Country of origin	China (Minland), Jiangsu Province.
3. MOQ	1-100 PCS
4. Departure Port	SHANGHAI Port /or NINGBO Port
5. Samples Time	(1) 3-5 days-If you want to customize your logo. (2) 1 day-For our existing samples for reference.
6. Lead Time	15-20 days for 5000pcs LED floodlight
7. OEM	OEM service available,since we have own die-casting factory
8. Supply Capicaty	10000 pcs per month

1, Product Datasheet

ITEM	F3C-100	F3C-150	F3C-200	F3C-240	F3C-300	F3C-400	F3C-500	F3C-600
Rated Power(W)	100W	150W	200W	240W	300W	400W	500W	600W
Comparable Traditiona l Metal Halide	250W~400W		400W~600W		400W~750W	750W~1000W	1000W~2000W
Input Voltage(V)	AC100~240V / 50~60Hz		AC100~277V / 47~63Hz
Power Factor	>0.9
Power Supply Brand	MEANWELL CLG		MEANWELL HLG
LED Brand	Philip Luxeon 2D
LED Type	SMD 3030
LED QTY	100PCS	150PCS	200PCS	240PCS	360PCS	480PCS	540PCS	660PCS
Luminous Flux(LM)	10,000Lm	15,000Lm	20,000Lm	24,000Lm	34,500Lm	46,000Lm	52,500Lm	63,000Lm
Lumious Efficiency (Lm/w)	>100Lm/W.				>115Lm/W.		>105Lm/W.
Color Temperature	2700K~6500K (Typical 3000K/4000K/5000K/6000K)

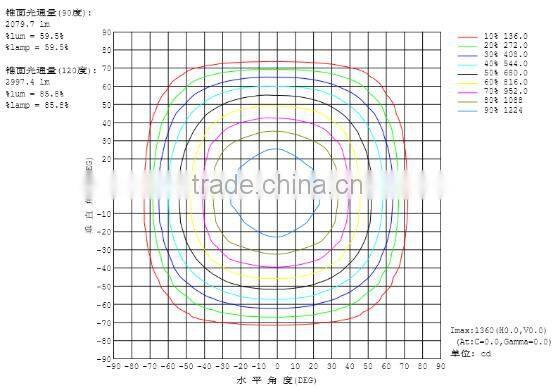

Beam Angle	120° (Any other Beam Angle is available by lens, such as 10°/25°/40°/60°, that is for projection lighting)
Ra(CRI)	>70(>80)
IP Rating	IP66
Dimmable(Y/N)	Y/N

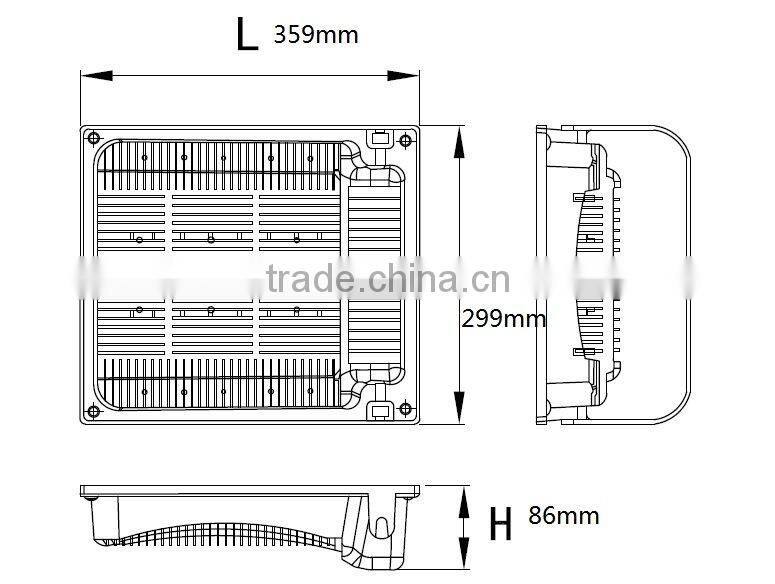

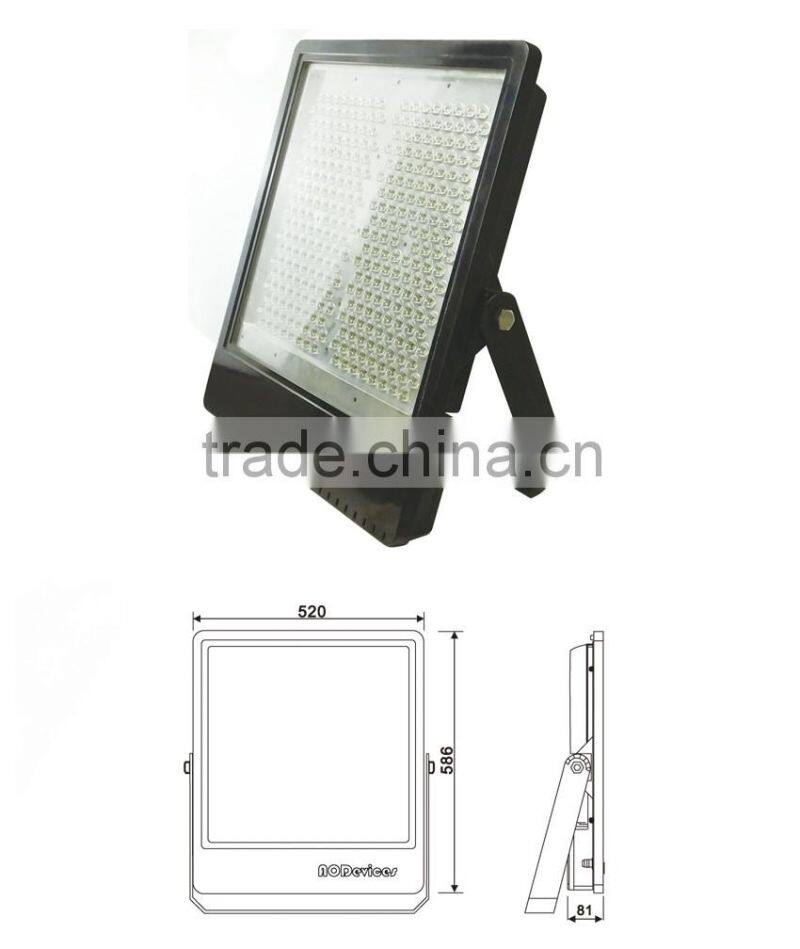

Dimension(MM)	29935986MM		429379106MM		520586145MM
Materials	Aluminium, Tempered Glass
Finished color	Black / Silver
Lifespan	50,000Hours
Warranty	5 Years
Certificates	CE, RoHS, ErP
Operating Temperature	-10℃~45℃
Storage Temperature	-20℃~55℃
G.W.(KG)/CTN	7.20Kgs	8.20Kgs	9.90Kgs	10.90Kgs	16.50Kgs	17.50Kgs	18.50Kgs	19.50Kgs
N.W.(KG)/CTN	6.50Kgs	7.60Kgs	9.00Kgs	10.00Kgs	15.00Kgs	16.00Kgs	17.00Kgs	18.00Kgs
PCS/CTN	1 PC
PACKAGE(CM)	463615 CM		544215 CM		575620 CM
QTY of 20'GP	1170PCS		825PCS		440PCS

2,Product details;

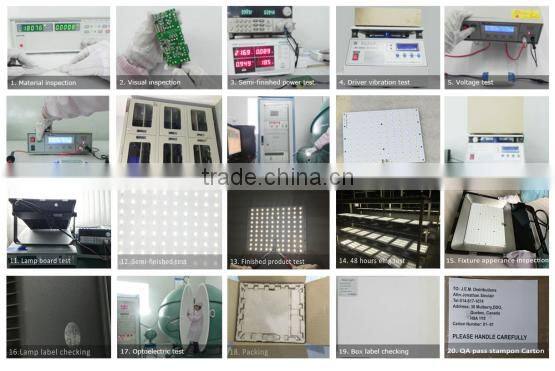

Production flow chart:

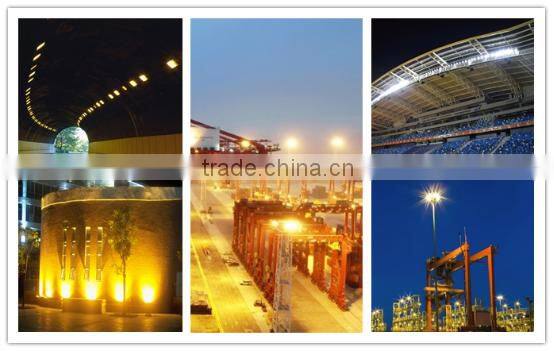

Application:
