Specifications
Feed Plletizer Production Line1. ISO9001:2008, CE Certification
2. intelligent control
3. easy maintance
4. speedy

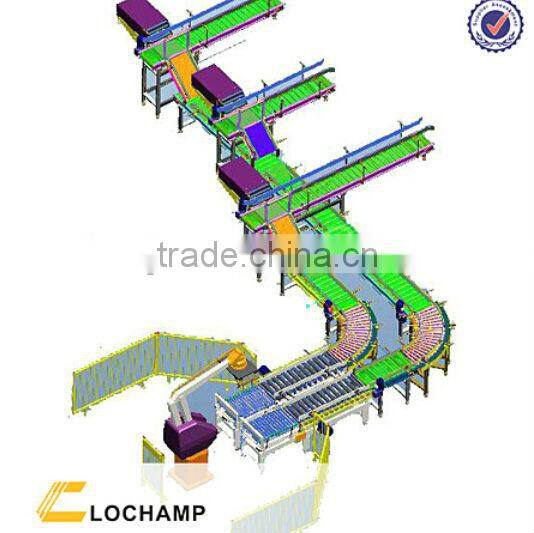

LOP Intelligent Feed Palletizer Production Line
Feed Plletizer Production Line Introduciton:
Fully automatic packing and robot palletising machinery and engineering, bulk storage and handling system, tons of packing machine, automatic sewing and other extension products, widely used in feed, grain, food, port and chemical industry, pharmaceuticals, cement, building materials and light industrial sectors.

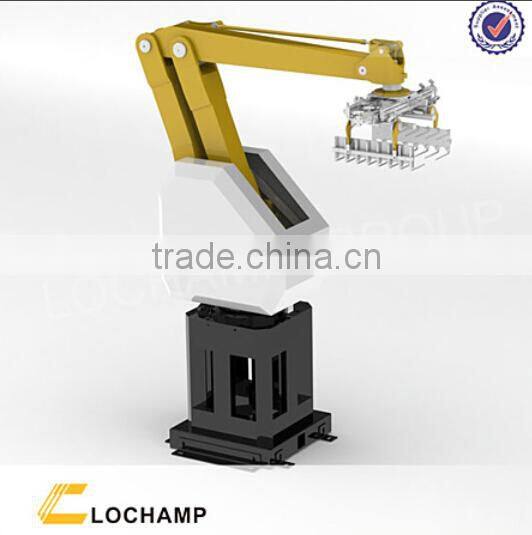

√ Unique linear executing mechanism
- Ingenious four-links mechanism enables robot programming easier, control mor precise.
√ Energy-saving arm design
- High-intensity aluminium aloy arm makes robot more speedily, also saves the power consume.

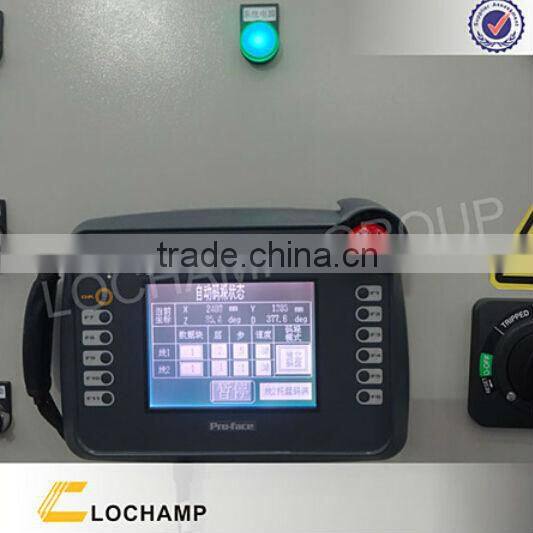

√ Simple teaching and friendly graphical HMI
- Less teaching point and graphical menu gives a much shorter start-up time, the initial operating on site becom easierand more efficient
- Thanks to the high-precise simulation software, we are sure that the process will function correctly on a PC in advance. Collision detection prevents costly damage to your equipment.
- 3D simulation software, allows robot programming to be done on a PC in the offce. Processes like layout creation, collision detection and motion simulation become easier and more efficient. This shorten the initial operating time on site and increase overall productivity greatly.
Feed Plletizer Production Line Parameter:
Model |
EC-61-M |
EC-101-M |
EC-171-M |
EC-201-M |
|||
HD/HS |
HD/HS |
HD/HS |
HD/HS |
||||
Weight Of Bag |
70-160kg |
70-160kg |
70-130kg |
160kg |
|||
Capacity |
850c/hr |
1100c/hr |
1500c/hr |
1600c/hr |
|||
Degree Of Freedom |
Standard 4 axes(up to 5axes) |
||||||
|
Operational Space |
Z-Axis(vent) |
2300mm |
2300mm |
2400mm |
2300mm |
||
R-Axis(long) |
1500mm |
1500mm |
1600mm |
1500mm |
|||
Θ-Axis(turn) |
330° |
330° |
330° |
330° |
|||
α-Axis(wrist) |
330° |
330° |
330° |
330° |
|||
Memory |
Standard30(Max 400) |
||||||
Power(200v/3PH/50HZ) |
1.9KVA |
2 KVA |
3 KVA |
6.5 KVA |
|||
Compress Air |
0.5Mpa |
0.5Mpa |
0.5Mpa |
0.5Mpa |
|||
Main Body Weight |
700kg |
800kg |
750kg |
1150kg |
|||
Feed Plletizer Production Line Details:
Why choose Lochamp Group?
---good reputation, good products, good service!
1. Good reputation
After 18 years development, Lochamp has grown to be the leading enterprise in the north of China, acknowledged as “Keeping Contract and Valuing Credit Enterprise of Henan Province” “Prominent Enterprise of Jiaozuo”.
2. Good products
1) High level, advanced manufacturing and R&D base
Lochamp establishes two new products test bases. All new products have to go through over-loaded production to ensure 100% quality before launching to the market.
2) Great produce
To ensure the refined products, Lochamp production all use CNC laser cutting, CNC machining center, automatic submerged arc welding machine, NC flames cutting, NC shearing machine, sand blasting and baking varnish equipment.
3) Advanced spare parts
All key equipment like motor, reducer and bearing parts are equipped from first-class brand.
4) Obtained quality system certificate of ISO9001 and CE certification.
3 Good service
Lochamp has a professional installation team with skilled training. All after-sales engineers stand by 24 hours, who will respond immediately for customers’ requirements.
Lochamp products have been successfully applied to the world's leading feed production enterprises as follows:
International project
Comprehensive Feed Project
/feed-machinery/feed-machinery-fan/
