Specifications
Steam Vortex flowmeter1gas vortex flow meter
2.for liquid gas steam

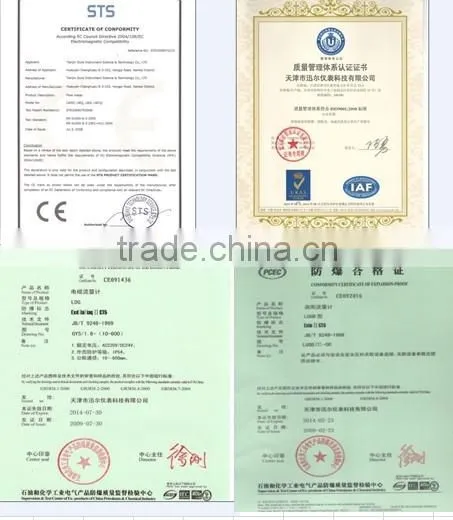

3. Iso Control, CE certification
4.Owen factory
Diameter:15-300mm
Accuracy:
Liquid: ±1.0% of reading
Gas: ±1.0% of reading
Vapor Stream: ±1.5% of reading
Materials:
Housing: Standard - 304 Stainless Steel
Shedder Bar: 1Cr18Ni9Ti
Converter housing and case cover: Aluminum Alloy
Output Signal: (Where applicable)
Sensor: Pulse signal (Low Level: ≤1V; High Level: ≥6V)
Transmitter: 4 to 20 mA DC current signal
Signal Transmission Distance: ≤500 m
Electrical Connections: ISO M20×1.5 Female
Explosion Proof Level:
Standard: ExdIIBT6
Protection Level: IP65
Vibration: ≤1.0 g
Ambient:
Temperature: -10°C to +55°C
Pressure: 86 to 106 KPa
Relative Humidity: 5% to 90%
Power Supply:
Sensor: +12V DC (Optional: +24V DC)
Transmitter: +24V DC
Field Display Type: Integral 3.2V Lithium Battery or +24V DC
Fluid Temperature and Pressure:
Temperature: Standard: -20°C to +70°C
Optional: -20°C to +250°C; -20°C to +350°
Pressure: Fluid pressure should be limited according to flange rating.
