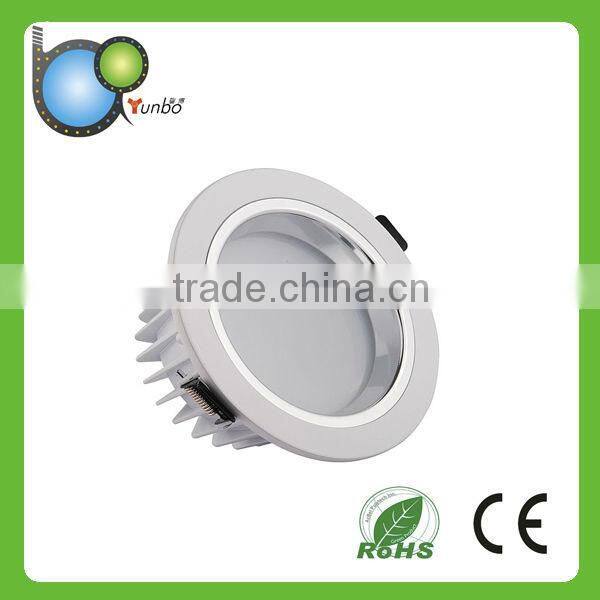

Energy Saving COB 7W LED Downlight

Specifications

Energy Saving COB 7W LED Downlight
1.High quality SMD 5630
2 power factor up to 0.9
3.No flicker,energy saving

 Energy Saving COB 7W LED Downlight







Products Feature:



 Led driver:constant current output and safety isolating.Two years warranty
 Led components SMD5630 is packaged by one of professional factory in Shezhen.
High quality diffuser plate make light even.
 Heat dissiapation body adopt ADC12 Al and Al is over 82%;better heat dissipation capability



Specification:



Item	Symbol	2.5inches Down Light	4inches Down Light		5.5inches Down Light		8inches Down Light
Model No.	/	YB-TD2.5-03	YB-TD04-07	YB-TD04-09	YB-TD5.5-15	YB-TD5.5-18	YB-TD08-24	YB-TD08-32
Rated Power	W	3W	7W	9W	15W	18W	24W	32W
Luminous Flux	LM	220Lm	580Lm	725Lm	900Lm	1300Lm	1800Lm	2300Lm
Product Dimension	mm	Φ90*H55	Φ130*H62		Φ180*H70		Φ230*H86
Cut-out	mm	Φ77	Φ113		Φ163		Φ205
Power Factor	PF	PF>0.9
Input Voltage	V	AC85-265V
Color Temperature	TC (K)	WW:2500-4000K,         NW:4000-5000K         PW:5000-6000K      CW: >6000K
Color Index(Ra)	Ra	Ra>70 OR Ra >80
Life Time	Hours	3 years
Operating Temperature	°C	-25°C~+55°C

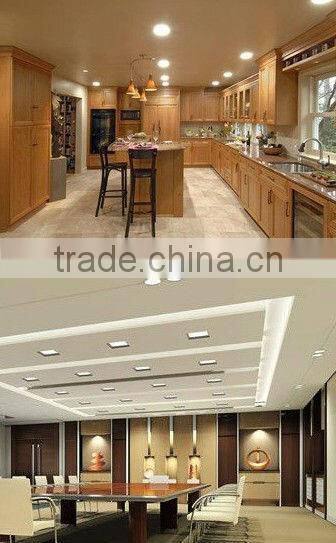

Applications:



well suited for commercial and residential application,

For instance:bathroom, boats,villa,restaurant,hotel,hall,meeting,room,office,living room,

exhibition room, gallery, museum, reading room, bar, bathroom, school, bedroom, buildings, underground parking garage, supermarket, shopping mall etc.
